Description

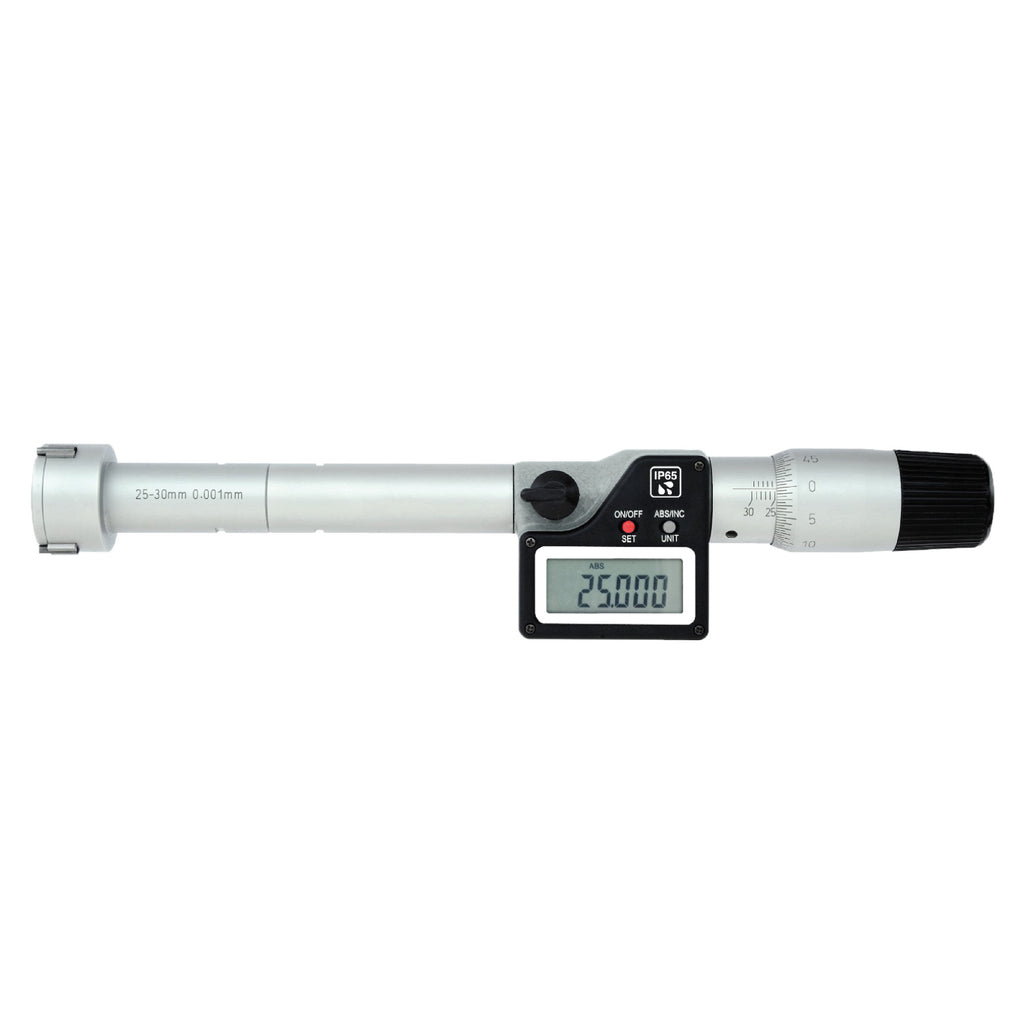

Digital three-point inside micrometers for measuring the inside diameter of cylinders or tubes. This set covers a larger measuring range.
The 3-point measuring principle records bores at three locations, enabling particularly accurate and repeatable measurements. The robust construction ensures a long service life, even with regular use in everyday workshop use. Quick and easy reading thanks to the digital display.
- Accuracy according to DIN 863
- suitable for blind holes and through holes
- Protection class IP65
- Carbide measuring surfaces
- Reading parts matt chrome-plated
- Emotional ratchet
- mm/inch, Auto on/off, key lock for zero position
- Preset function
- Absolute measuring mode: Zero position is retained after switching on
- with adjustment ring(s)
- Delivery in an aluminum case
✅ Exact results – thanks to three symmetrically arranged measuring surfaces for perfect self-centering
✅ High measuring reliability – measuring errors due to tilting are reliably excluded
✅ Versatile – for precise control of cylinder bores, fits and inner diameters
✅ Robust & durable – high-quality materials for lasting accuracy
Sets:
| Measuring range (mm) |
Reading (mm) |
accuracy (mm) |
Micrometers (Measuring range mm) |
Adjustment rings (mm) |
extension |
| 6-12 | 0.001 | 0.004 | 6-8 8-10 10-12 |
6.0 8.0 10.0 |
1x 100 mm |
| 12-20 | 0.001 | 0.005 | 12-16 16-20 |
16.0 | 1x 150 mm |
| 20-50 | 0.001 | 0.005 | 20-25 25-30 30-40 40-50 |
25.0 40.0 |
2x 150 mm |
| 50-100 | 0.001 | 0.005 | 50-63 62-75 75-88 87-100 |
62.0 87.0 |
1x 150 mm |
Individual micrometers:
| Measuring range (mm) |
Reading (mm) |
accuracy (mm) |
A (mm) |
L (mm) |
Adjustment ring (mm) |
| 6-8 | 0.001 | 0.004 | 1.4 | 55 | 6.0 |
| 8-10 | 0.001 | 0.004 | 1.4 | 55 | 8.0 |
| 10-12 | 0.001 | 0.004 | 1.4 | 55 | 10.0 |
| 12-16 | 0.001 | 0.005 | 0.5 | 80 | 16.0 |
| 16-20 | 0.001 | 0.005 | 0.5 | 80 | 16.0 |
| 20-25 | 0.001 | 0.005 | 0.5 | 90 | 25.0 |
| 25-30 | 0.001 | 0.005 | 0.5 | 90 | 25.0 |
| 30-40 | 0.001 | 0.005 | 0.5 | 97 | 40.0 |
| 40-50 | 0.001 | 0.005 | 0.5 | 97 | 40.0 |
| 50-63 | 0.001 | 0.005 | 0.5 | 115 | 62.0 |
| 62-75 | 0.001 | 0.005 | 0.5 | 115 | 62.0 |
| 75-88 | 0.001 | 0.005 | 0.5 | 115 | 87.0 |
| 88-100 | 0.001 | 0.005 | 0.5 | 115 | 87.0 |
