Description

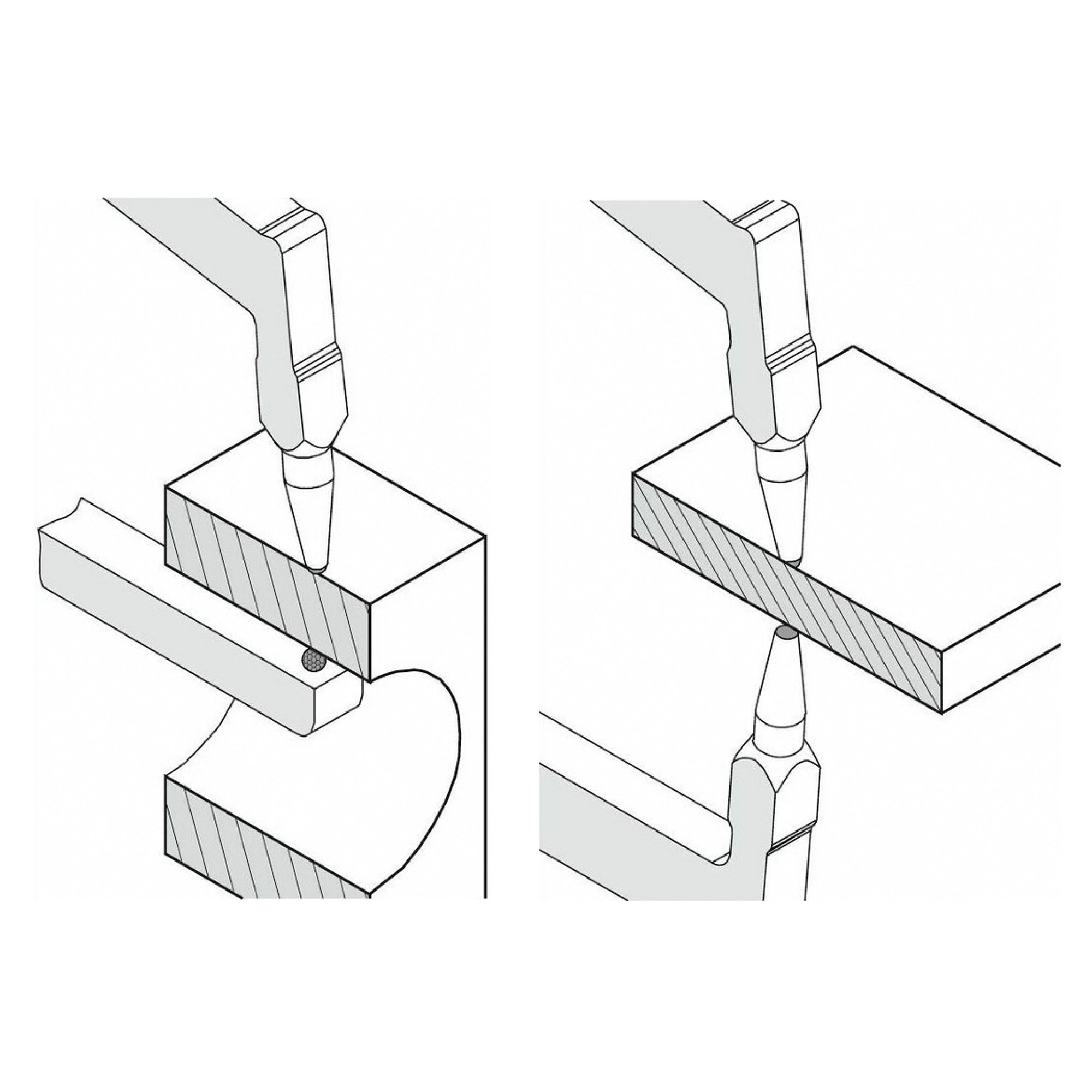

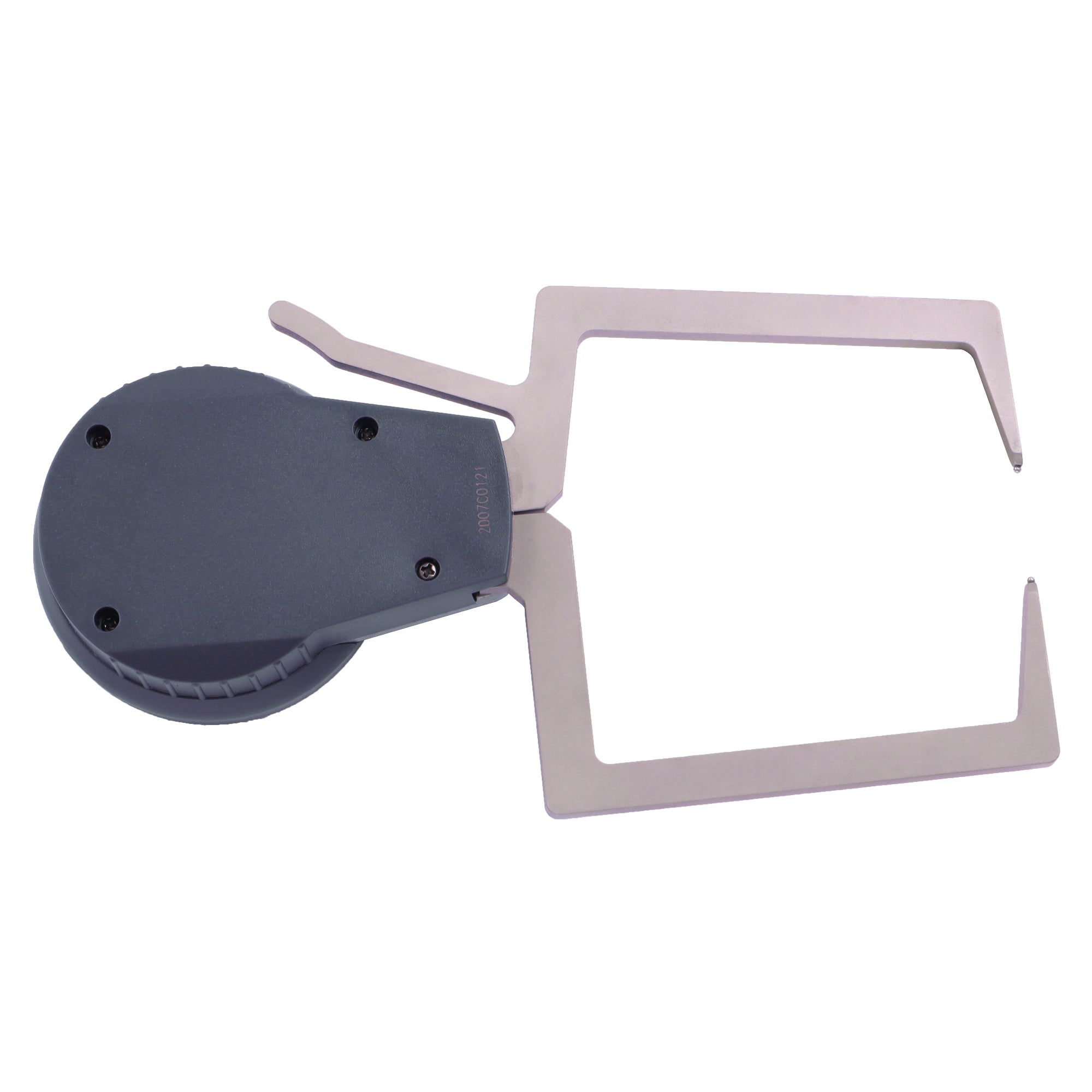

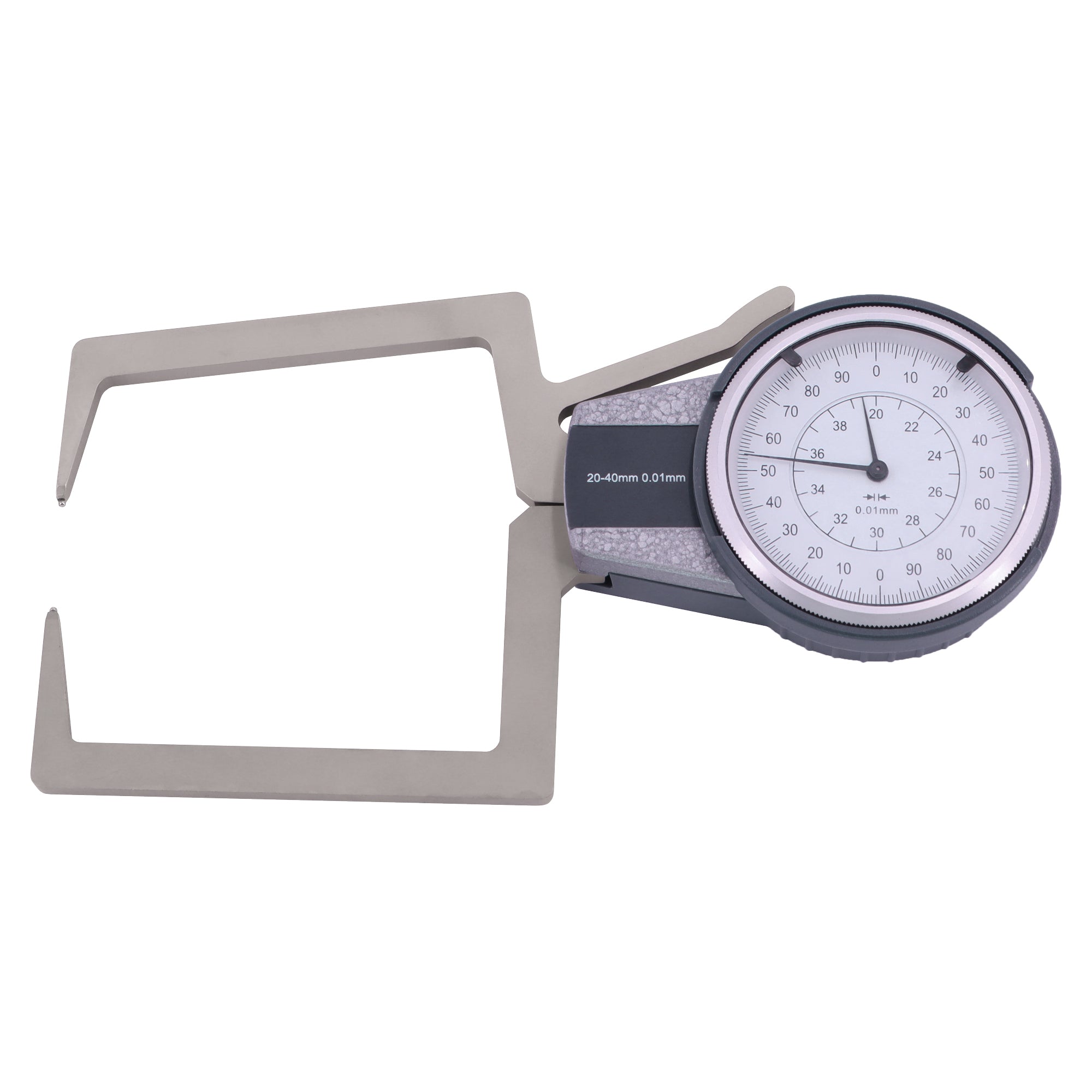

For quick and easy measurement of wall thicknesses, sheet metal, pipe walls, foils, etc. One fixed and one movable probe arm. The deflection of the movable probe arm is transmitted to the dial indicator, and the measurement result can be read directly.
- Reading 0.01 mm
- with carbide measuring ball supports

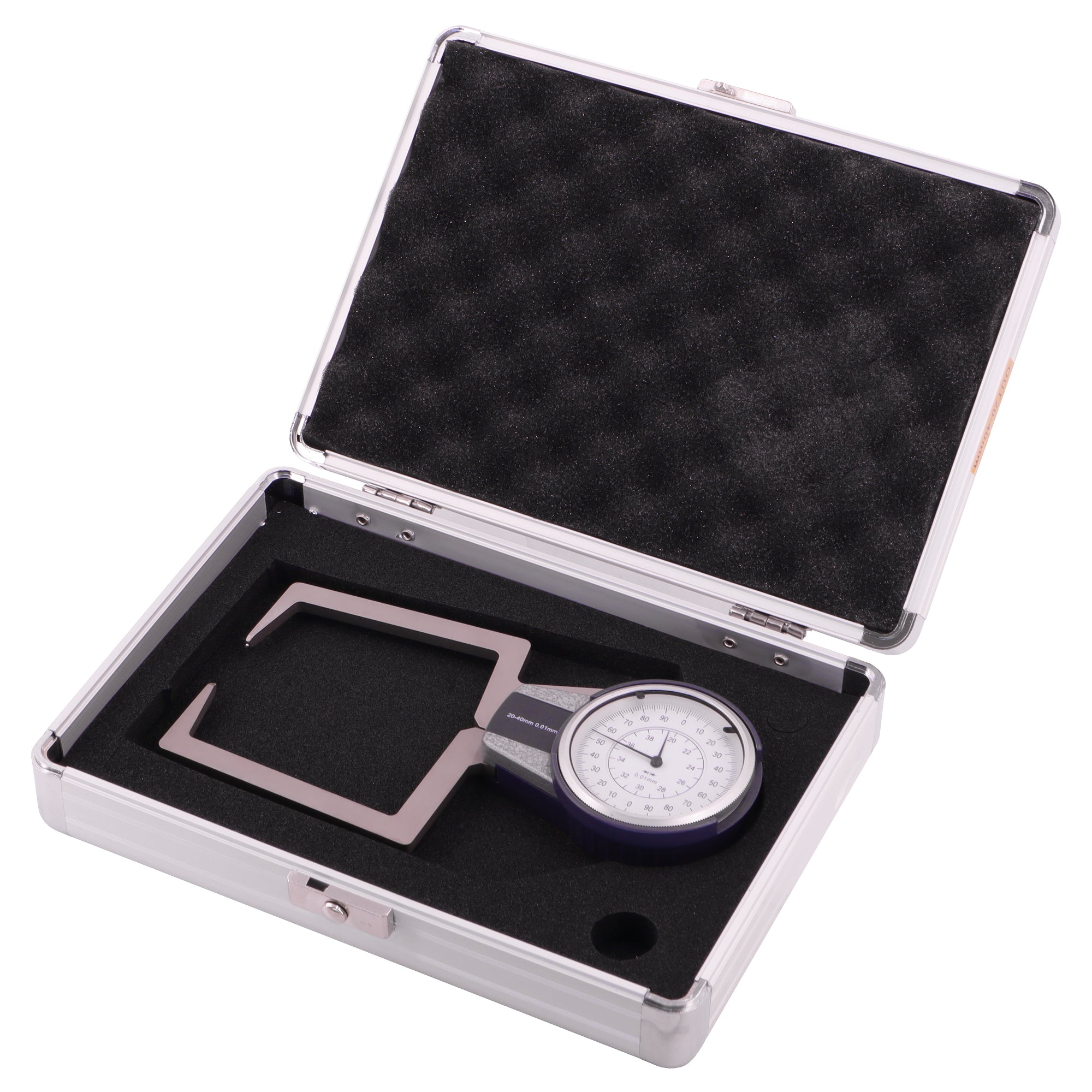

- including robust aluminum case
| Measuring range (mm) | max. measuring depth (mm) | Ø probe ball (mm) |
|---|---|---|
| 0 - 20 | 80 | 1.5 |
| 10 - 30 | 80 | 1.5 |
| 20 - 40 | 80 | 1.5 |
| 30 - 50 | 80 | 1.5 |
| 40 - 60 | 80 | 1.5 |
