Description
The ceramic surface offers exceptional hardness, wear resistance, and thermal stability, ensuring maximum accuracy and durability. Thanks to the smooth, non-porous surface, the table is also resistant to dirt and easy to clean. Perfect for use in laboratories, workshops, and manufacturing environments that require precise measurements and reliability.

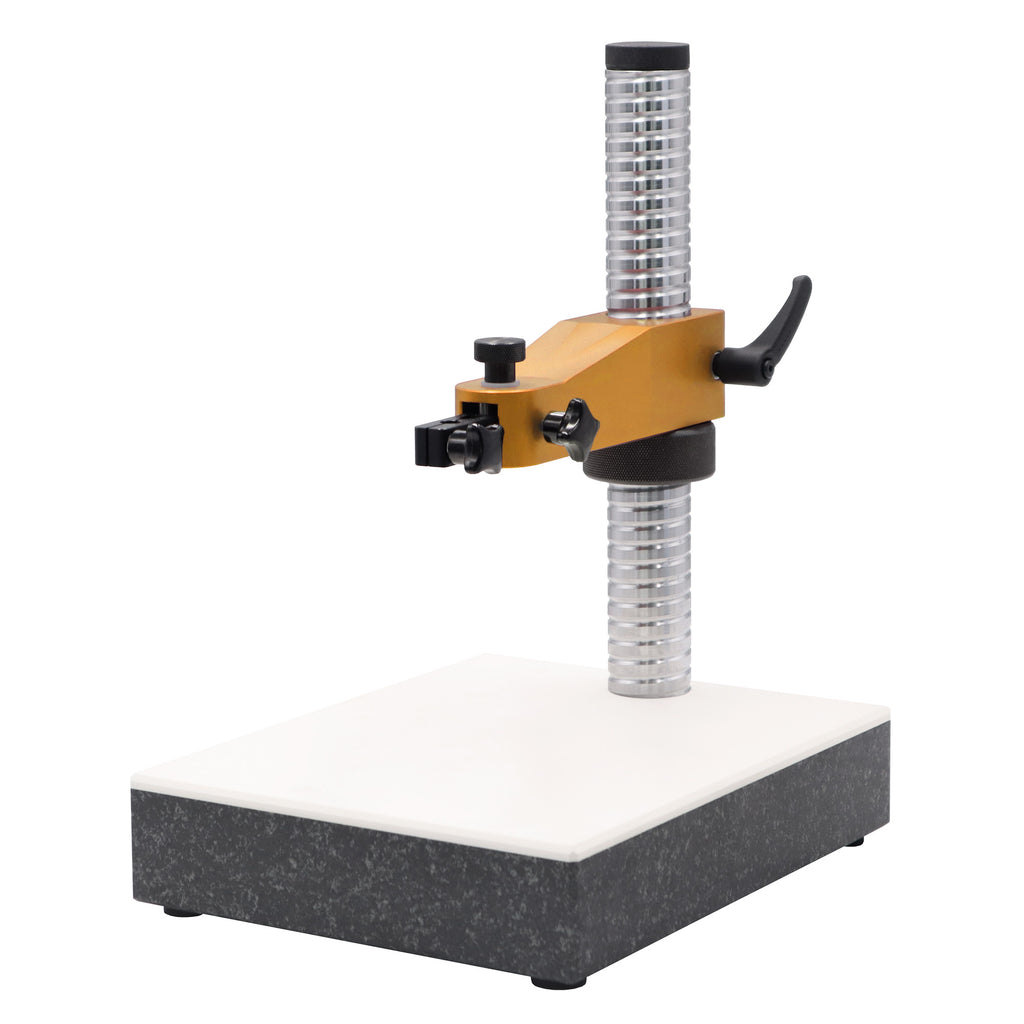

- Table size 250 x 200 x 50 mm
- Measuring area 200 x 200 mm
- Column made of chrome steel Ø 35 mm with steep thread
- Measuring plate made of hard stone with ceramic surface
- Accuracy according to DIN 876 Gen. 00
- ground and diamond lapped

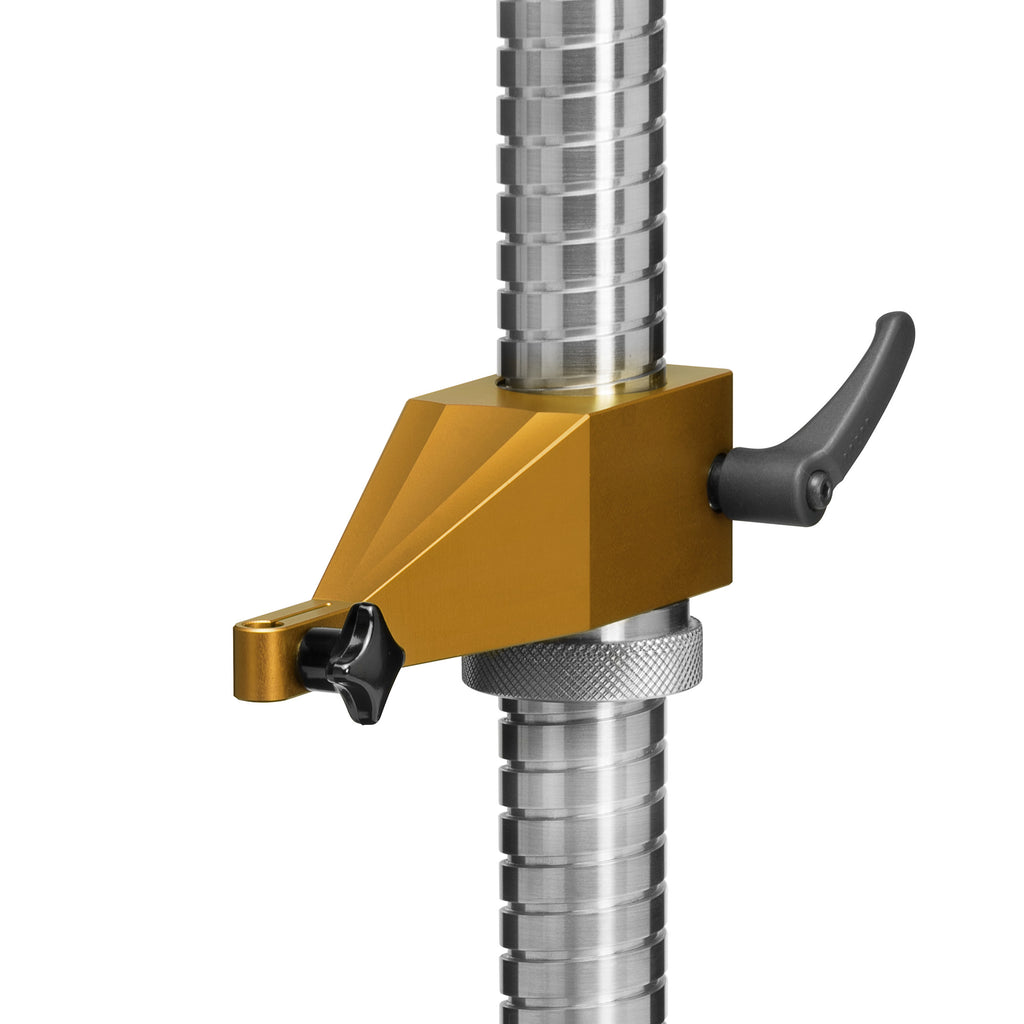

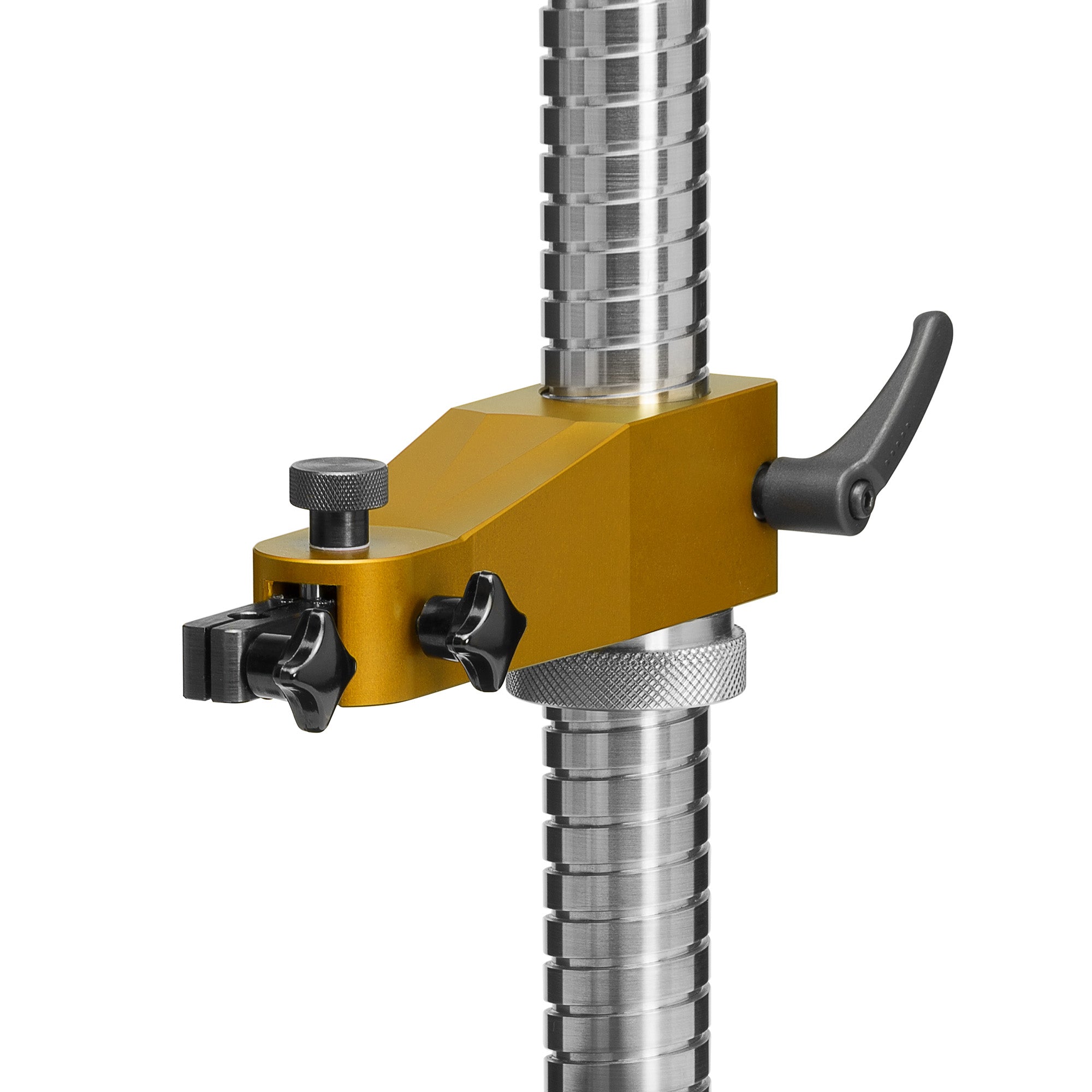

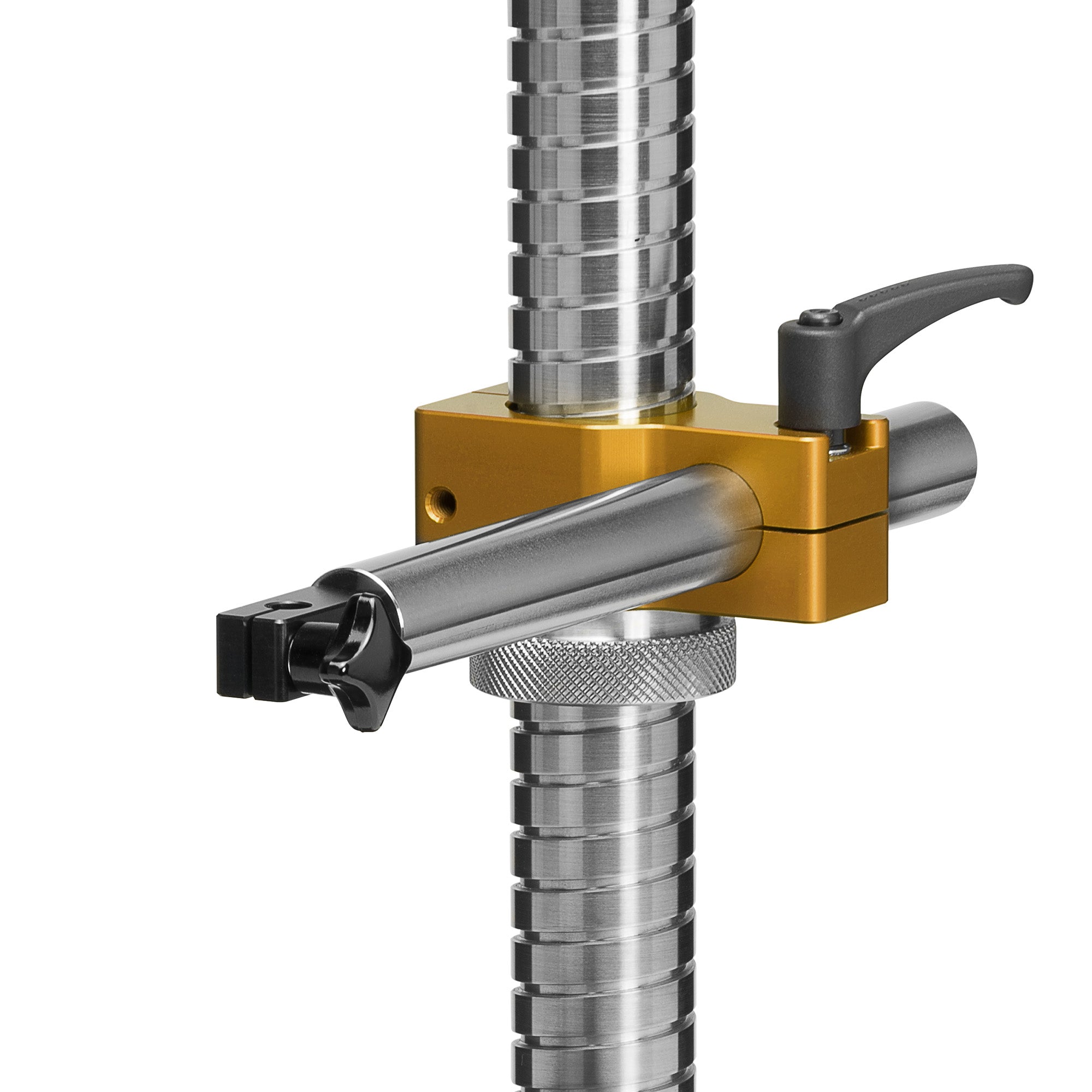

- Dial gauge holder Ø 8 mm
| type | Measuring height (mm) | Projection (mm) | Weight approx. (kg) |
| rigid | 210 | 115 mm | 10.5 |
| with fine adjustment | 210 | 130 mm | 16.6 |
| movable | 230 | 200 mm | 11.0 |
Our precision measuring tables are assembled in Germany.
The base is made of naturally aged, dark natural hard stone and is ideal as a base for assembly, inspection and laboratory applications.
