Description

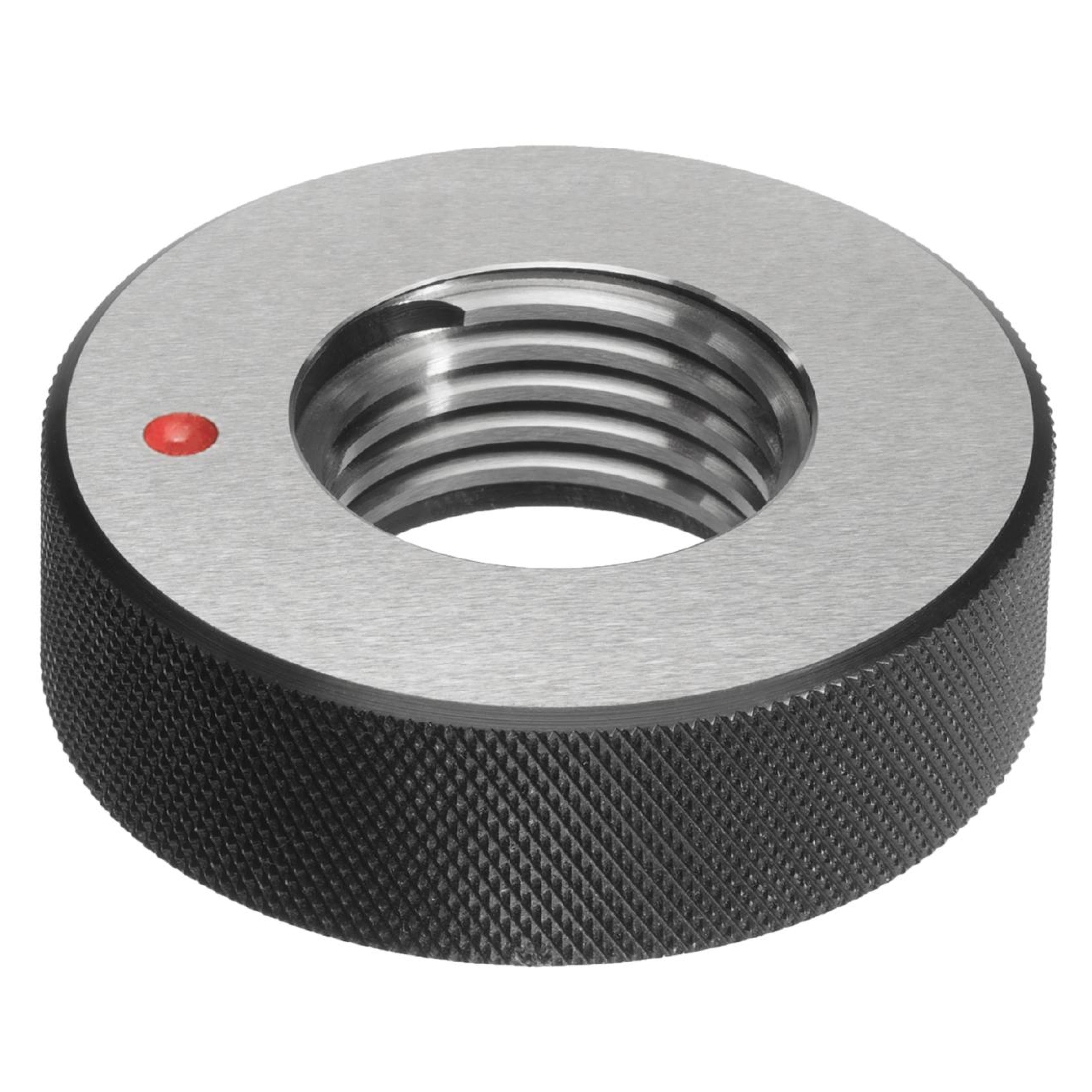

No-go thread ring gauges made of first-class gauge steel.
- Tolerance 6g
- Metric ISO fine thread, right DIN 13
- Gauge dimensions according to DIN ISO 1502
Application:

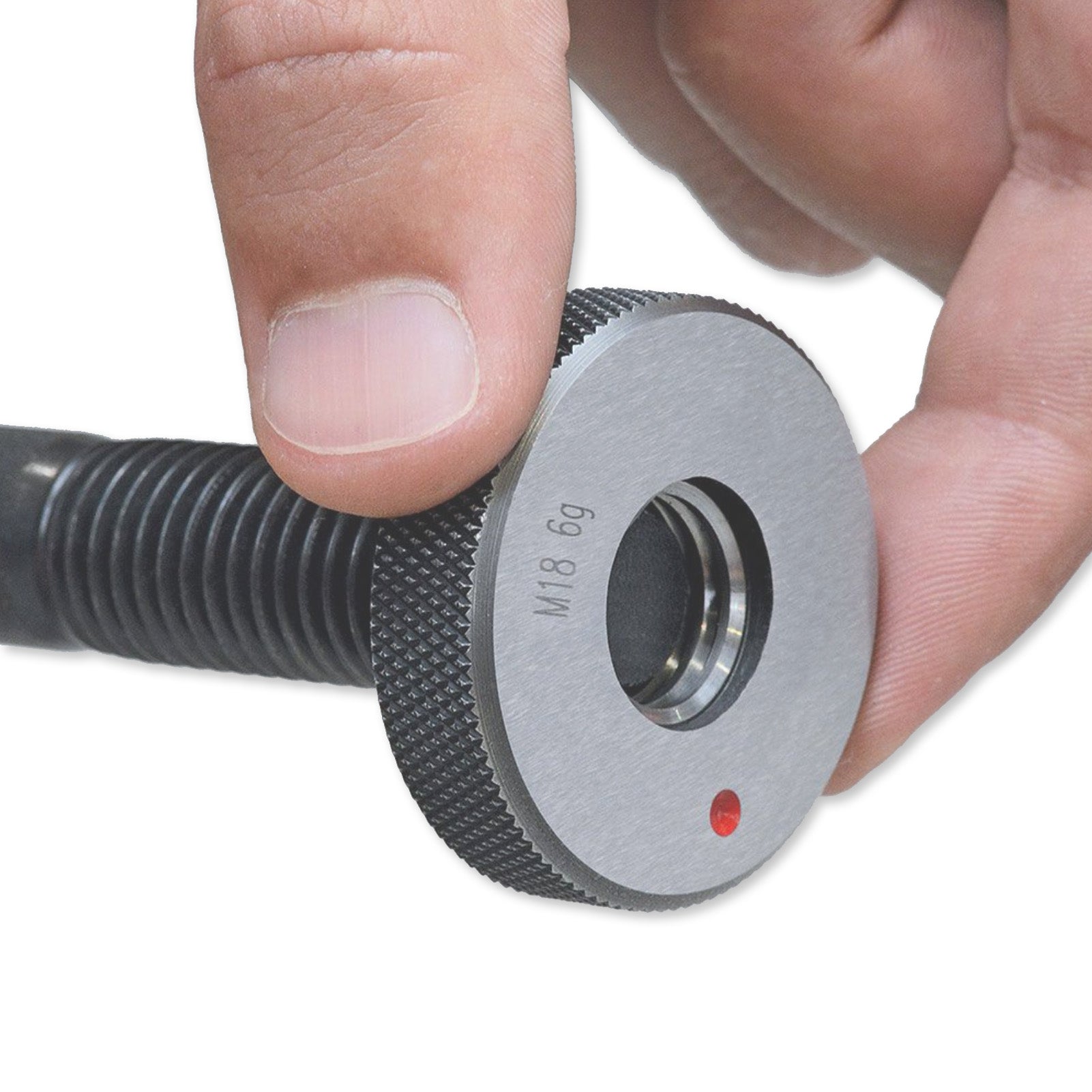

A no-go thread ring gauge should be able to be screwed onto the workpiece thread by hand without excessive force, but no more than two threads. If it can be screwed further, the thread does not meet the required tolerances (= no-go). No-go thread ring gauges are marked red for identification.
A reference temperature of 20°C applies to workpieces and gauges.
