Description

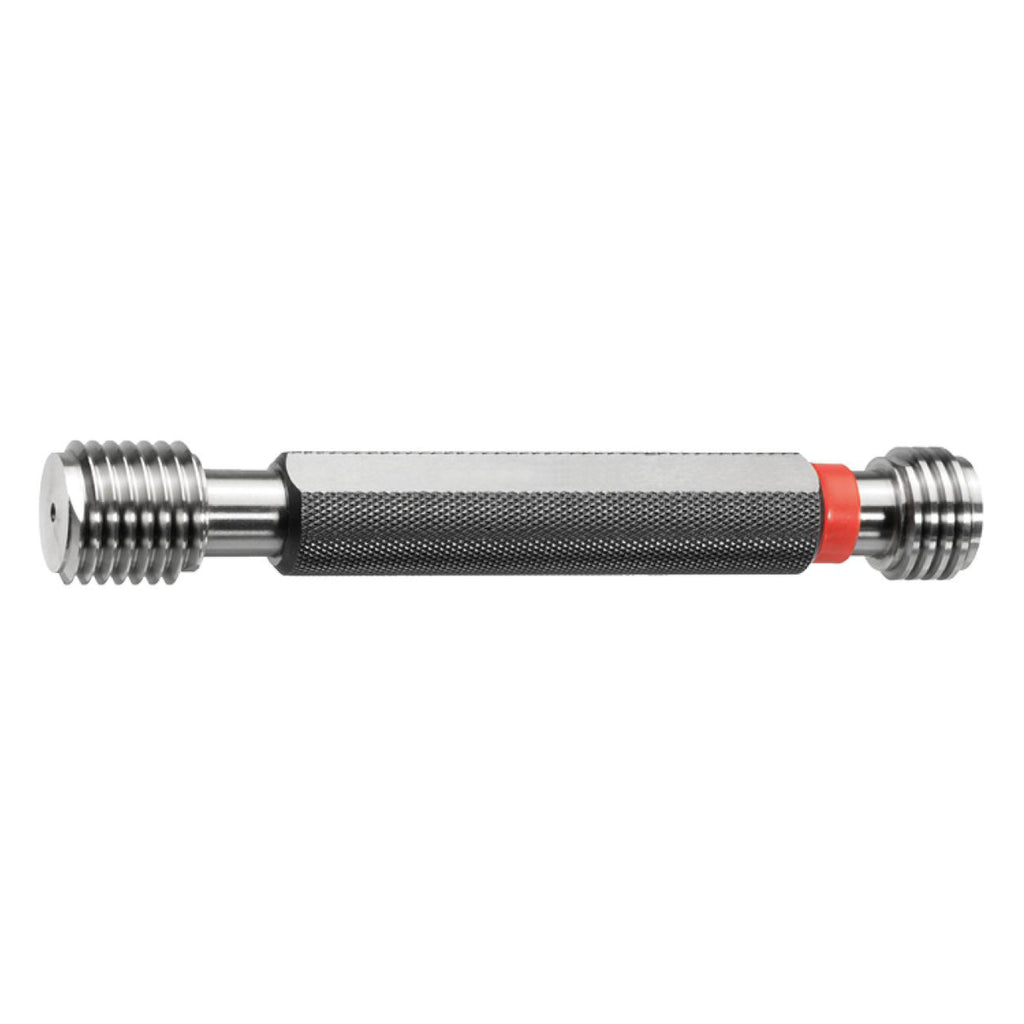

Thread plug gauges made of first-class gauge steel.
- Whitworth pipe thread, BS EN ISO 228
- divided into two parts (good/reject) from G 1 1/4
- Committee side marked in red
Application:
Thread limit plug gauges consist of a go side and a no-go side (marked by a red ring).
The "go" side must be able to be screwed into the workpiece thread by hand without excessive force. If this is not possible, the thread does not meet the requirements (→ reject).
The reject side must not be able to be screwed into the thread more than two turns by hand. If further screwing is possible, the thread also does not meet the required tolerances (→ reject).
A reference temperature of 20°C applies to workpieces and gauges.
