Description

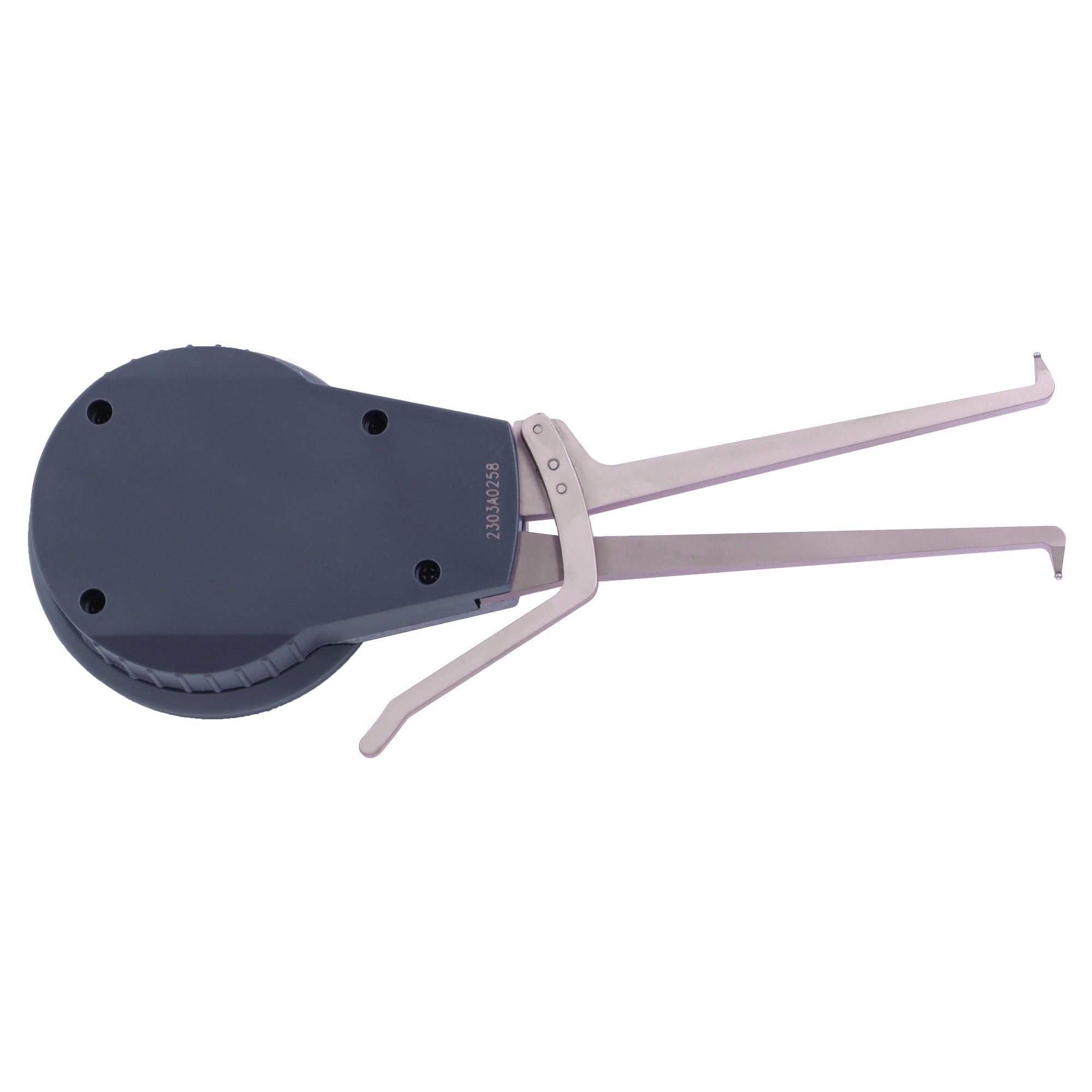

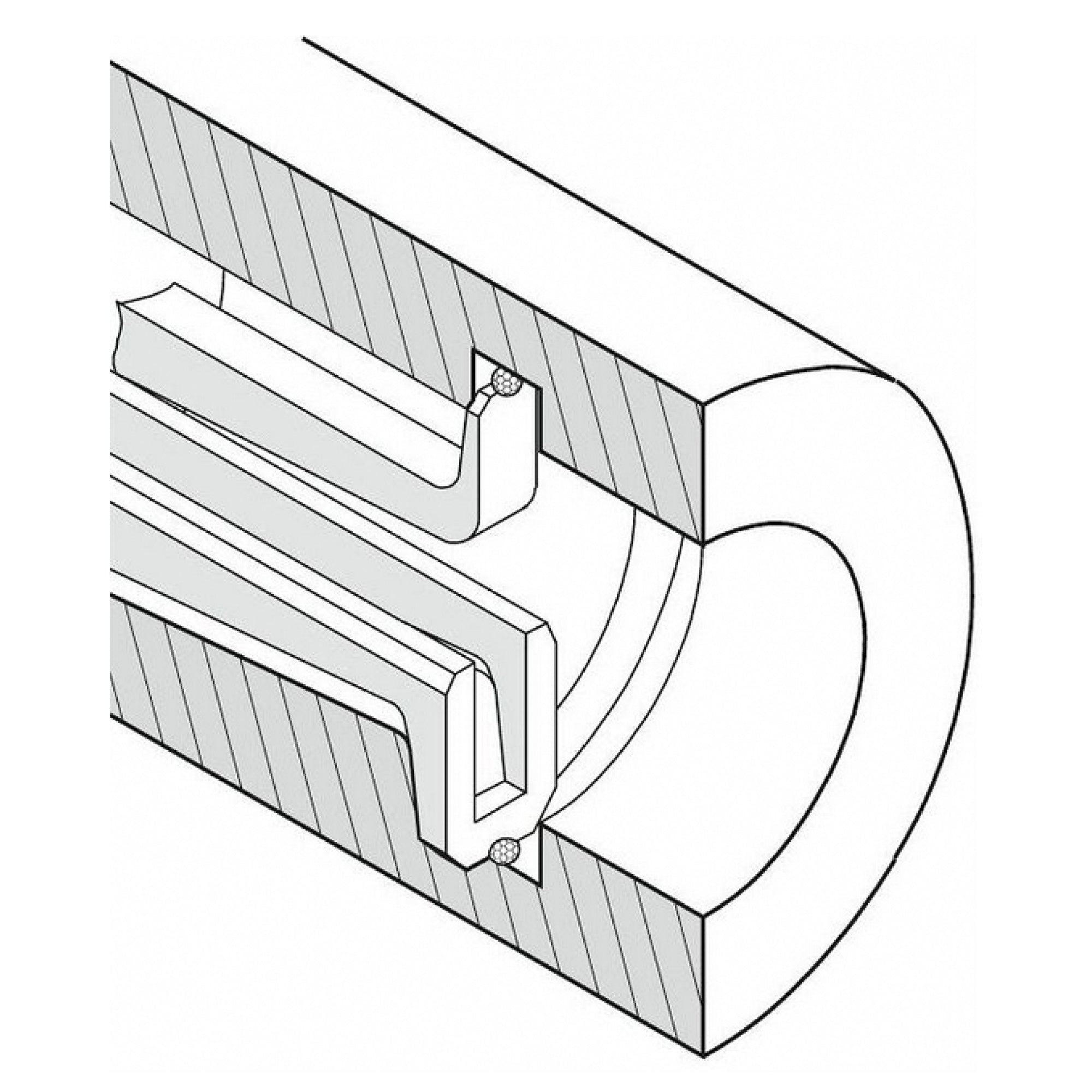

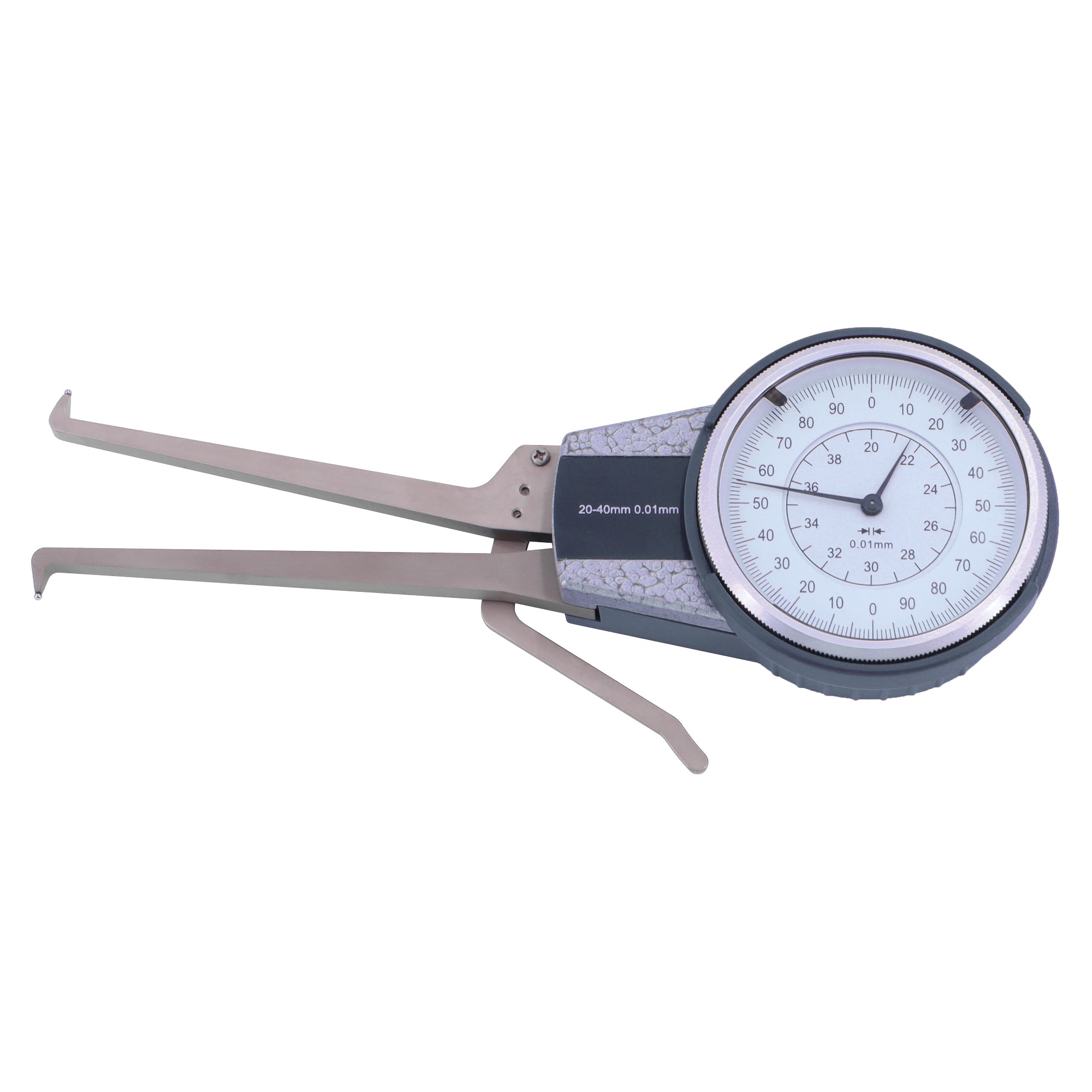

For quick and easy measurement of bores, internal grooves, etc. One fixed and one movable probe arm. The deflection of the movable probe arm is transmitted to the dial indicator, allowing the measurement result to be read directly.
- Reading 0.01 mm
- with carbide measuring ball supports

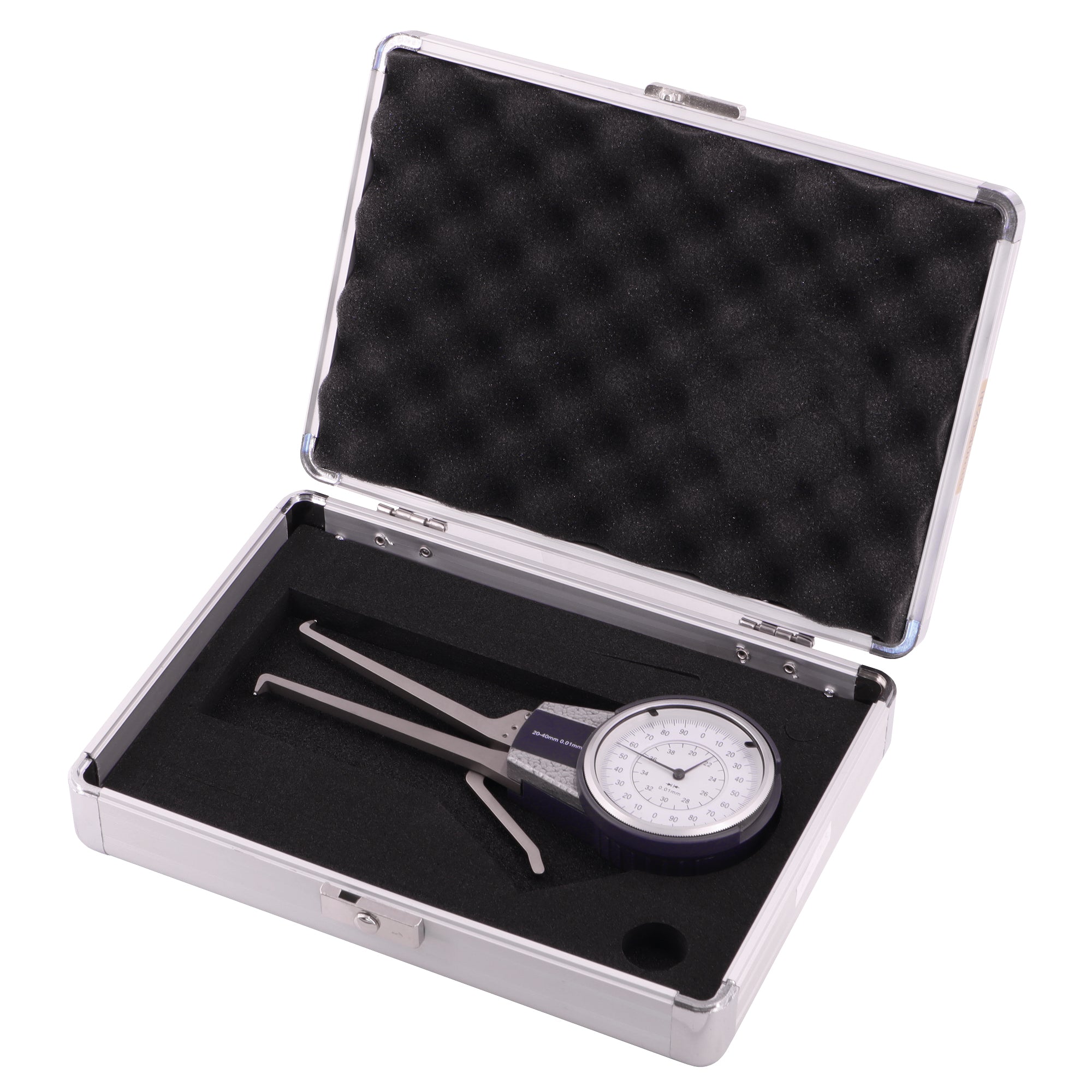

- including robust aluminum case
| Measuring range (mm) | max. measuring depth (mm) | Ø probe ball (mm) |
|---|---|---|
| 10 - 30 | 55 | 1.5 |
| 20 - 40 | 80 | 1.5 |
| 30 - 50 | 80 | 1.5 |
| 40 - 60 | 80 | 1.5 |
