Description

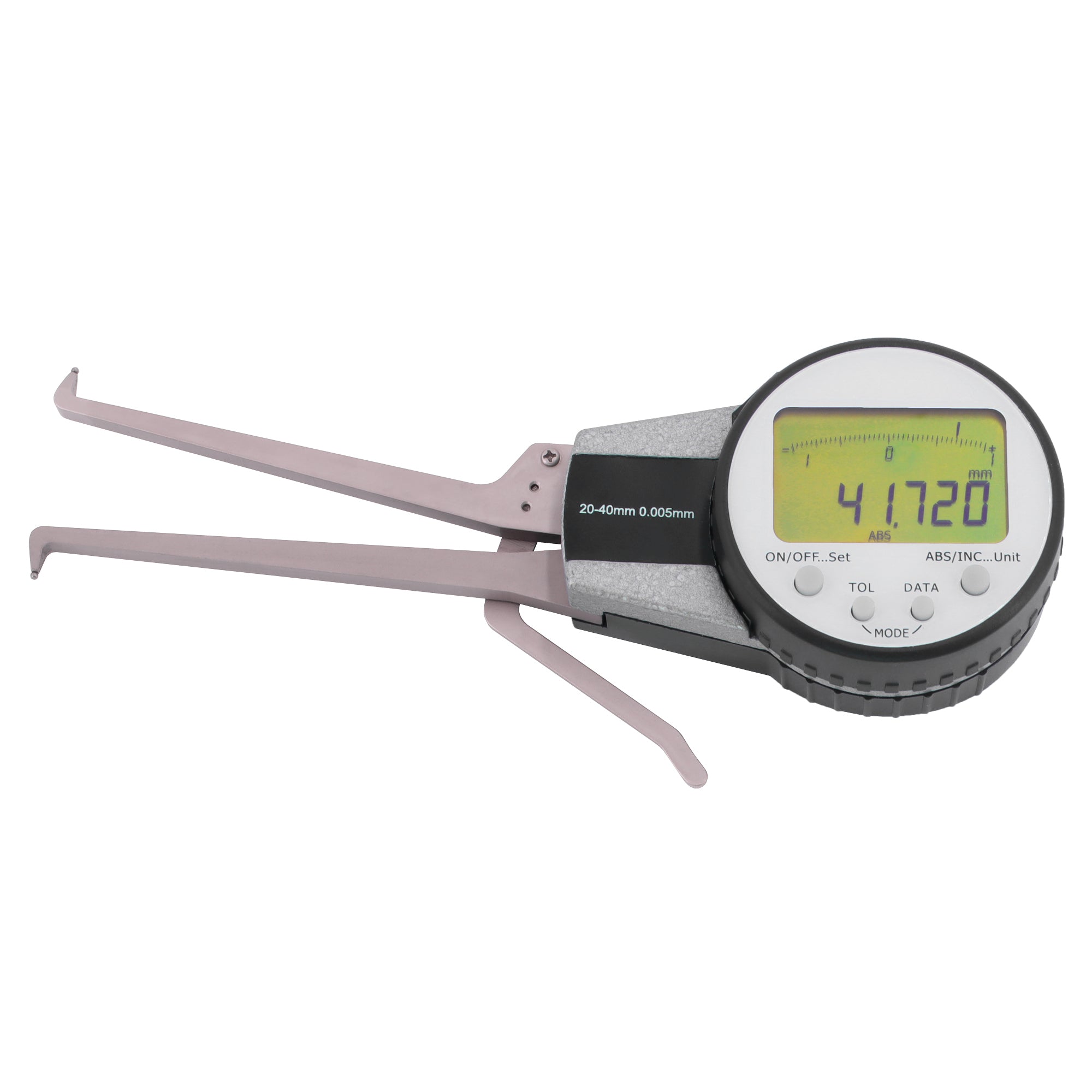

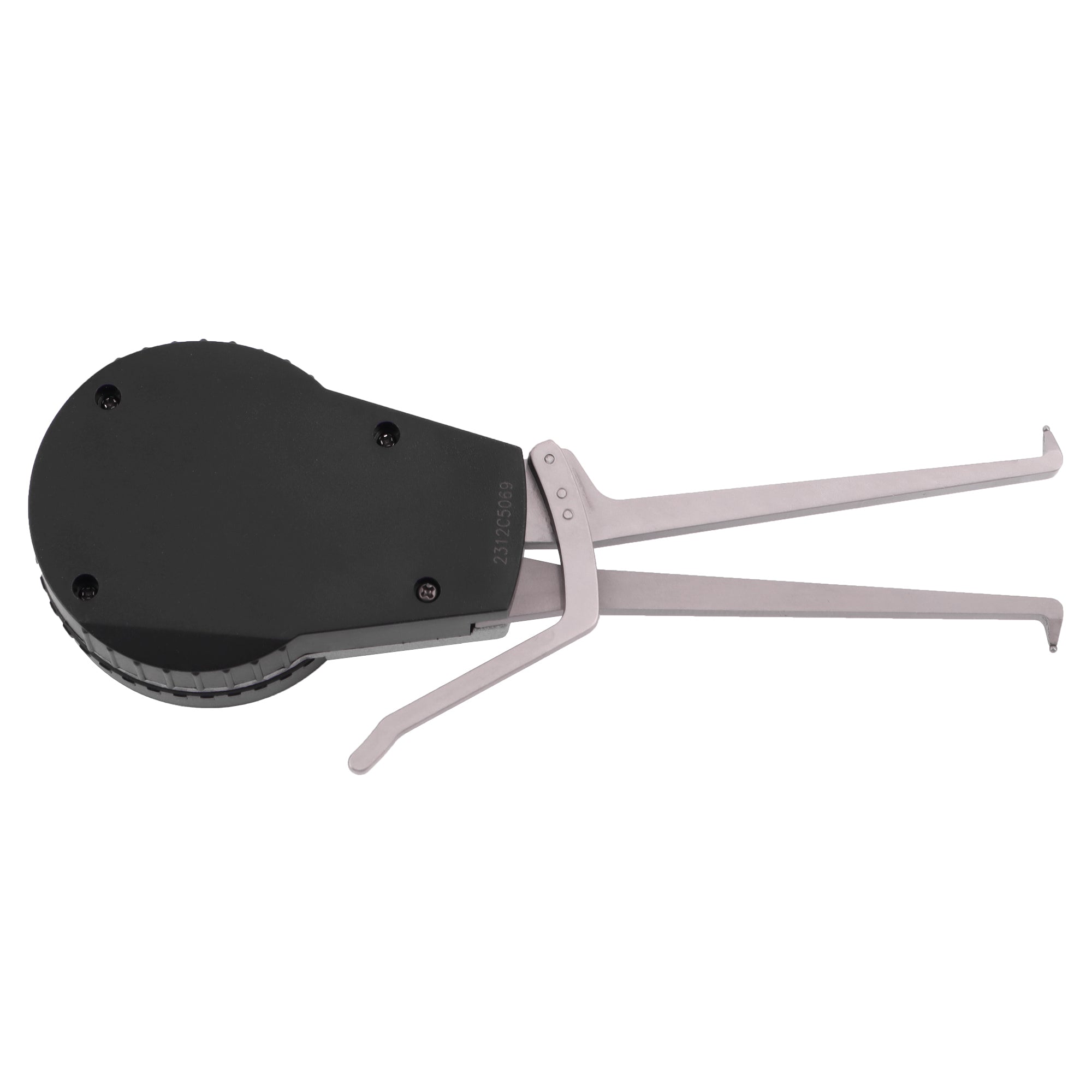

For quick and easy measurement of bores, internal grooves, etc. One fixed and one movable probe arm. Digital display for quick and easy reading.
- Reading 0.005 mm
- with carbide measuring ball supports
- large display with 270° rotation
- Absolute and relative measurement
- Switching mm/inch
- Tolerance function
- Conversion of numerical step value

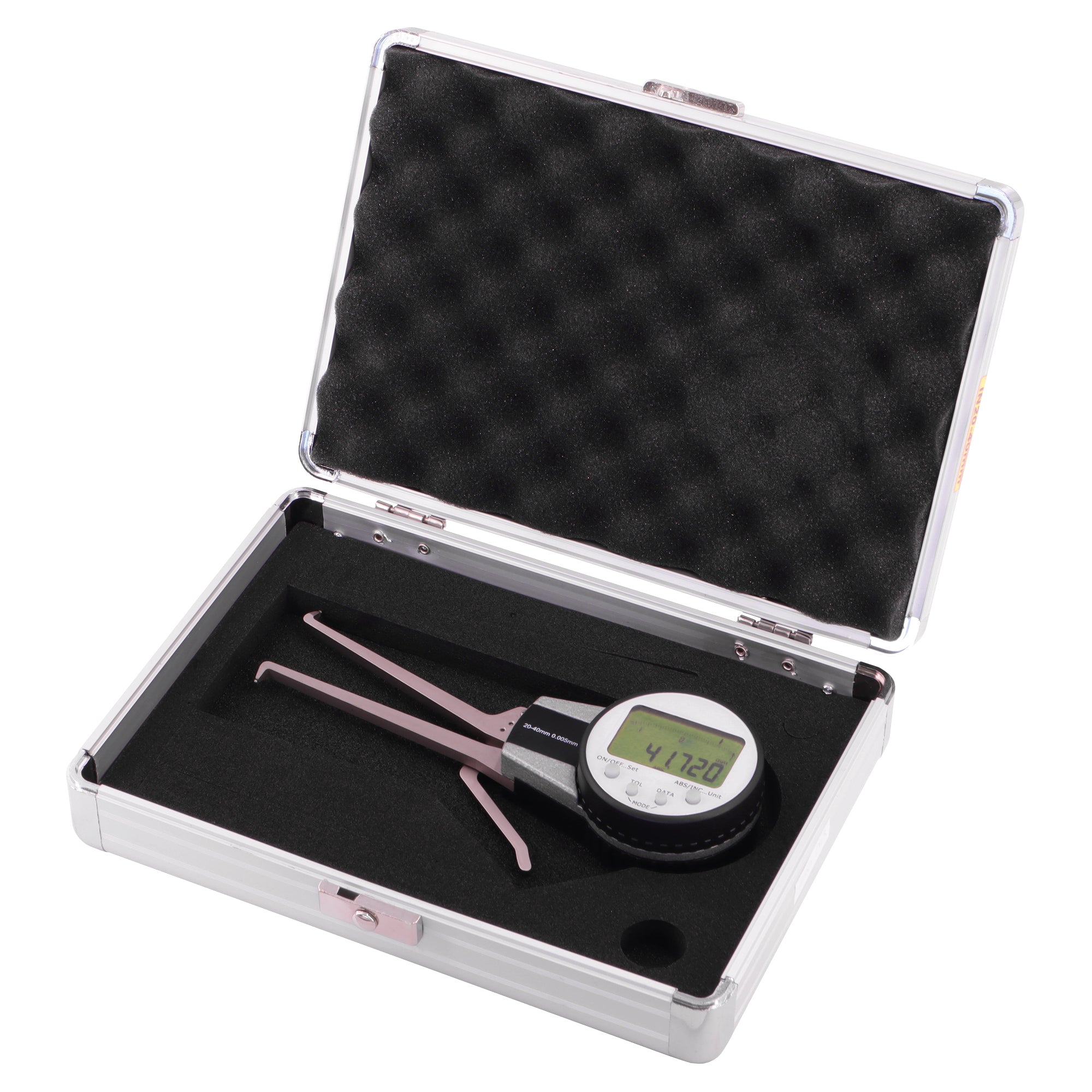

- including robust aluminum case
| Measuring range (mm) | max. measuring depth (mm) | Ø probe ball (mm) |
|---|---|---|
| 10 - 30 | 55 | 1.5 |
| 20 - 40 | 80 | 1.5 |
| 30 - 50 | 80 | 1.5 |
| 40 - 60 | 80 | 1.5 |
