Description
Precision dial indicator with a precision gear mechanism for high-resolution readings. The dial indicator features a particularly sensitive measuring mechanism and minimized lateral play of the measuring pin thanks to its precise fit into the shaft. All pinions of the measuring mechanism are mounted in precision perforated blocks. A metal lifting sleeve facilitates direct removal of the measuring pin and reduces the risk of dirt ingress.
- Scale division value 0.001 mm
- Measuring range 5 mm
- Pointer revolution ≙ 0.2 mm
- Outer ring diameter 58 mm
- Clamping shaft Ø 8h6
- Design according to DIN EN ISO 463 / factory standard 0.0500.9.0001
- Initial measuring force 1.5 N ± 20%
- adjustable tolerance marks
- robust metal housing
- interchangeable measuring probe according to DIN EN ISO 463

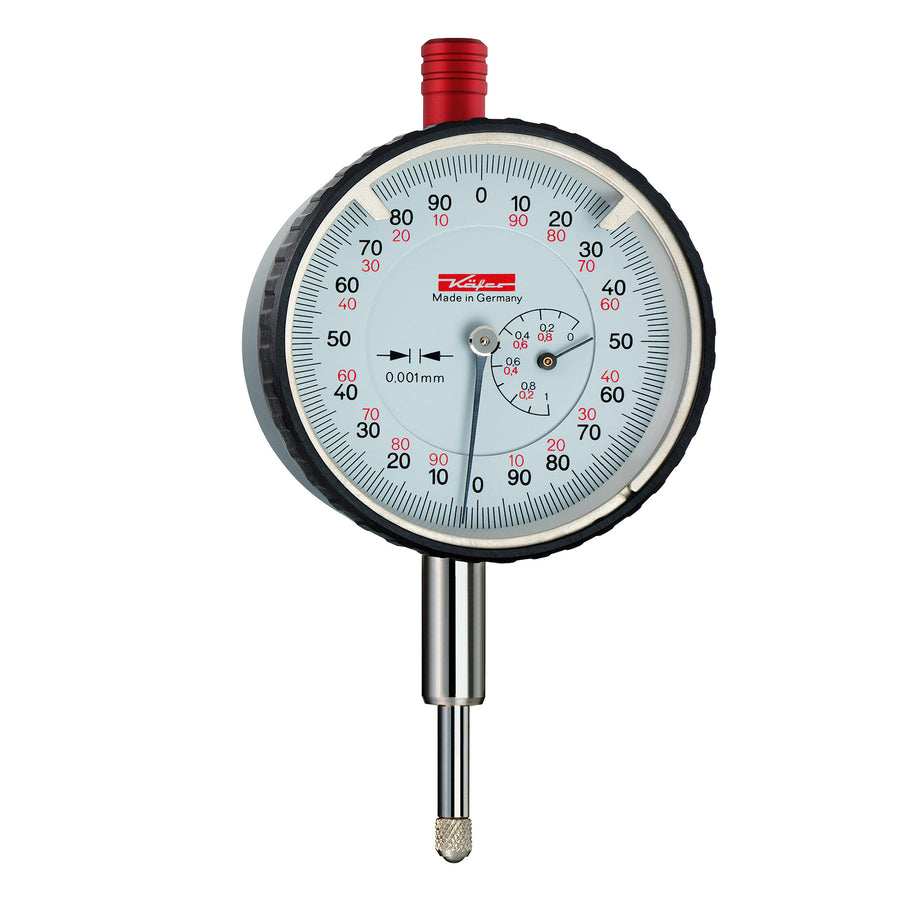

- (Image shows FM 1000 T)
The following applies to all Käfer dial gauges:
- All dial gauges are subjected to an accuracy check using test equipment that is traceable to national or international standards
- Final inspection for the complete series with visual and mechanical function check
- Certificate of conformity with traceability to national reference standards free of charge in a case
- Carefully selected dial gauge parts and materials ensure long-term functionality
