Description

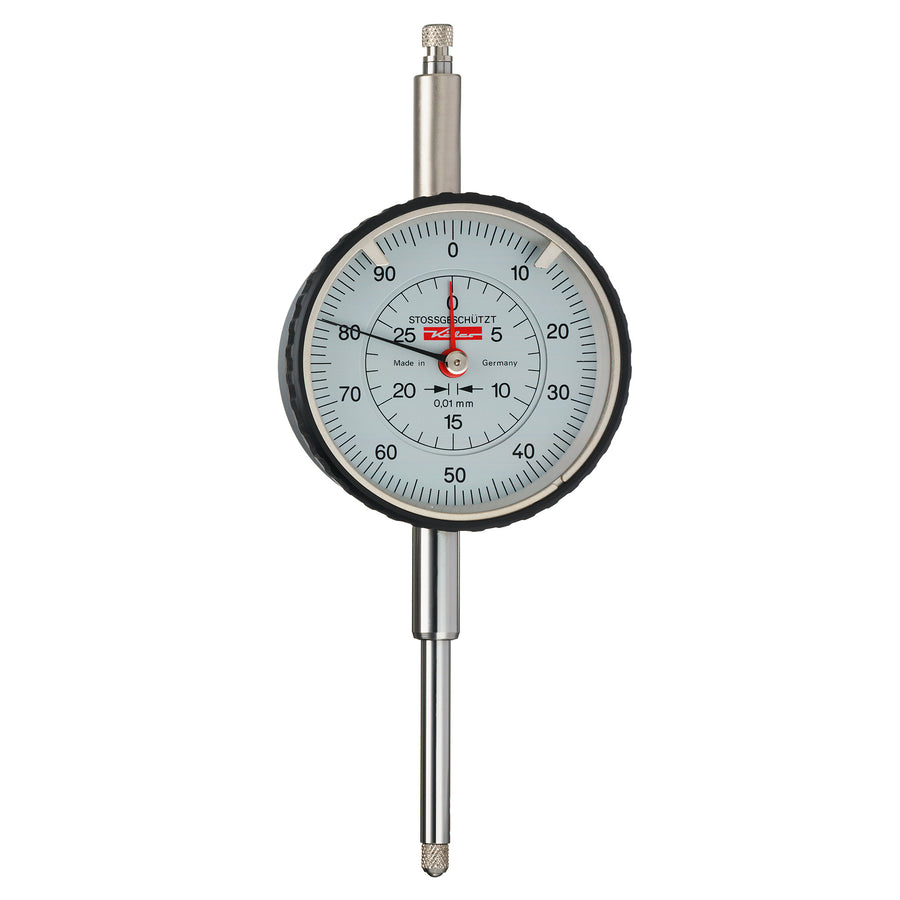

The 5 mm reinforced measuring pin diameter makes the M 2/30 S model particularly robust. High-quality shock protection provided by a sophisticated shock-absorbing wheel reduces the risk of damage to the gear teeth. This precision dial indicator is characterized by excellent measurement values and a long service life. The measuring pin and clamping shaft are made of rust- and acid-resistant steel.
- Scale division value 0.01 mm
- Measuring range 30 mm
- Pointer revolution ≙ 1 mm
- Outer ring diameter 58 mm
- Clamping shaft Ø 8h6
- Design according to DIN EN ISO 463 / factory standard 1.0200.9.0014
- Initial measuring force 0.8 N ± 20%
- adjustable tolerance marks
- robust metal housing
- interchangeable measuring probe according to DIN EN ISO 463
The following applies to all Käfer dial gauges:
- All dial gauges are subjected to an accuracy check using test equipment that is traceable to national or international standards
- Final inspection for the complete series with visual and mechanical function check
- Certificate of conformity with traceability to national reference standards free of charge in a case
- Carefully selected dial gauge parts and materials ensure long-term functionality
