Description
The concentrically arranged millimeter display allows for reliable and easy reading. The key bearings of the measuring mechanism are housed in precision perforated blocks. The M 2/50 S model is well protected against damage from impacts on the measuring pin by an effective shock-absorbing wheel. The measuring pin and clamping shaft are made of rust- and acid-resistant steel. The measuring pin is lapped.
- Scale division value 0.01 mm
- Measuring range 80 mm
- Pointer revolution ≙ 1 mm
- Outer ring diameter 58 mm
- Clamping shaft Ø 8h6
- Design according to DIN EN ISO 463 / factory standard 1.0200.9.0002
- Initial measuring force 1.5 N ± 20%
- adjustable tolerance marks
- robust metal housing
- interchangeable measuring probe according to DIN EN ISO 463

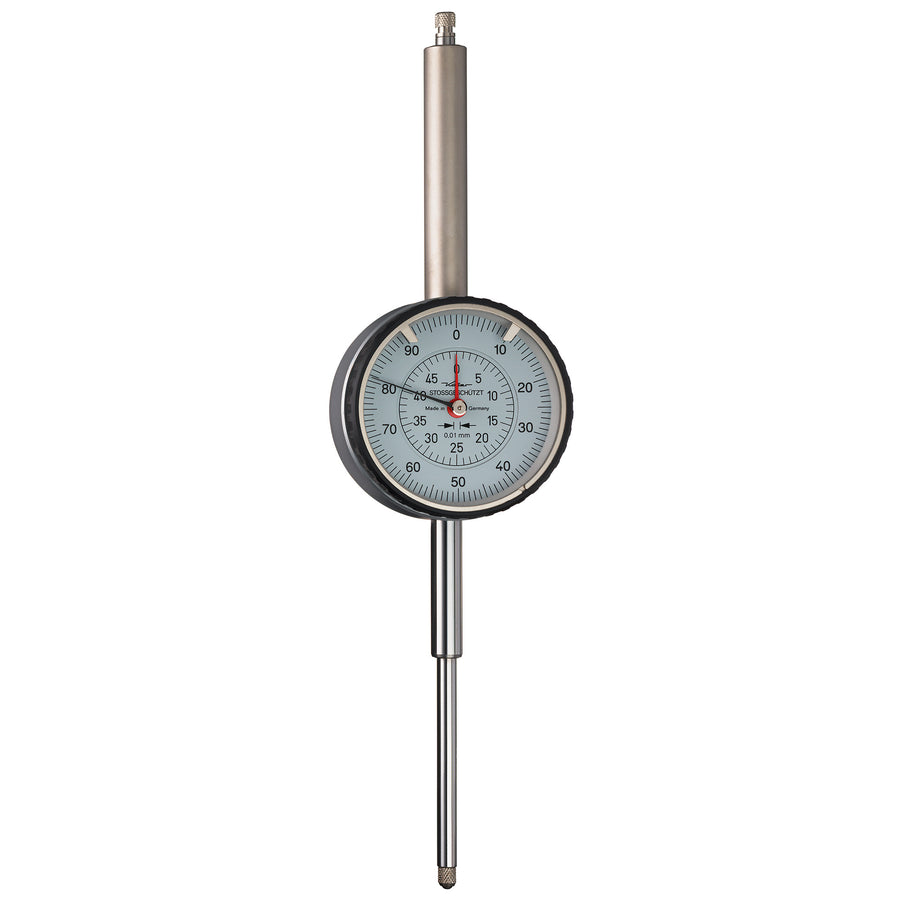

- (Figure 1 shows model M2/50 S)
The following applies to all Käfer dial gauges:
- All dial gauges are subjected to an accuracy check using test equipment that is traceable to national or international standards
- Final inspection for the complete series with visual and mechanical function check
- Certificate of conformity with traceability to national reference standards free of charge in a case
- Carefully selected dial gauge parts and materials ensure long-term functionality
