Description

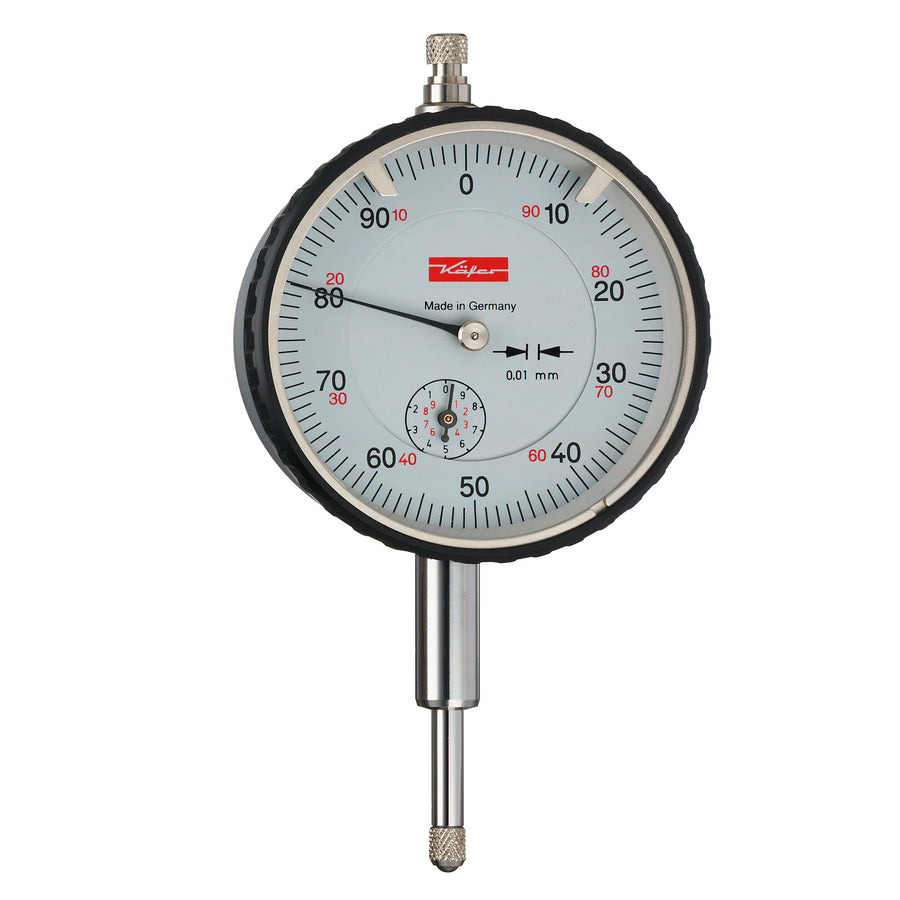

The sophisticated design, the use of high-quality parts and materials as well as the precision-engineered measuring mechanism guarantee the excellent quality of the M 2 T precision dial gauge.
All features comply with DIN 878 in conjunction with DIN EN ISO 463. This applies not only to the dimensions, but also to the metrological characteristics, the measuring force, and the measuring force reversal range. The measuring pin and clamping shaft are made of rust- and acid-resistant steel. The measuring pin is lapped.
- Scale division value 0.01 mm
- Measuring range 10 mm
- Pointer revolution ≙ 1 mm
- Outer ring diameter 58 mm
- Clamping shaft Ø 8h6
- Design according to DIN EN ISO 463 / DIN 878
- Initial measuring force 0.7 N ± 20%
- adjustable tolerance marks
- robust metal housing
- interchangeable measuring probe according to DIN EN ISO 463
The following applies to all Käfer dial gauges:
- All dial gauges are subjected to an accuracy check using test equipment that is traceable to national or international standards
- Final inspection for the complete series with visual and mechanical function check
- Certificate of conformity with traceability to national reference standards free of charge in a case
- Carefully selected dial gauge parts and materials ensure long-term functionality
