Description

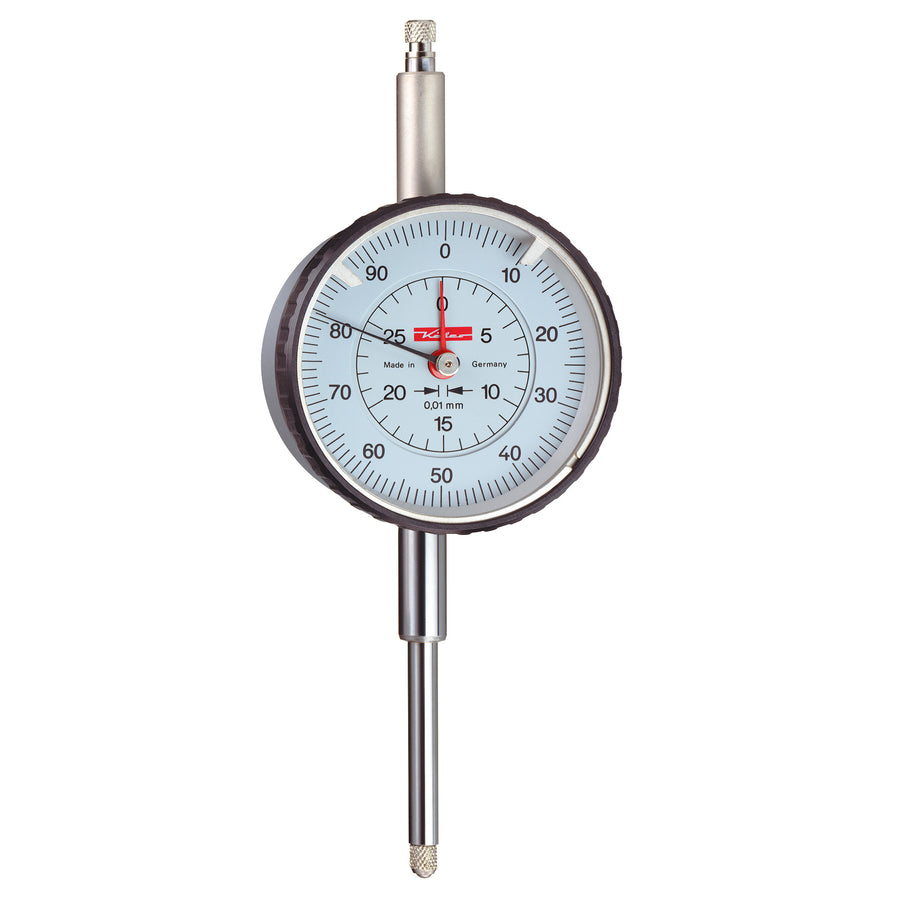

The concentrically arranged millimeter display allows for reliable and easy reading. The sophisticated design, the use of select parts and materials, and the sophisticated precision mechanism guarantee excellent metrological performance and a long service life of the M 2/30 T precision dial indicator.
The measuring mechanism's key bearings are housed in precision perforated blocks. The measuring pin and clamping shaft are made of rust- and acid-resistant steel.
- Scale division value 0.01 mm
- Measuring range 10 mm
- Pointer revolution ≙ 1 mm
- Outer ring diameter 58 mm
- Clamping shaft Ø 8h6
- Design according to DIN EN ISO 463 / factory standard 1.0200.9.0014
- Initial measuring force 0.8 N ± 20%
- adjustable tolerance marks
- robust metal housing
- interchangeable measuring probe according to DIN EN ISO 463
The following applies to all Käfer dial gauges:
- All dial gauges are subjected to an accuracy check using test equipment that is traceable to national or international standards
- Final inspection for the complete series with visual and mechanical function check
- Certificate of conformity with traceability to national reference standards free of charge in a case
- Carefully selected dial gauge parts and materials ensure long-term functionality
