Description

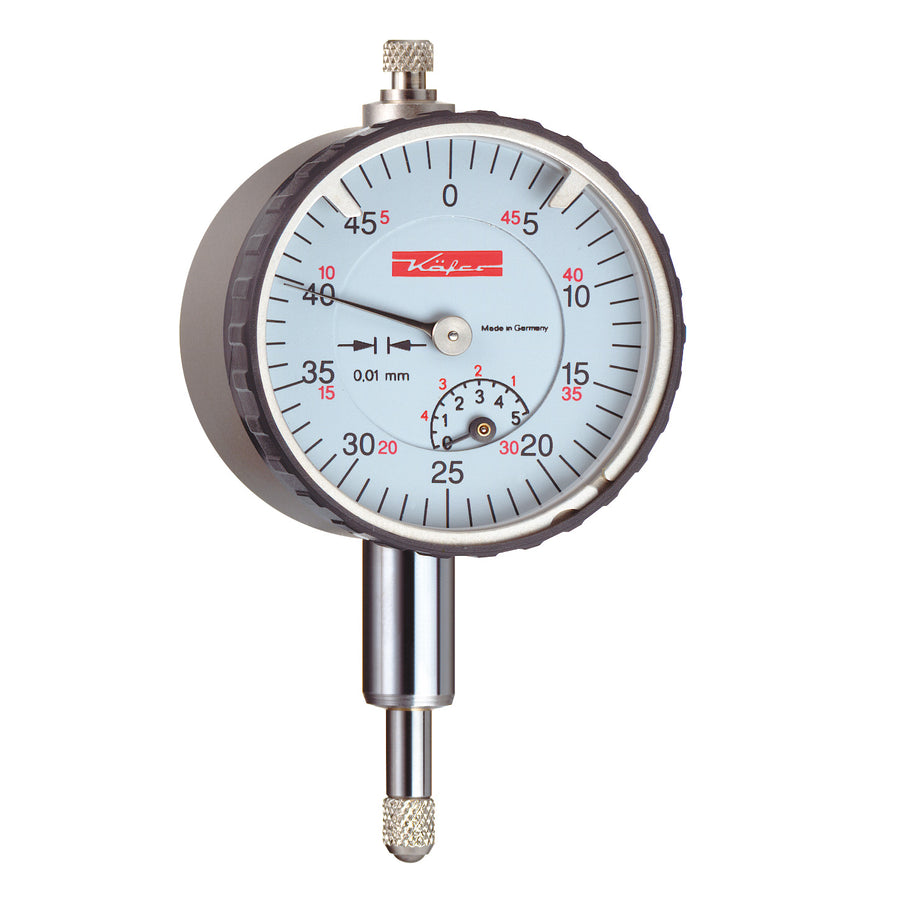

The miniature dial indicators have a diameter of 40 mm and a pointer revolution of 0.5 mm. Their scales therefore have only 50 divisions, unlike dial indicators with a diameter of 58 mm. This has the advantage of allowing clear and easy-to-read readings despite their compact dimensions. The measuring pin and clamping shaft are made of rust- and acid-resistant steel. The measuring pin is lapped.
- Scale division value 0.01 mm
- Measuring range 5 mm
- Pointer revolution ≙ 0.5 mm
- Outer ring diameter 40 mm
- Design according to DIN EN ISO 463 / DIN 878
- Initial measuring force 0.7 N ± 20%
- adjustable tolerance marks
- robust metal housing
- Clamping shaft made of durable, stainless steel, accuracy 8h6
- Measuring bolts made of durable, stainless steel
- interchangeable measuring probe according to DIN EN ISO 463
The following applies to all Käfer dial gauges:
- All dial gauges are subjected to an accuracy check using test equipment that is traceable to national or international standards
- Final inspection for the complete series with visual and mechanical function check
- Certificate of conformity with traceability to national reference standards free of charge in a case
- Carefully selected dial gauge parts and materials ensure long-term functionality
