Description

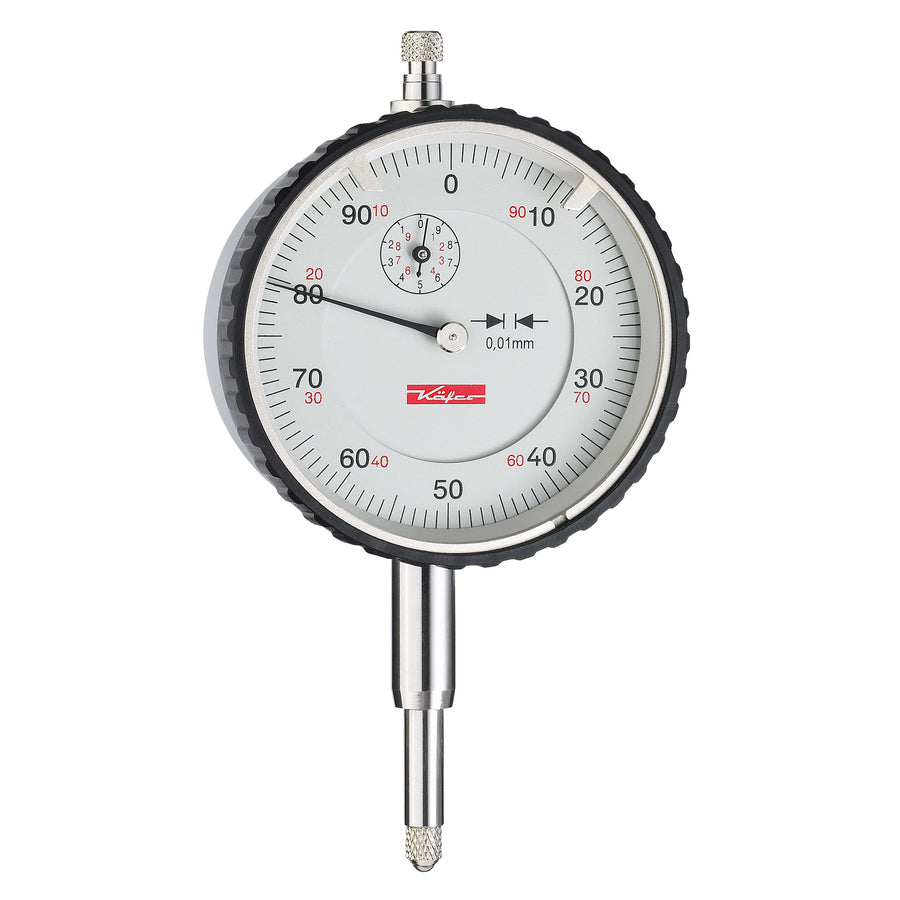

Mechanical precision dial gauge from Käfer. Robust and suitable for workshop use, with a reinforced 5 mm diameter measuring pin.
- Scale division value 0.01 mm
- Measuring range 10 mm
- Pointer revolution ≙ 1 mm
- Outer ring diameter 58 mm
- Design according to DIN EN ISO 463 / DIN 878
- Initial measuring force 0.7 N ± 20%
- adjustable tolerance marks
- robust metal housing
- Clamping shaft made of durable, stainless steel, accuracy 8h6
- Measuring bolts made of durable, stainless steel
- interchangeable measuring probe according to DIN EN ISO 463
The following applies to all Käfer dial gauges:
- All dial gauges are subjected to an accuracy check using test equipment that is traceable to national or international standards
- Final inspection for the complete series with visual and mechanical function check
- Certificate of conformity with traceability to national reference standards free of charge in a case
- Carefully selected dial gauge parts and materials ensure long-term functionality
