Description

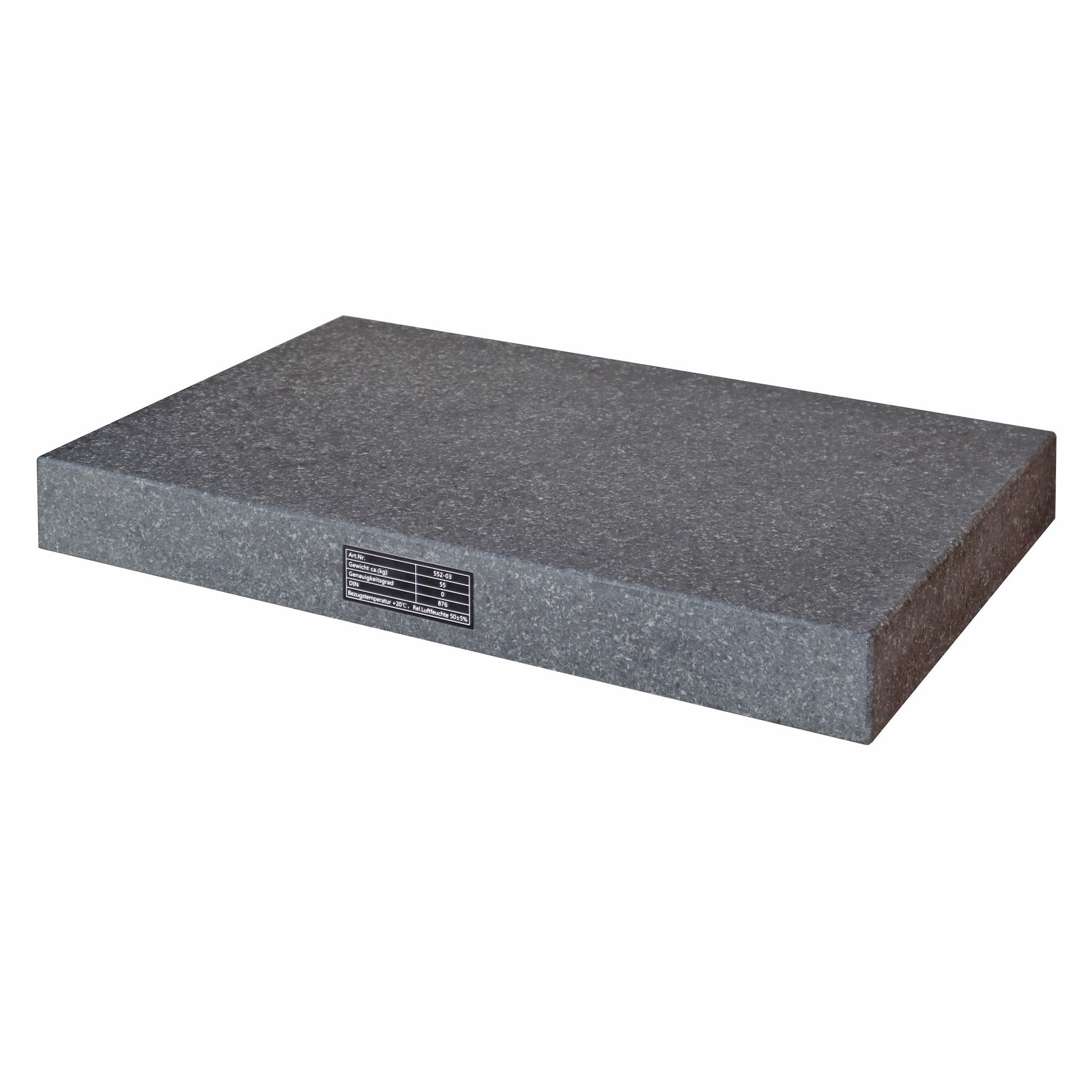

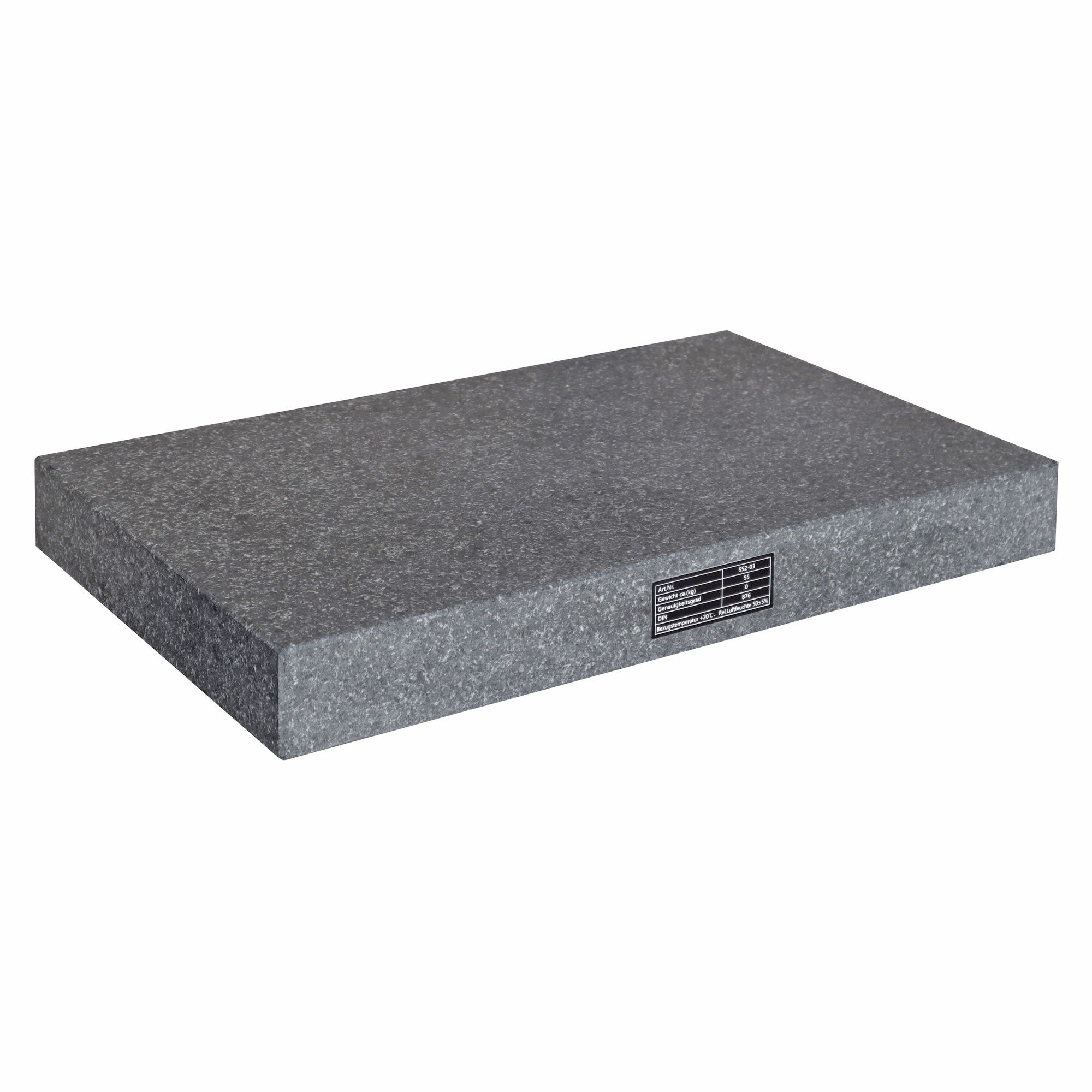

Measuring and control plate made of naturally aged, dark natural hard stone.
Ideal basis for assembly, control and laboratory applications.

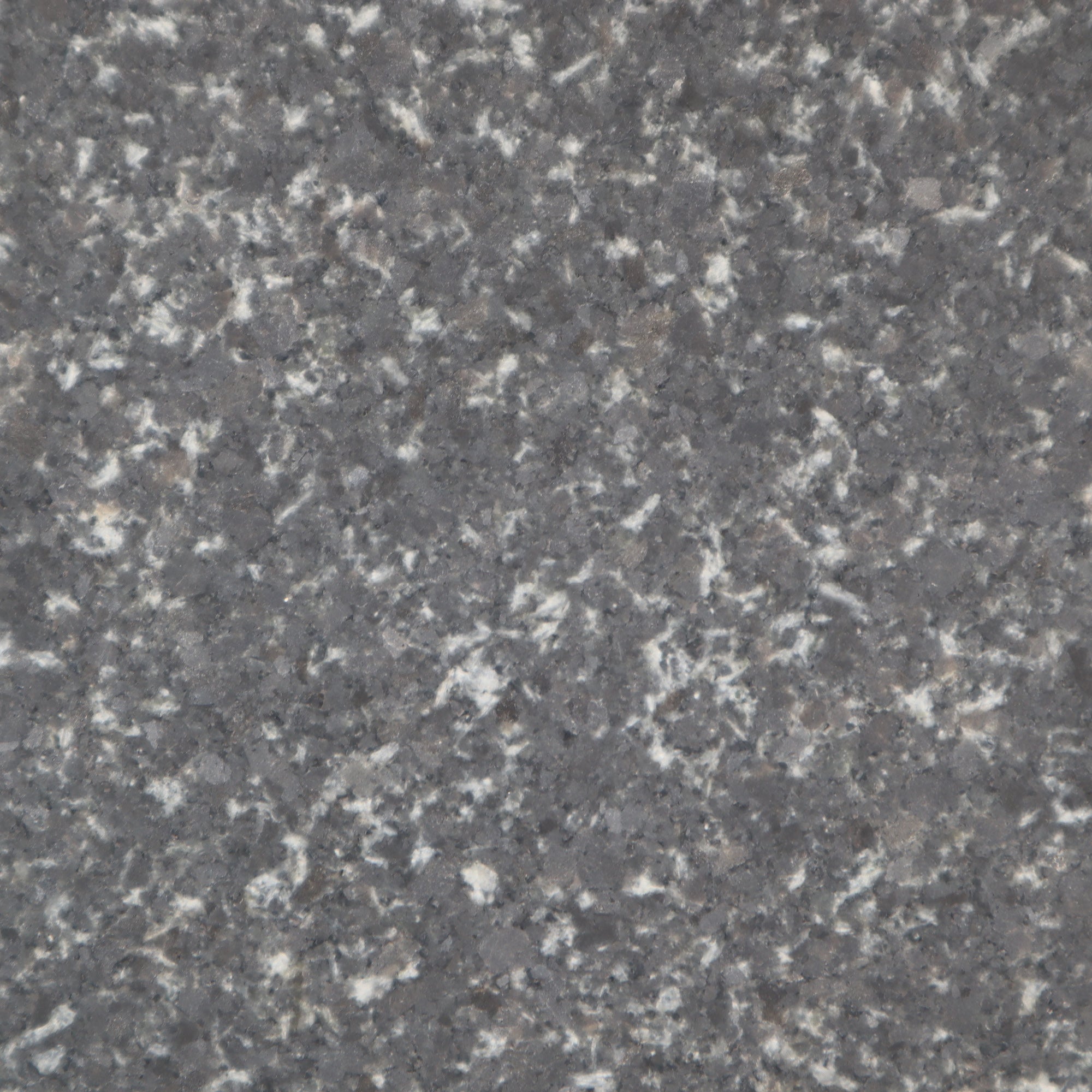

- fine-grained granite with a homogeneous structure
- Measuring surface finely ground and diamond lapped
- Flatness according to DIN 876/0
- rust-proof and acid-resistant
- low thermal conductivity
- deflection-resistant and torsion-resistant
- Outer edges visually ground

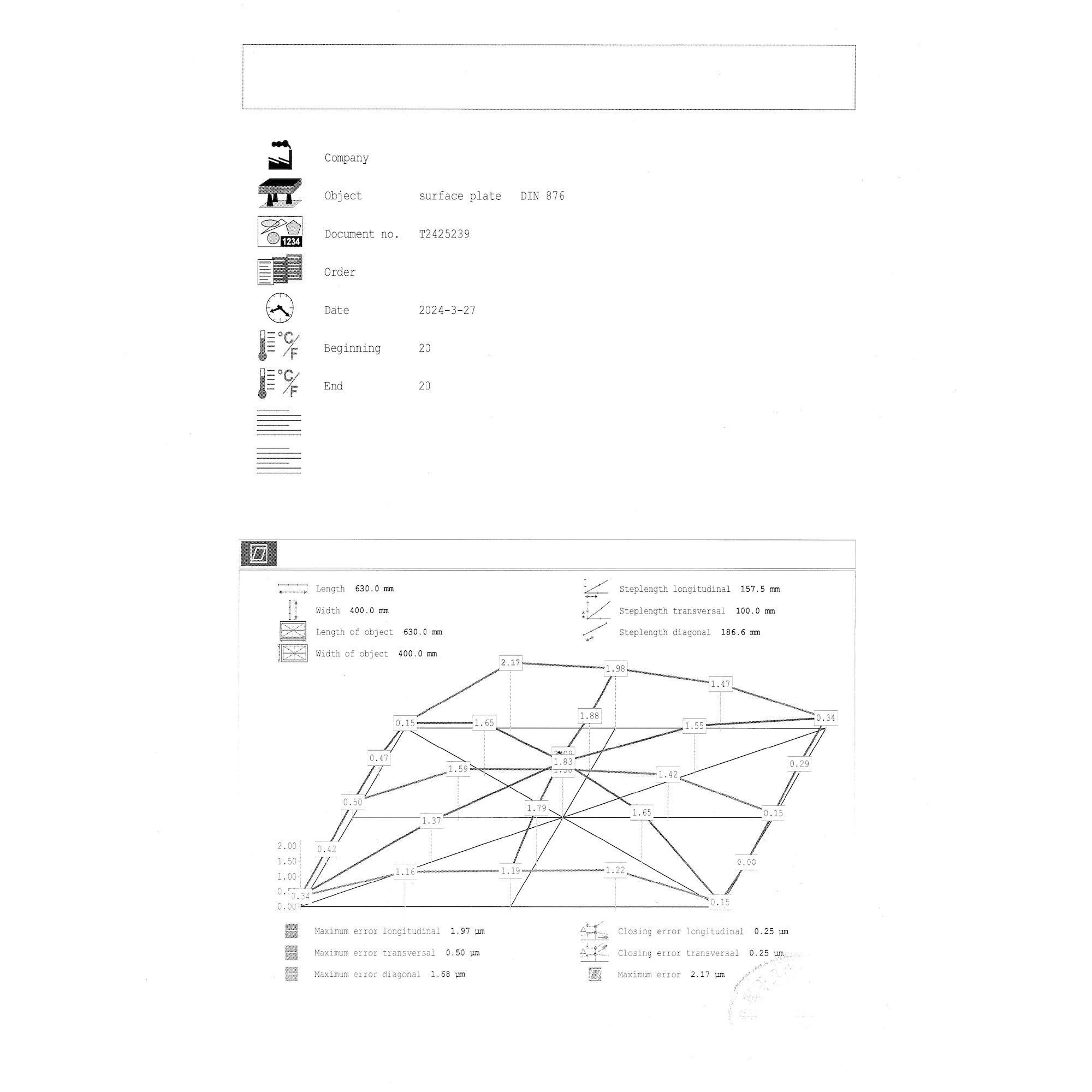

- with factory calibration certificate
✅ Precision according to standard – granite measuring plates according to DIN876/0
✅ Robust & durable – resistant to corrosion, temperature-stable and wear-resistant
✅ Precise results – finely ground surface for reliable alignment and testing

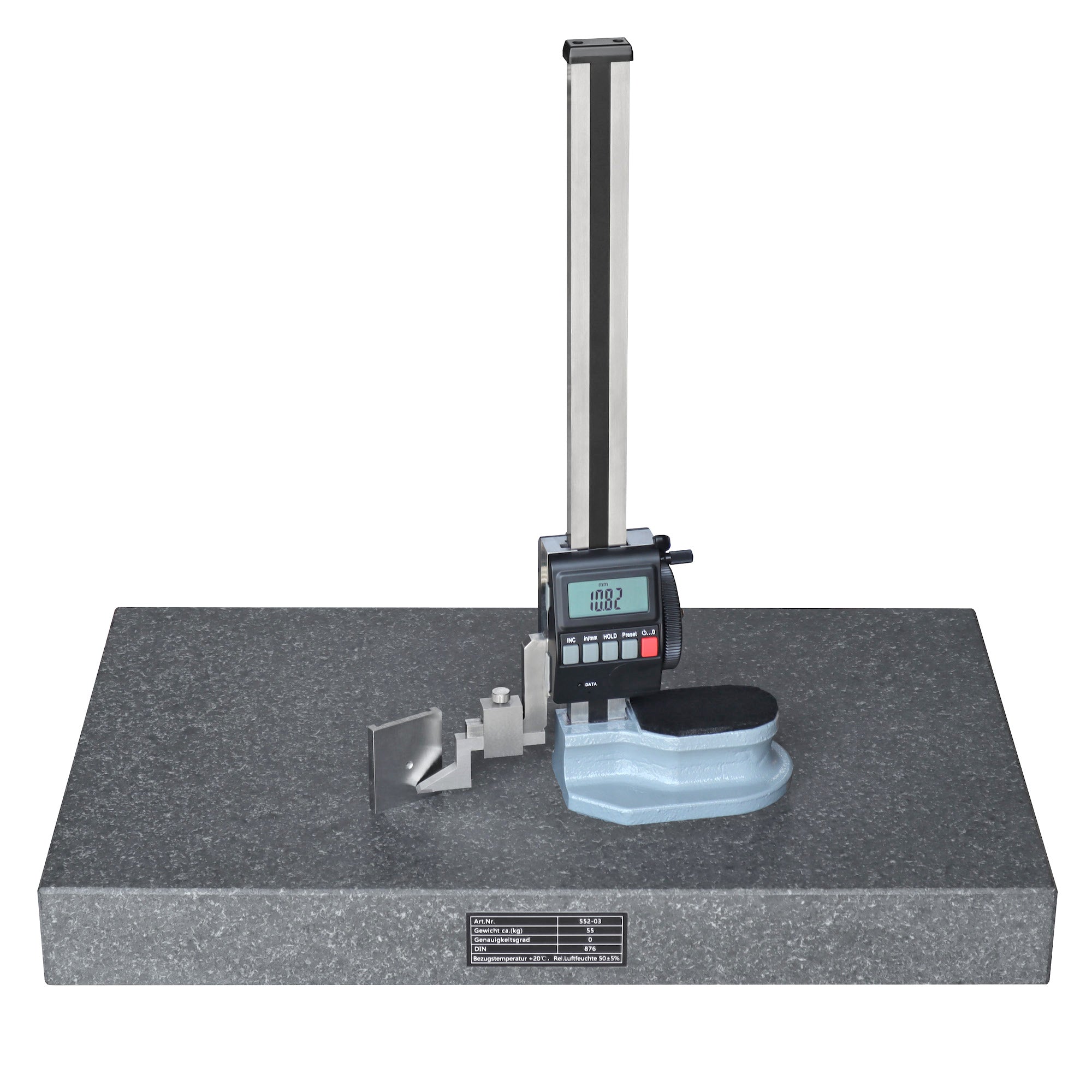

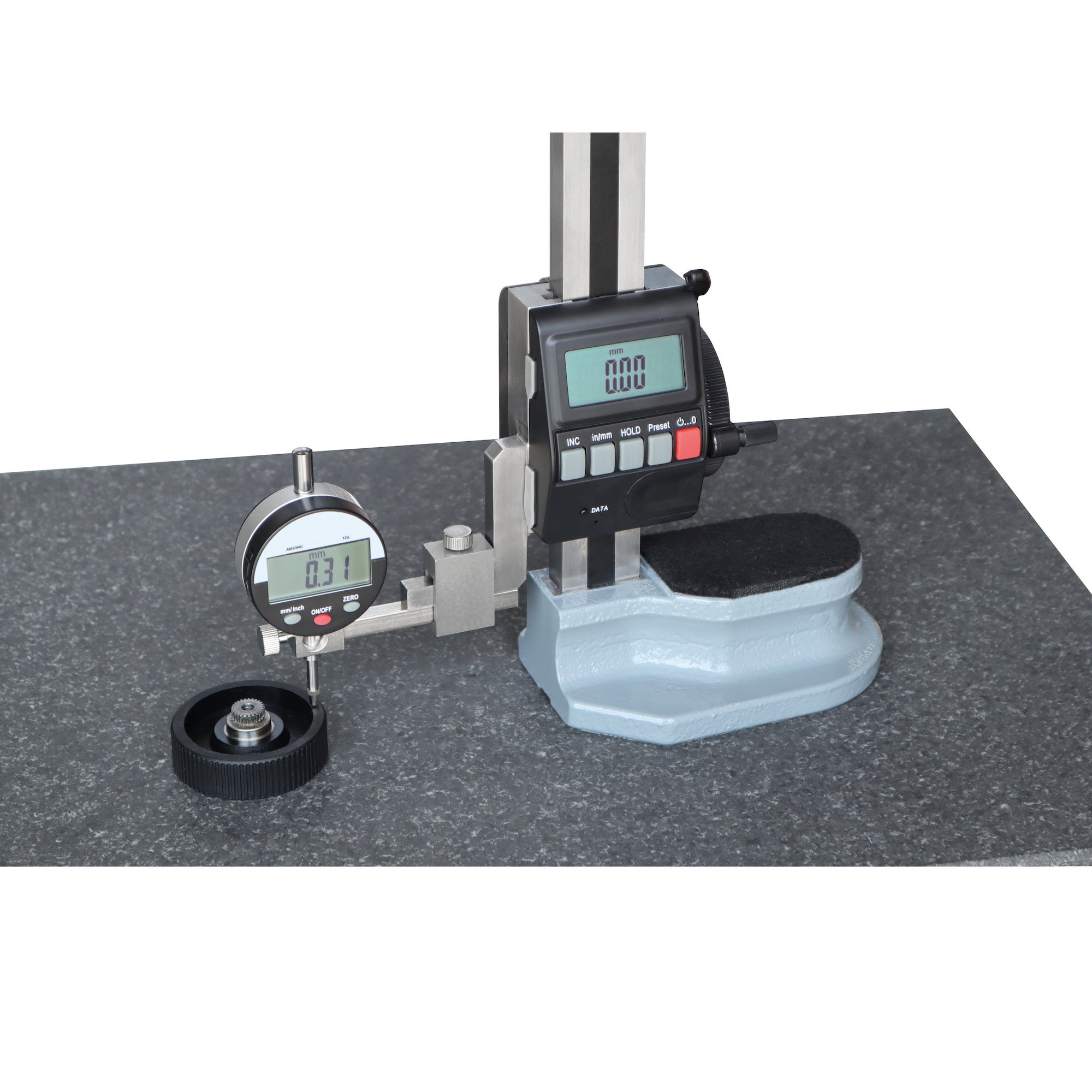

✅ Versatile applications – ideal for use with height gauges/dial gauges and many other measuring and control tasks
| Dimensions (mm) | Weight approx. (kg) | Flatness according to DIN876/0 (µm) | Load capacity (kg) |
|---|---|---|---|
| 400 x 250 x 50 | 19 | 6 | 100 |
| 400 x 400 x 50 | 31 | 6 | 120 |
| 630 x 400 x 70 | 69 | 7 | 130 |
| 800 x 500 x 100 | 145 | 7 | 240 |
| 1000 x 630 x 100 | 226 | 8 | 300 |
| 1200 x 800 x 160 | 510 | 9 | 1200 |
| 1600 x 1000 x 160 | 878 | 10 | 1300 |
| 2000 x 1000 x 220 | 1463 | 12 | 1500 |
Natural hard stone is a high-strength, extremely homogeneous, and fine-pored material with a dense structure. It has a low coefficient of thermal conductivity and expansion, is non-magnetic and electrically non-conductive, rust-proof, and acid-resistant. No greasing is required, making your granite measuring plate virtually maintenance-free.
Because the material is highly mechanically strong, its crystalline structure allows for excellent fine grinding. The measuring surface is refined by hand-lapping, achieving a high level of accuracy.
Control plates with accuracy according to DIN 876/0 are suitable for use in the measuring room. Surface deviations can be found in the size table.

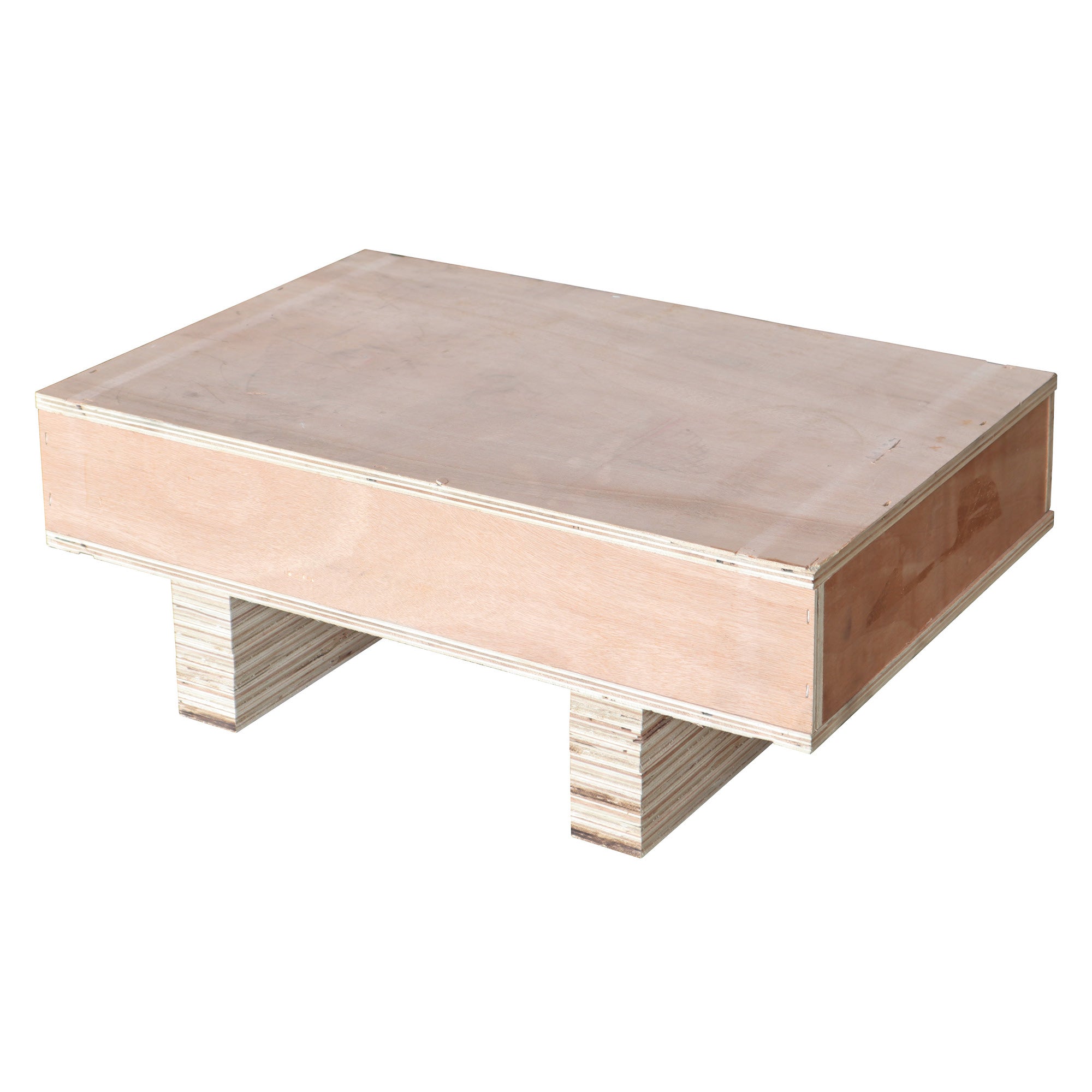

Shipping information
Please note the following shipping information and costs.
Shipping is currently only available within Germany.
| Dimensions (mm) | Shipping method | Shipping costs |
|---|---|---|
| 400 x 250 x 50 | Parcel shipping | 0 € |
| 400 x 400 x 50 | Parcel shipping | 0 € |
| 630 x 400 x 70 | Freight forwarding | 55 € |
| 800 x 500 x 100 | Freight forwarding | 80 € |
| 1000 x 630 x 100 | Freight forwarding | 110 € |
| 1200 x 800 x 160 | Freight forwarding | 180 € |
| 1600 x 1000 x 160 | Freight forwarding | 200 € |
| 2000 x 1000 x 220 | Freight forwarding | 220 € |
