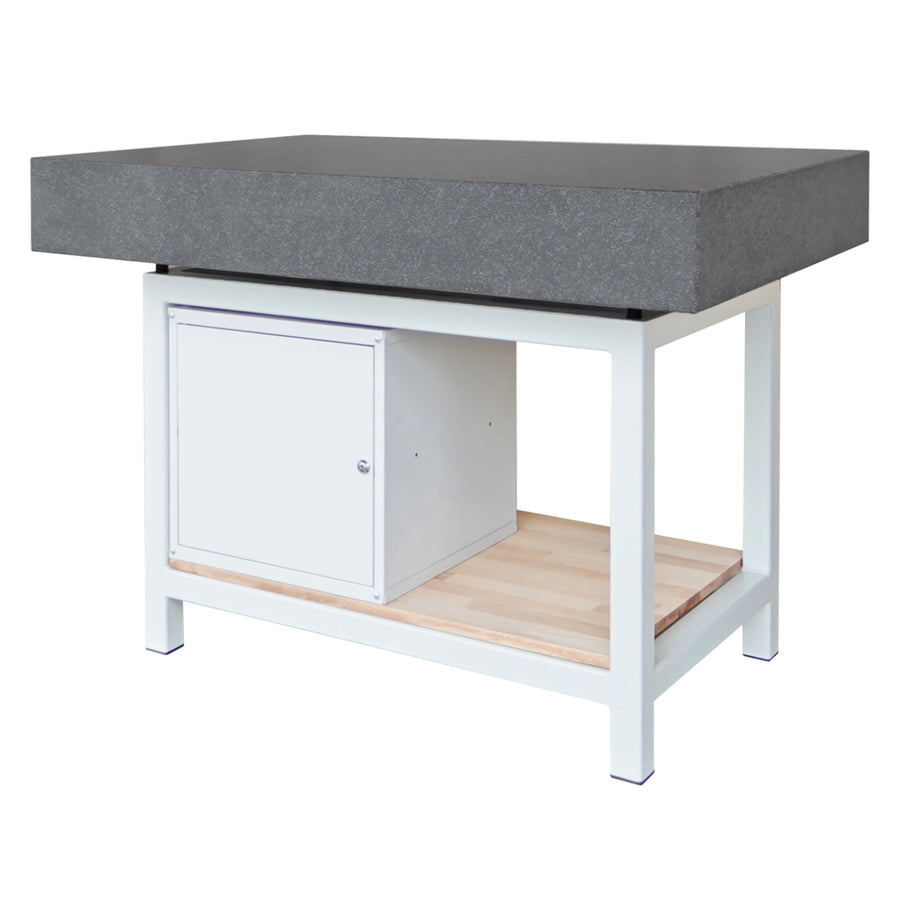

Granite measuring plate with tool cabinet
Regular Price
2.083,00€
Measuring and inspection plate made of naturally aged, dark natural hard stone. With a base cabinet made of angle iron, clad with sheet steel.
Ideal base for assembly, inspection, and laboratory applications.
- Fine-grained granite with a homogeneous structure
- Measuring surface finely ground and diamond-lapped
- Flatness according to DIN 876/0
- Rustproof and acid-resistant
- Low thermal conductivity
- Resistant to deflection and torsionally rigid
- Visible edges sight-ground
- With factory calibration certificate
- With storage fixtures
- Incl. steel ball inserts
- Working height approx. 900 mm
✅ Precision according to standard – Granite measuring plates according to DIN876/0
✅ Robust & durable – insensitive to corrosion, temperature-stable and wear-resistant
✅ Exact results – finely ground surface for reliable alignment and inspection
✅ Versatile applications – ideal for use with height gauge/dial indicator and many other measuring and inspection tasks
| Dimensions (mm) | Weight of measuring plate approx. (kg) | Flatness according to DIN876/0 (µm) | Load capacity (kg) |
| 800 x 500 x 100 | 145 | 7 | 240 |
| 1000 x 630 x 100 | 226 | 8 | 300 |
| 1200 x 800 x 160 | 510 | 9 | 1200 |
| 1600 x 1000 x 160 | 878 | 10 | 1300 |
Natural hard stone is a highly resistant, extremely homogeneous and fine-pored material with a dense structure. It has a low thermal conductivity and expansion coefficient, is non-magnetic and electrically non-conductive, rustproof and acid-resistant. No lubrication is necessary, making your granite measuring plate practically maintenance-free.
Due to the high mechanical strength of the material, a good fine finish can be achieved from the crystalline structure. The measuring surface is refined by hand through fine lapping. This achieves a high level of accuracy.
Inspection plates with accuracy according to DIN 876/0 are suitable for working in the metrology lab. You can find the surface deviations in the size table.
