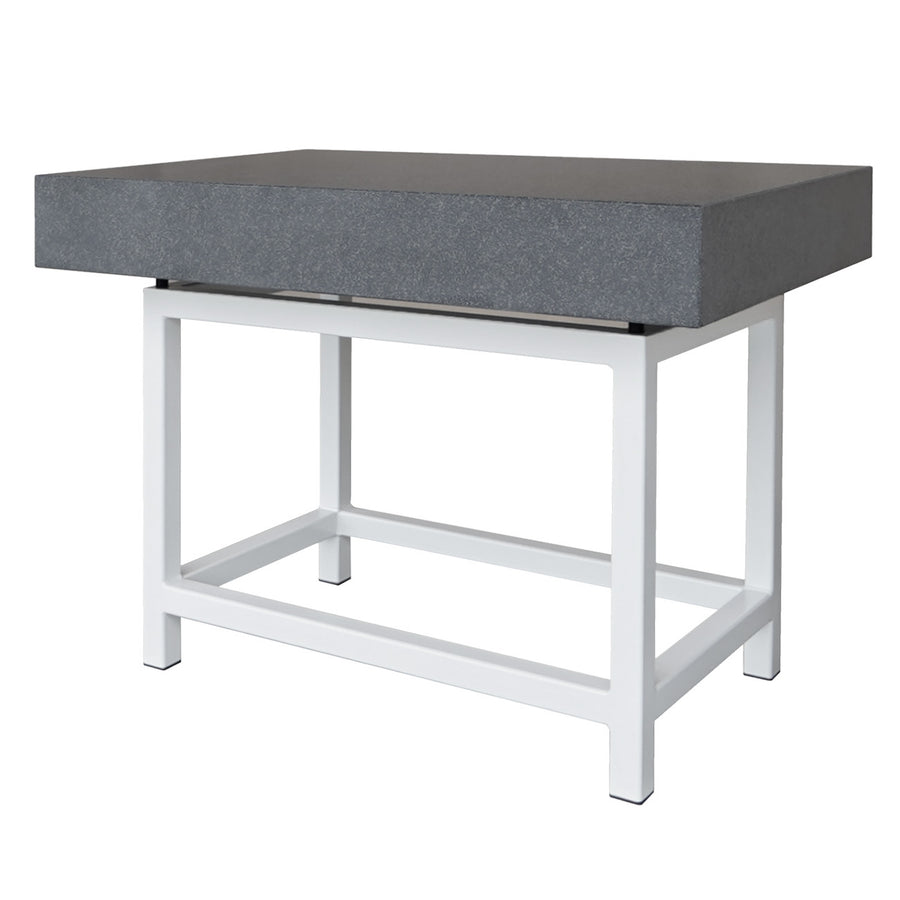

Granite measuring plate with angle frame
Regular Price
778,00€
Measuring and inspection plate made of naturally aged, dark natural hard stone. Angle frame with a sturdy welded construction made of profile tubing.
Ideal base for assembly, inspection, and laboratory applications.
- Fine-grained granite with a homogeneous structure
- Measuring surface finely ground and diamond-lapped
- Flatness according to DIN 876/0
- Rustproof and acid-resistant
- Low thermal conductivity
- Deflection-resistant and torsion-rigid
- Visible-ground outer edges
- With factory calibration certificate
- With storage fixtures
- Incl. steel ball inserts
- Working height approx. 900 mm
✅ Precision according to standard – Granite measuring plates according to DIN876/0
✅ Robust & durable – resistant to corrosion, temperature-stable and wear-resistant
✅ Exact results – finely ground surface for reliable alignment and inspection
✅ Versatile applications – ideal for use with height gauge/dial indicator and many other measuring and inspection tasks
| Dimensions (mm) | Plate weight approx. (kg) | Flatness according to DIN876/0 (µm) | Load capacity (kg) |
| 630 x 400 x 70 | 69 | 7 | 130 |
| 800 x 500 x 100 | 145 | 7 | 240 |
| 1000 x 630 x 100 | 226 | 8 | 300 |
| 1200 x 800 x 160 | 510 | 9 | 1200 |
| 1600 x 1000 x 160 | 878 | 10 | 1300 |
| 2000 x 1000 x 220 | 1463 | 12 | 1500 |
Natural hard stone is a highly resistant, extremely homogeneous and fine-pored material with a dense structure. It has low thermal conductivity and expansion coefficient, is non-magnetic and electrically non-conductive, rustproof and acid-resistant. No lubrication is necessary, making your granite measuring plate practically maintenance-free.
Due to the material's high mechanical strength, its crystalline structure allows for a high-quality fine finish. The measuring surface is further refined by hand with fine lapping. This achieves a high level of accuracy.
Inspection plates with accuracy according to DIN 876/0 are suitable for use in metrology laboratories. Surface deviations can be found in the size chart.
