Description

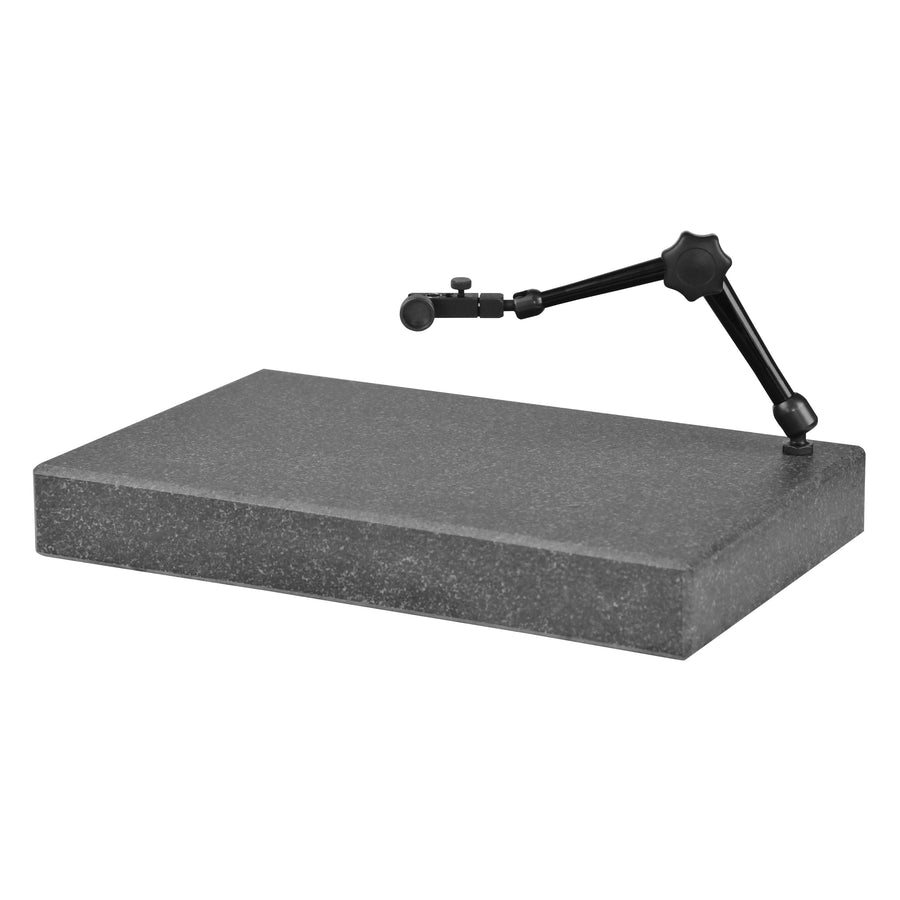

The measuring and inspection plate with a 3D articulated arm provides a stable and precise working platform for a wide range of inspection and measurement tasks. The flexibly positionable articulated arm enables precise alignment of test devices or fixtures in three dimensions and ensures reproducible results even with complex component geometries.
- Measuring plate made of hard stone DIN 876 ground and fine diamond lapped
- Stable 3D articulated arm with mechanical central clamping
- with dial gauge holder Ø 8mm with fine adjustment
- Dovetail guide
- Threaded bushing measuring table M8
| Dimensions (mm) | Weight approx. (kg) | Flatness according to DIN876/0 (µm) | Load capacity (kg) |
|---|---|---|---|
| 400 x 250 x 50 | 19 | 6 | 100 |
| 400 x 400 x 50 | 31 | 6 | 120 |
