Description

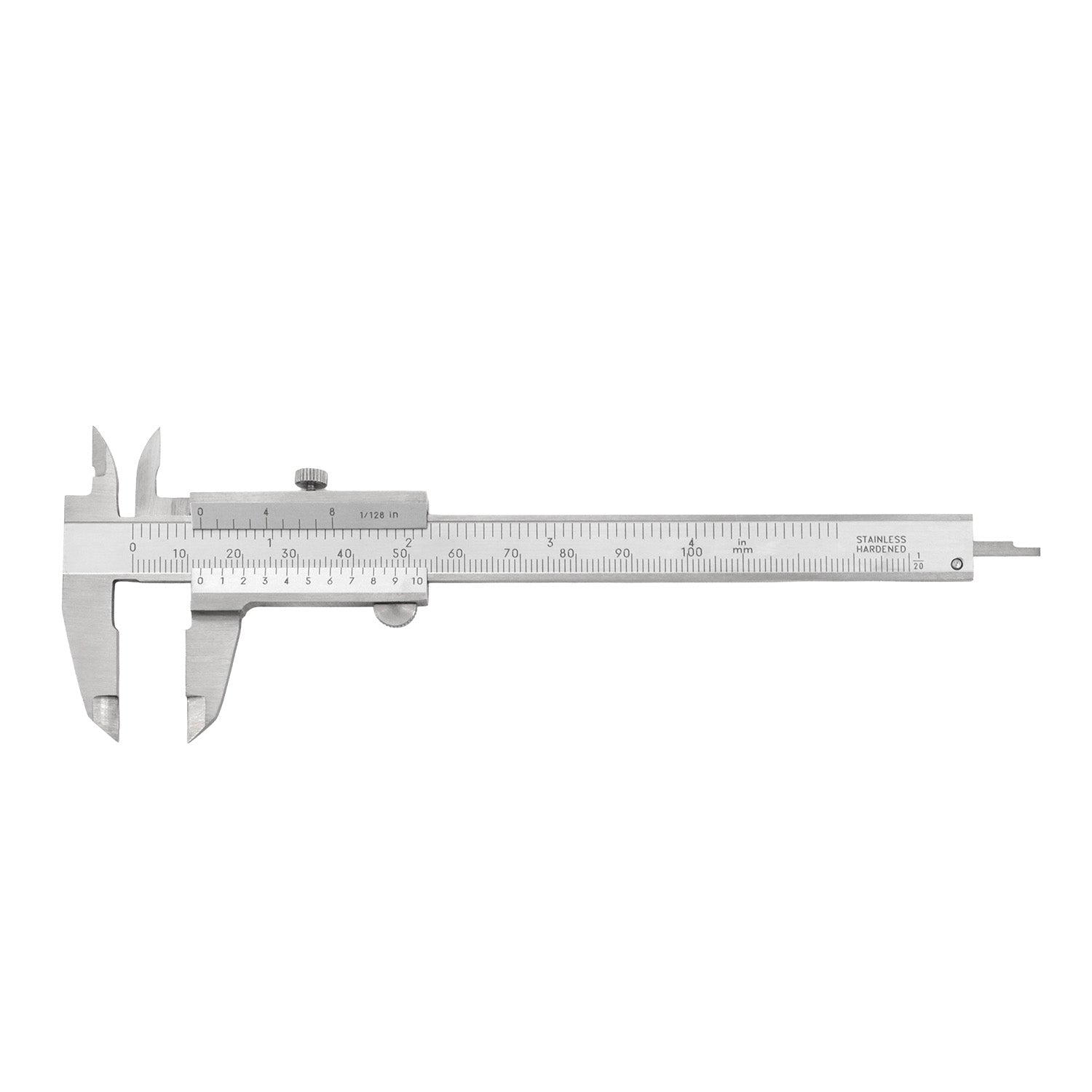

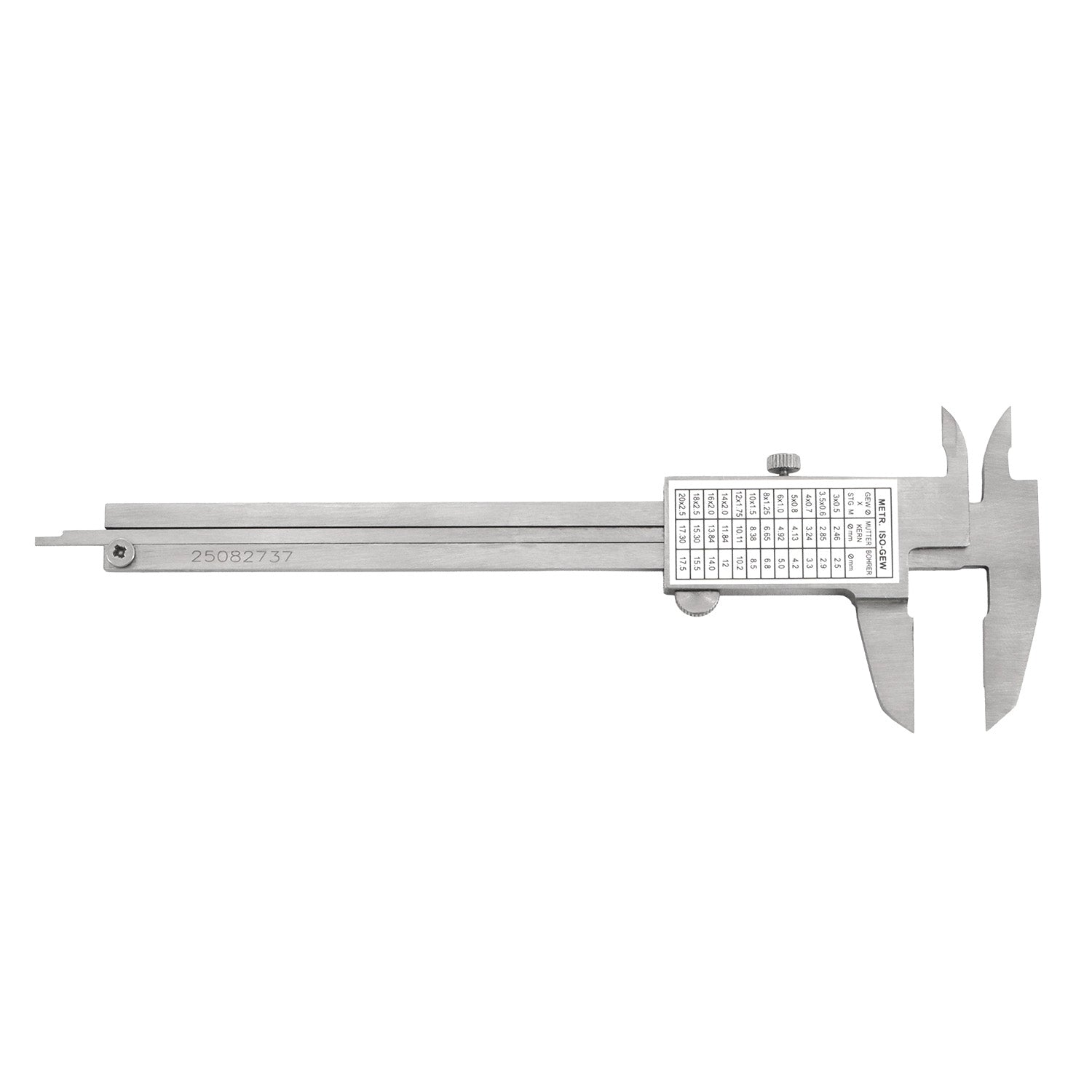

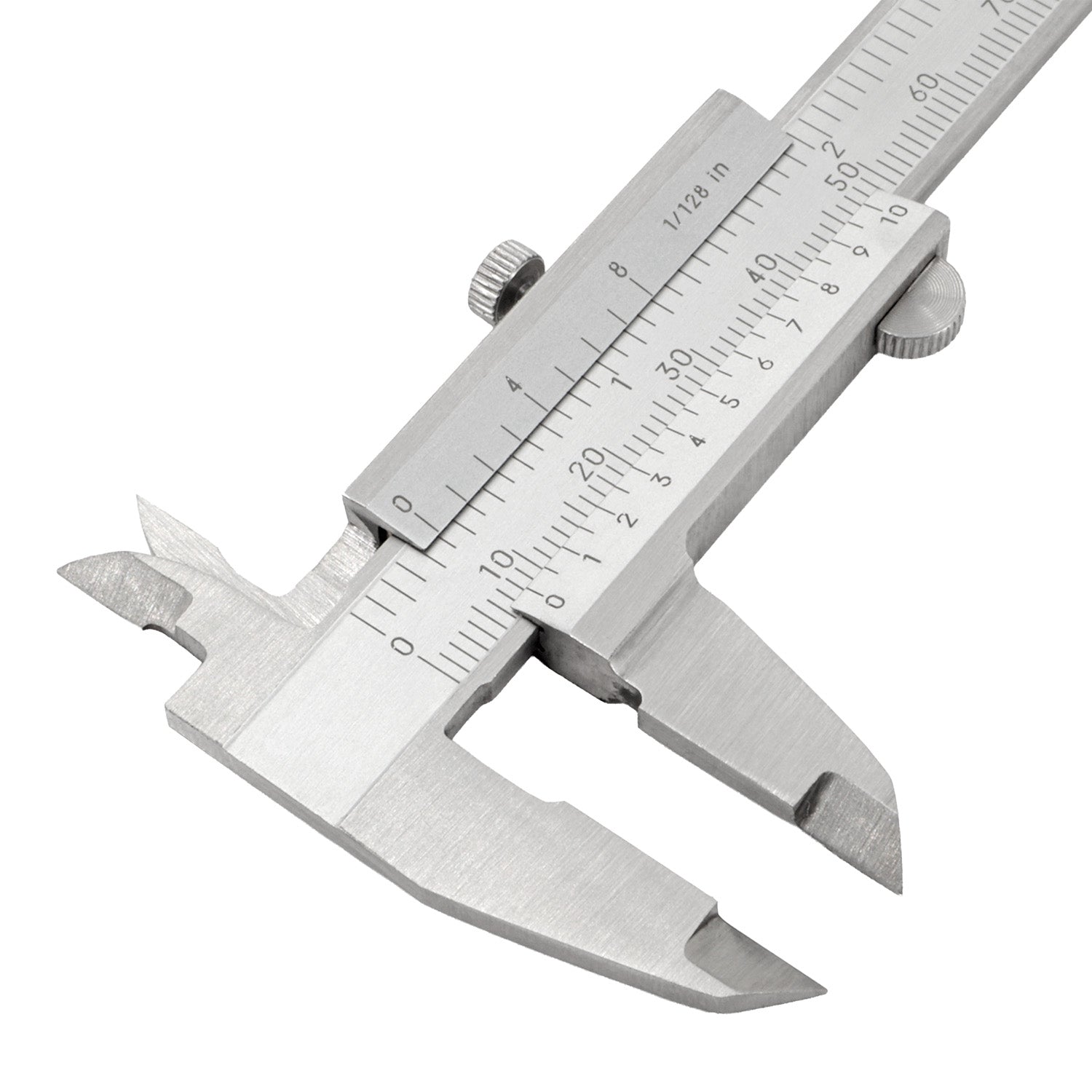

Vernier caliper for fast and precise measurements. The measuring position can be locked with the locking screw.
- according to DIN 862
- stainless steel
- with depth gauge
- suitable for measuring outer and inner diameters, depths and lengths
- (R) = round depth gauge
| Measuring range (mm) | Reading (mm) | Length of measuring jaws (mm) | Depth gauge |
|---|---|---|---|
| 100 | 0.05 | 30 | flat |
| 150 | 0.05 | 40 | flat |
| 200 | 0.05 | 50 | flat |
| 300 | 0.05 | 60 | flat |
| 150 | 0.05 | 40 | around |
| 100 | 0.02 | 30 | flat |
| 150 | 0.02 | 40 | flat |
| 200 | 0.02 | 50 | flat |
| 300 | 0.02 | 60 | flat |
| 150 | 0.02 | 40 | around |
