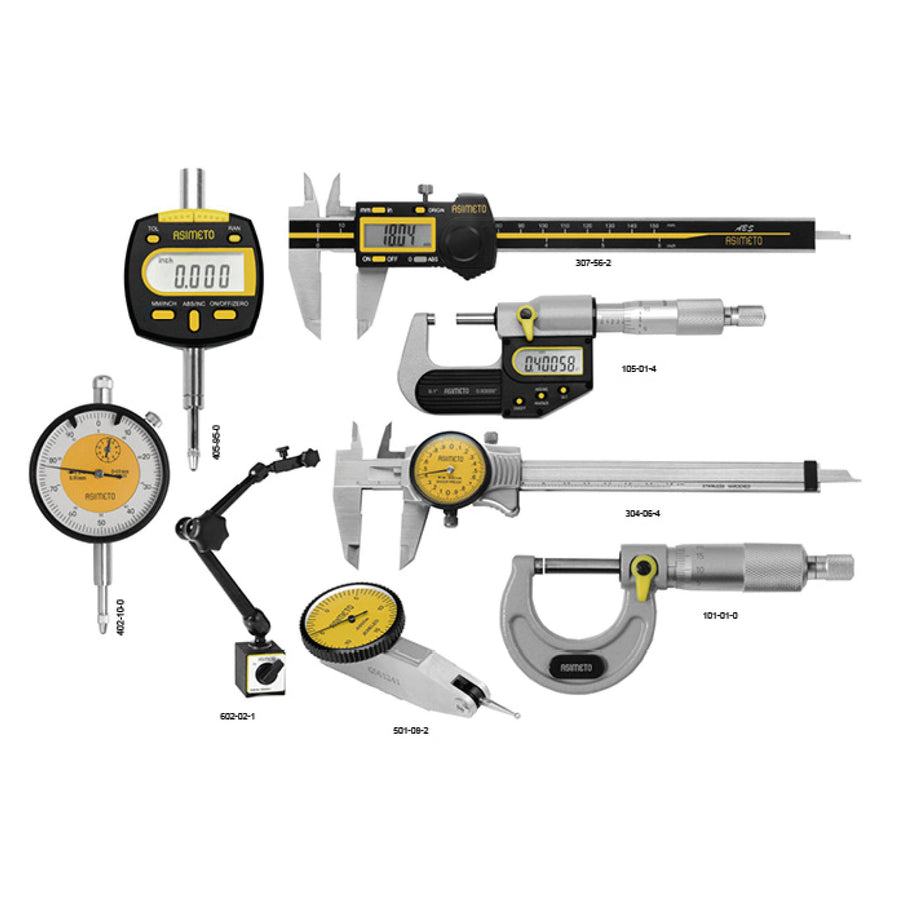

Measuring tool case 8-piece set

Magnetic articulated tripod

• with mechanical central clamping
• prismatic sole; with fine adjustment
• Holding force up to 80 kg; total height: 350 mm
• can be switched on and off using a rotary switch
• 8mm clamping shaft
• Dimensions of magnetic base: 60x50x55mm

Dial indicator

• horizontal
• Measuring range: 0.8mm
• Reading: 0.01mm / 0-40-0
• Accuracy: 0.013mm
• stone-bearing, 8mm dovetail mount
• 2mm carbide measuring insert
• Ø case: 32mm

analog micrometer

• Carbide measuring surfaces, with ratchet
• Measuring range 0-25mm; 0.01mm reading
• Accuracy: ±0.004mm; Flatness: 0.6µm

digital micrometer

• Carbide measuring surfaces, with ratchet
• Measuring range: 0-25mm; 0.001mm reading
• Accuracy: ±0.002mm; Flatness: 0.3µm
• Protection class: IP65
• with data output

Precision dial gauge

• Case diameter: 58mm
• stone-bearing
• Shaft diameter: 8h6
• Measuring range: 10mm; 0.01mm reading

Digital dial gauge

• Measuring range: 0-12.5mm; 0.01mm reading
• Accuracy: ±0.02mm
• Tolerance function
• Automatic shutdown after 45 minutes.
• 8mm shaft diameter

Digital ABS caliper

• Measuring range: 0-150mm
• Accuracy: ±0.02mm; 0.01mm reading
• ABS function
• with data output

Dial caliper

• Aluminum housing
• Measuring range: 0-150mm
• Accuracy: ±0.02mm; 0.01mm reading
• hardened measuring surfaces
