Description

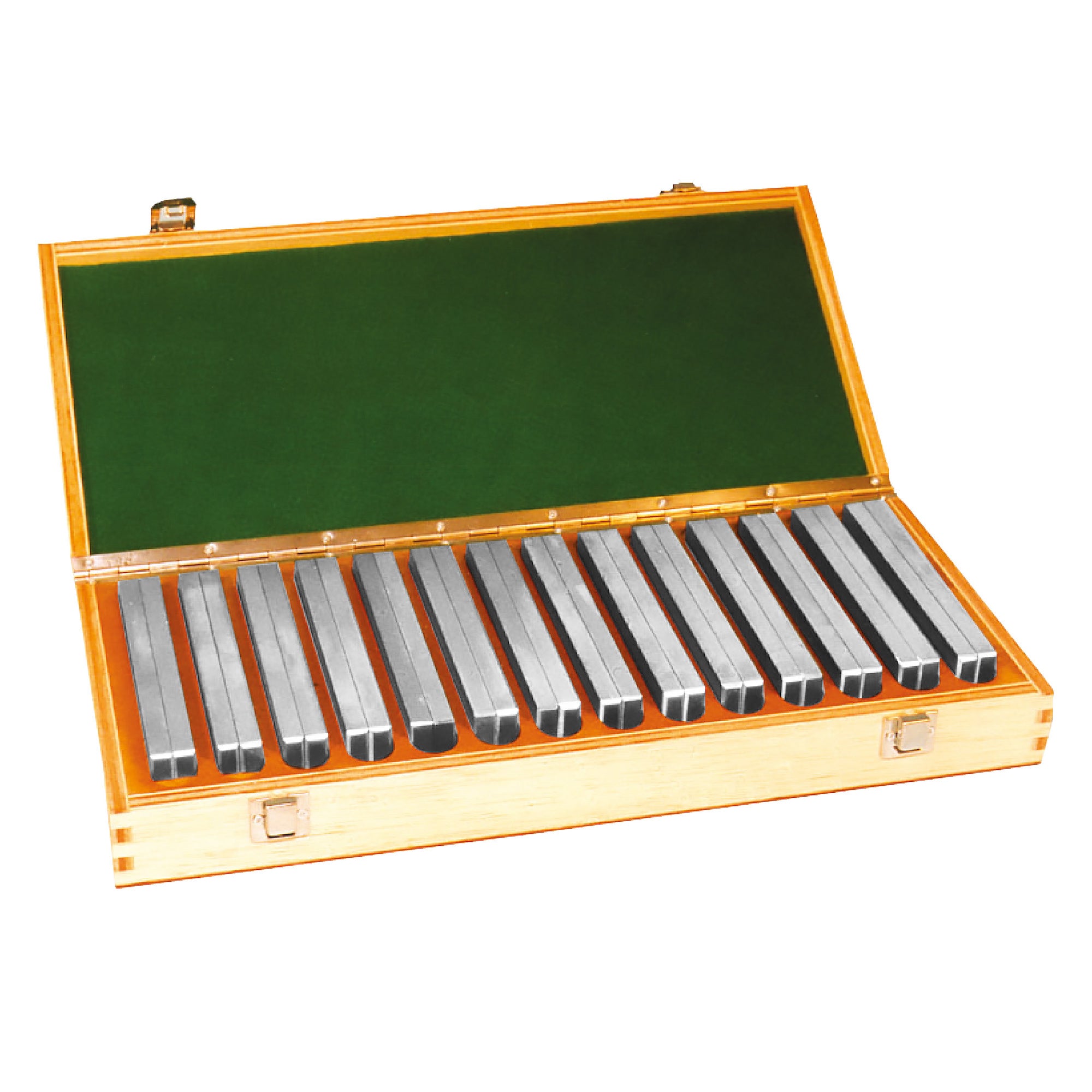

Set of parallel supports in a wooden stand in various lengths and number of pairs.
For use as workpiece supports in various machining processes to enable parallel clamping.
- according to DIN ISO 2768 m
- made of aged steel
- hardened and finely ground in pairs
- Tolerance ± 0.01 mm
- Parallelism ± 0.01 mm
| couples | Length (mm) | Width (mm) | Height (mm) |
| 12 | 120 | 10 | 14 / 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30 / 32 / 35 / 40 |
| 14 | 150 | 10 | 14 / 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30 / 32 / 35 / 40 / 45 / 50 |
| 9 | 100 | 4 | 10 / 14 / 18 / 22 / 26 / 30 / 34 / 38 / 42 |
| 9 | 160 | 4 | 10 / 14 / 18 / 22 / 26 / 30 / 34 / 38 / 42 |
