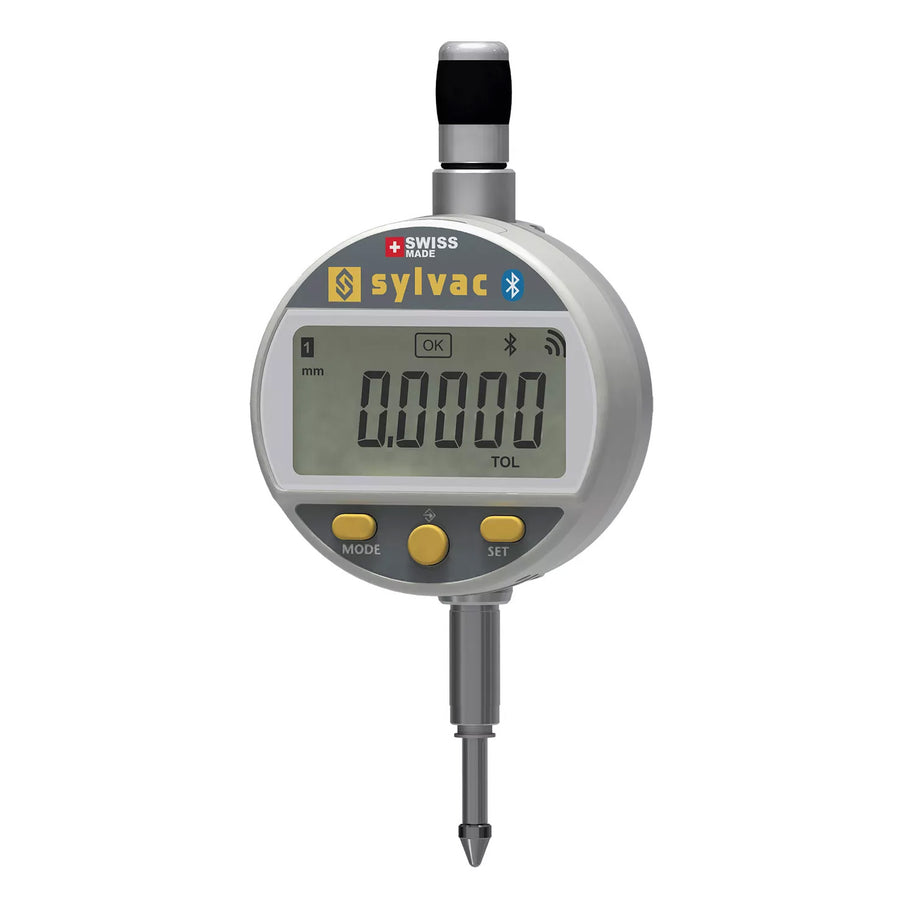

Sylvac S_Dial WORK Smart Digital Indicator
Regular Price
739,00€
Digital dial gauge with integrated Bluetooth. Swiss Made. Absolute SIS (Smart Inductive System).
| Measuring range (mm) | 12.5 | 25 | 50 | 100 |
| Resolution (mm) | 0.0001 | 0.0001 | 0.001 | 0.001 |
| Max. error limit fe (µm) | 3 | 4 | 5 | 6 |
| Repeatability (µm) | 0.8 | 2 | ||
| Protection rating according to IEC 60529 | IP54 | |||
| A (mm) | 56.7 | 69.4 | 121 | 172 |
| B (mm) | 66.1 | 78.5 | 142 | 244 |
| C (mm) | 50.5 | 50.5 | 88 | 139 |
| D (mm) | 36.6 | 49.4 | – | – |
| Connection type (instrument to device) | Bluetooth Wireless Technology Power to RS232 Power to USB Proximity to RS232 Proximity to USB RS – USB adapter Information about cables |
|||
| Configurable via PC | yes | |||
| Standard functions (configurable via PC) | mm/inch, Ref I/II, Preset (max 999.999) Min/Max/Delta, tolerances, resolution, measuring direction, multiplication factor, automatic or manual shut-off, key lock |
|||
Features:
- Easy reading:With a 270° rotatable bezel (Ø 59.5 mm) and a large display with a resolution of 0.01 mm, 0.001 mm or 0.0001 mm, as well as an LED tolerance indicator, enabling quick and accurate decision-making
- Battery-free operation:Operate the digital comparator without batteries by using the Proximity and Power data outputs
- Seamless data acquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly, and error-free, thereby increasing productivity
- Durable: Our dial gauges are water- and coolant-resistant and have a protection rating of IP54
- Practical functions:Benefit from a wide range of functions, including MIN/MAX/DELTA, TOL, Factor, PRESET, and AUTO OFF, as well as a button for favorite functions. Automatically wakes up when moved, enters sleep mode after 10 minutes of inactivity, saves the position in sleep mode, thereby increasing efficiency and battery life
- Flexible measuring range:Choose your measuring range from one of our options: 12.5, 25, 50, and 100 mm
Scope of delivery:
Dial gauge, CR2032 lithium battery, operating instructions, test certificate.
