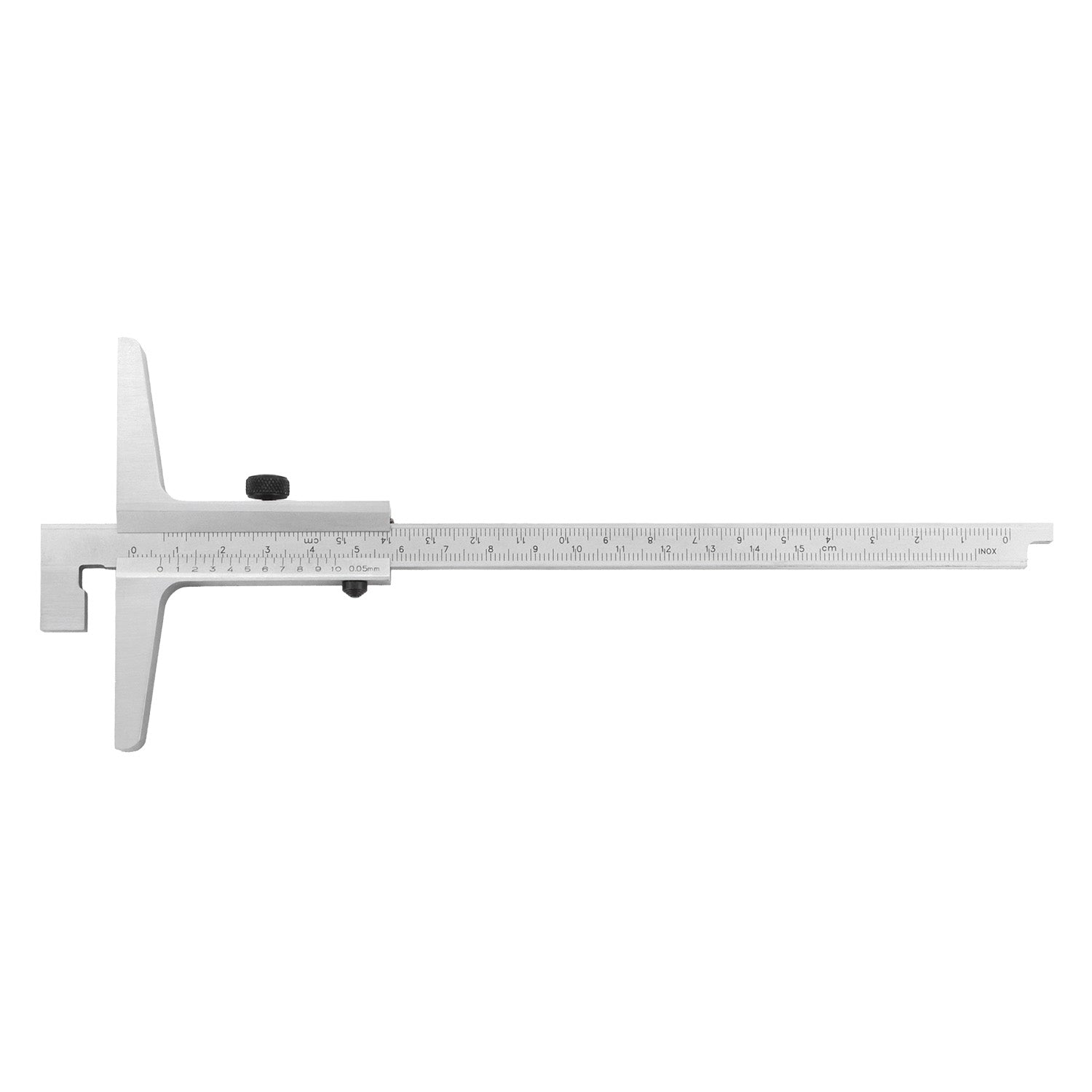

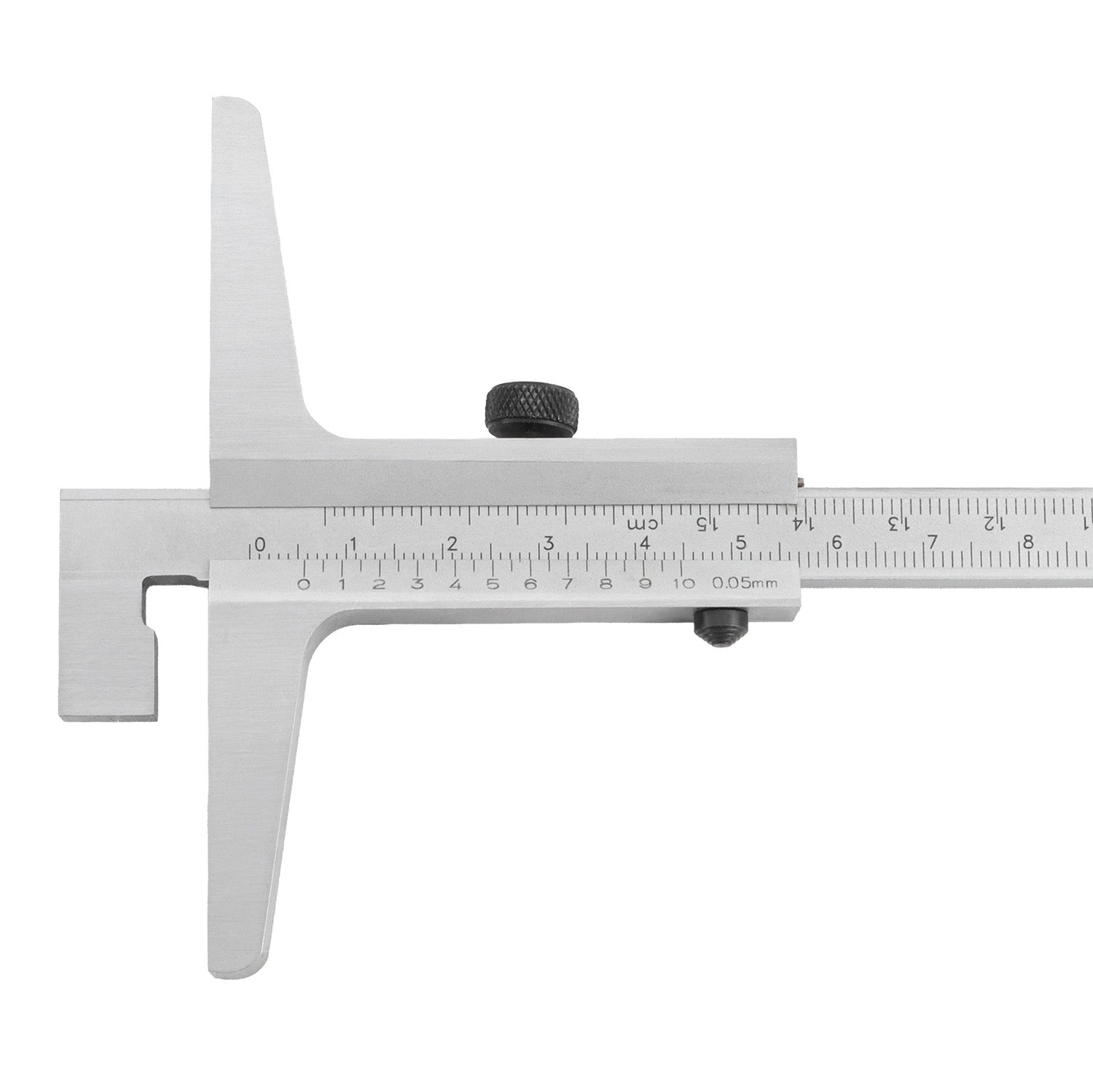

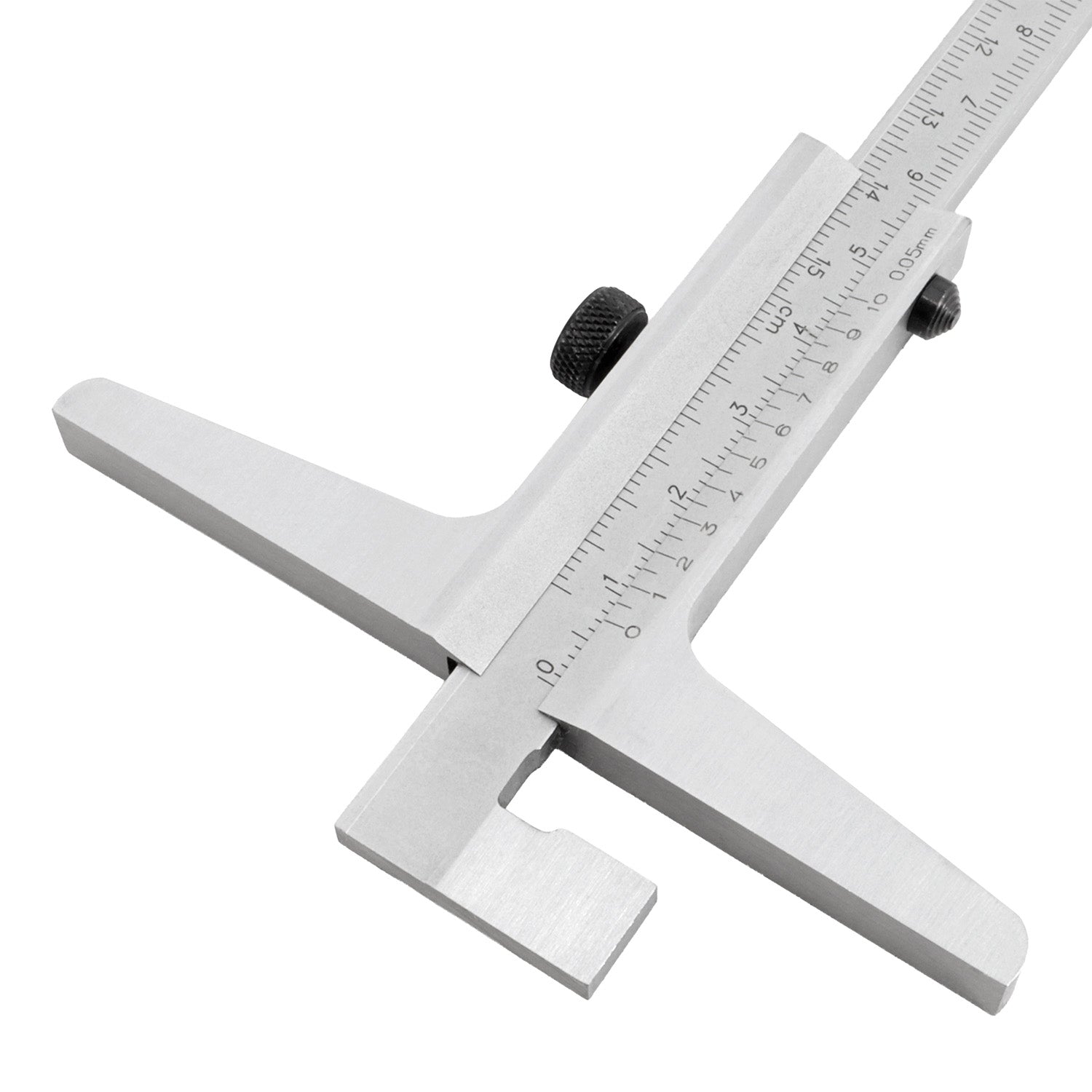

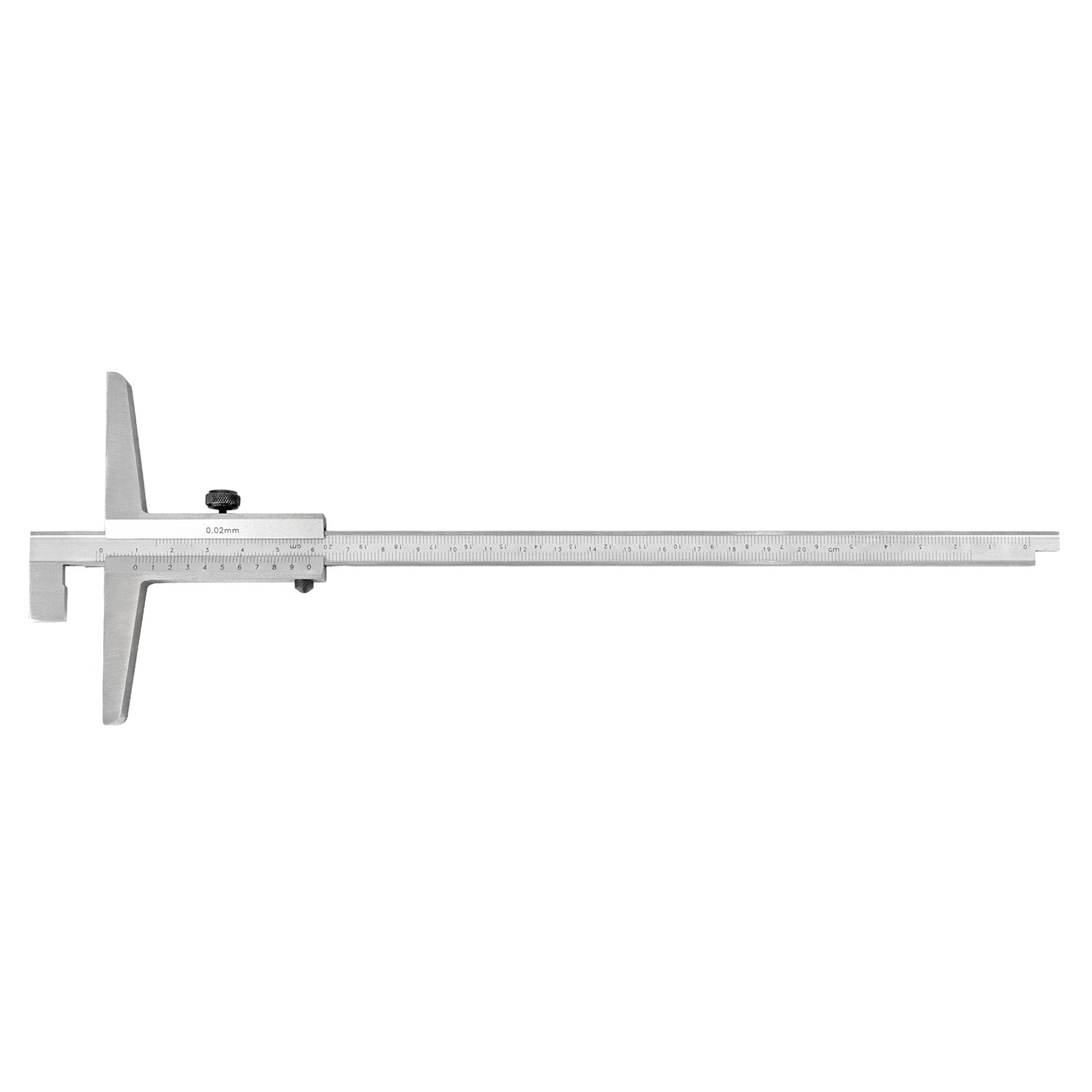

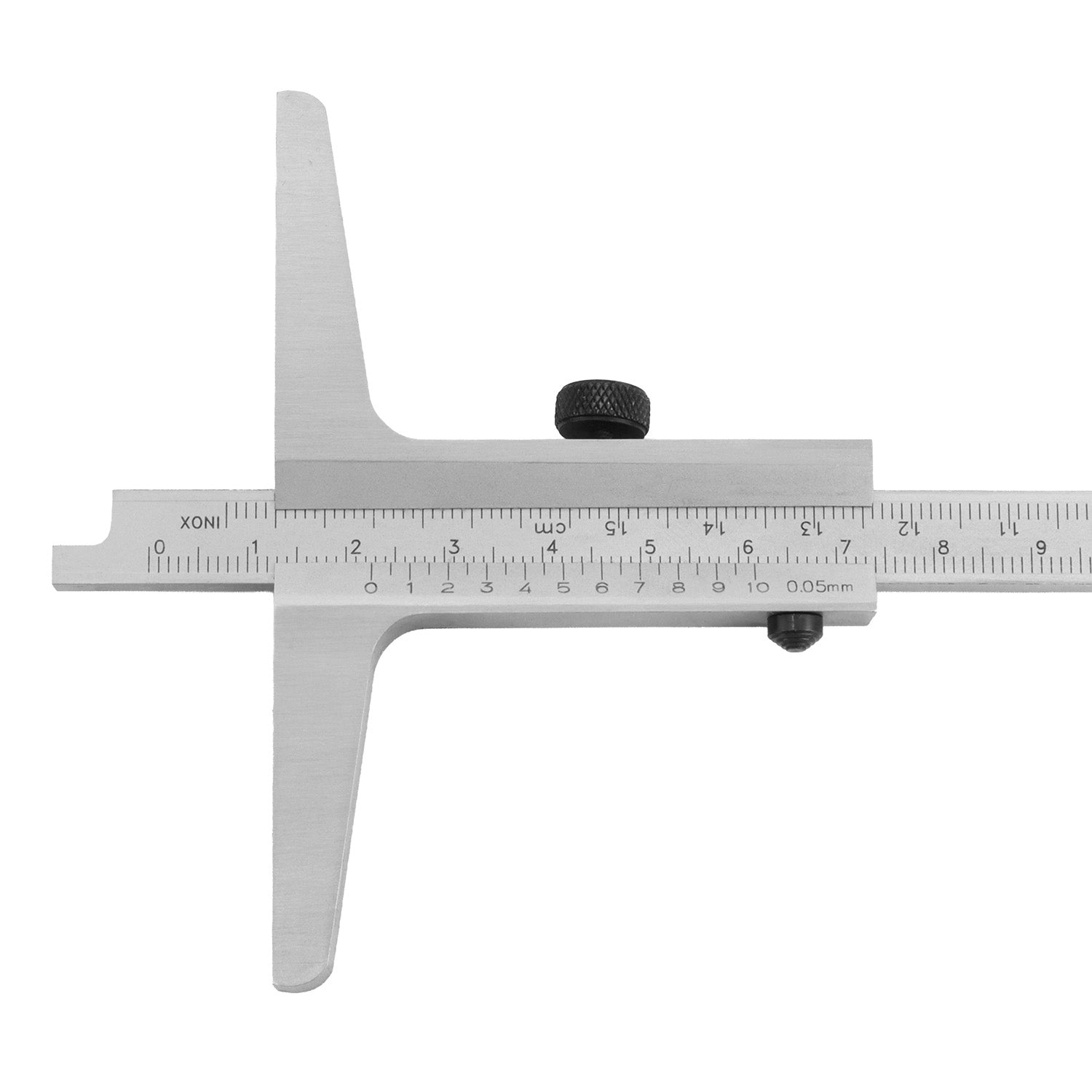

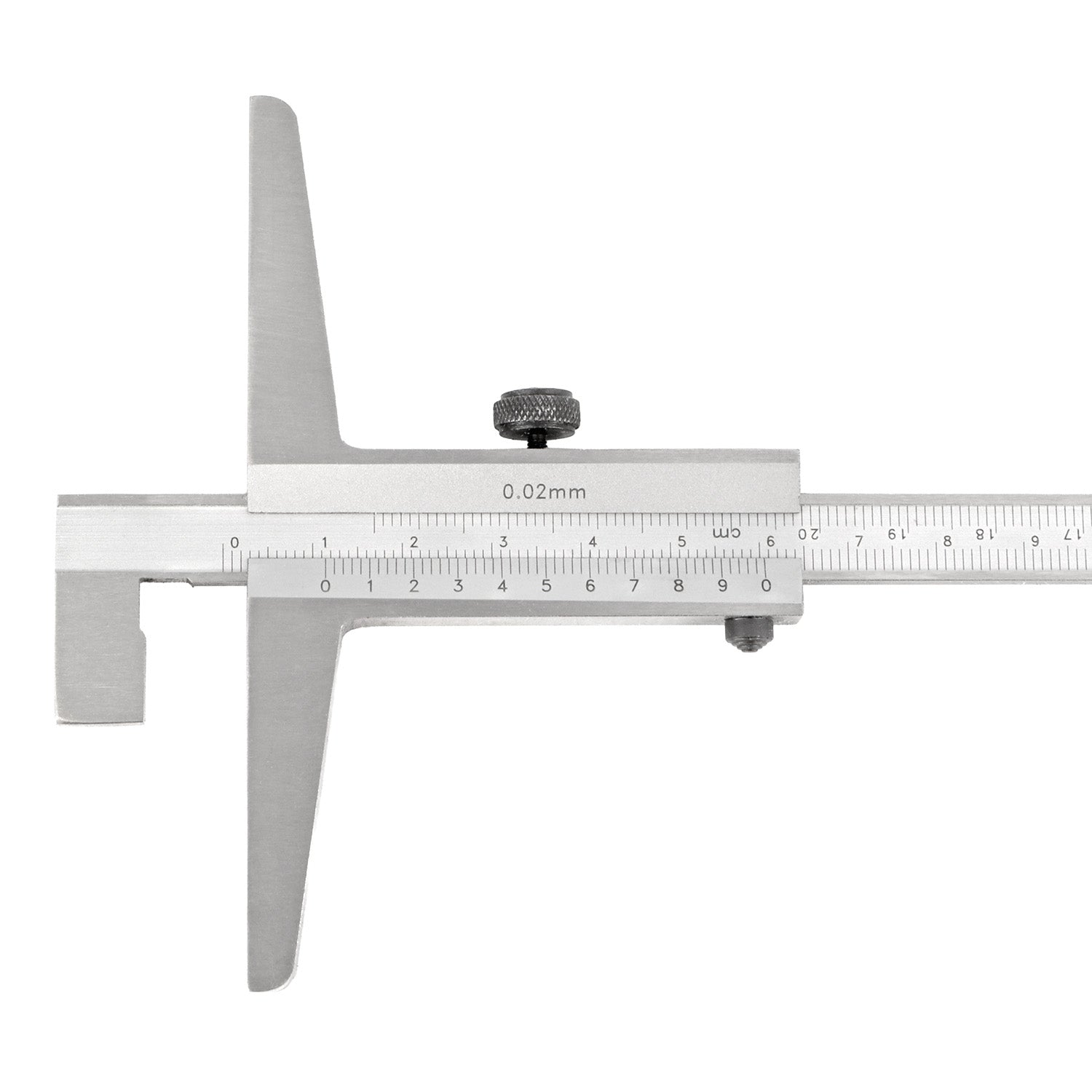

Description
- Accuracies according to DIN 862
- stainless steel
- Reading parts matt chrome-plated
- locking screw

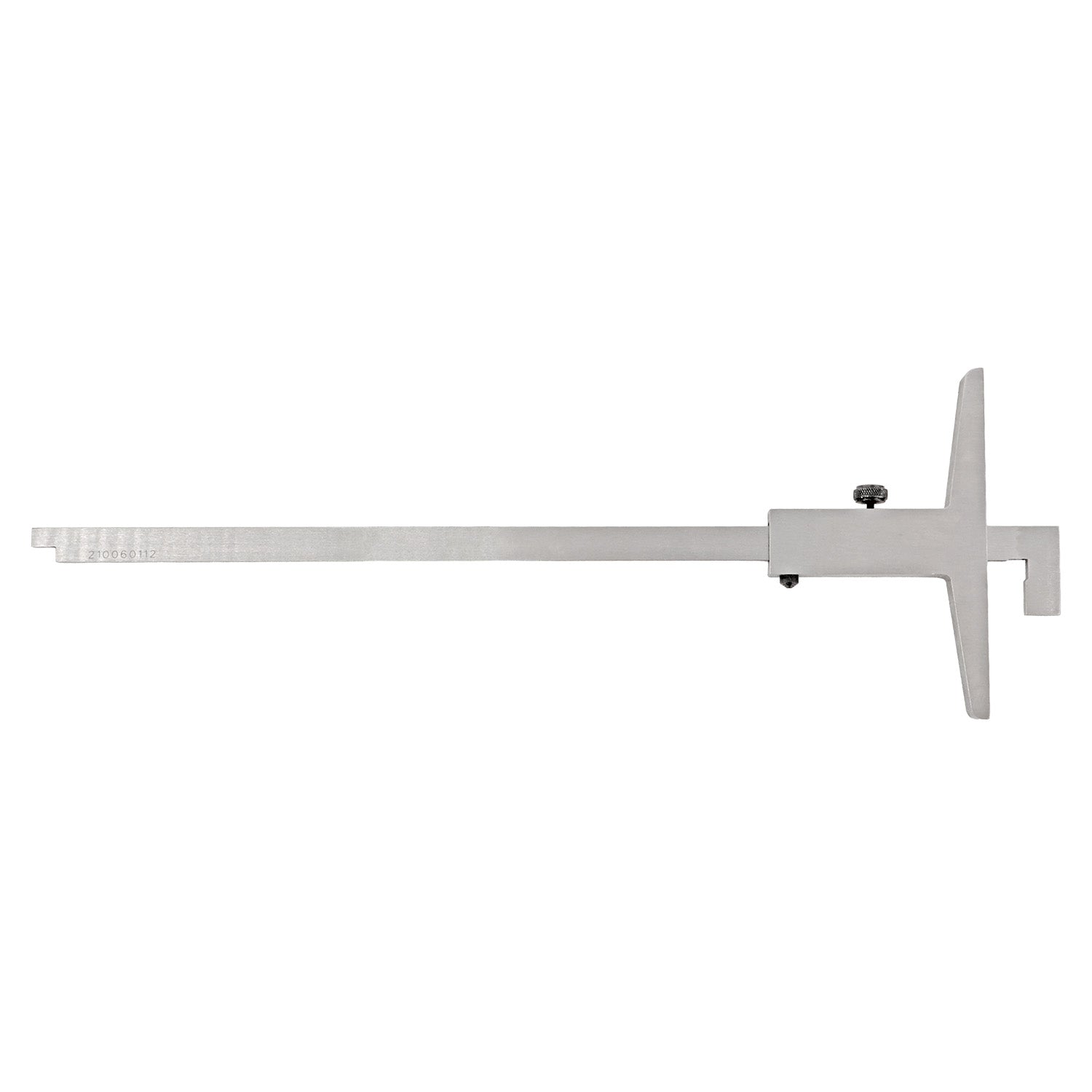

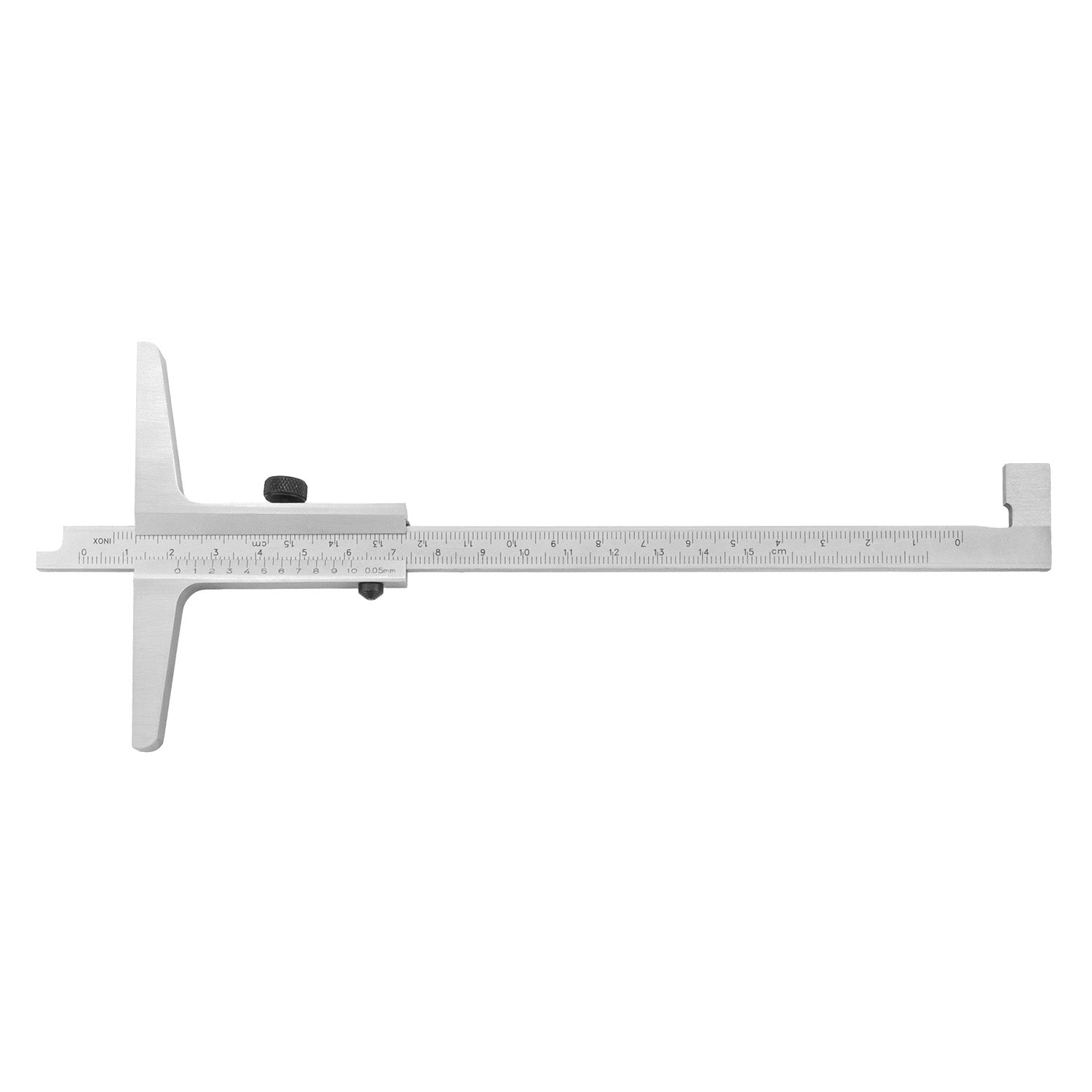

- Rail can be swapped

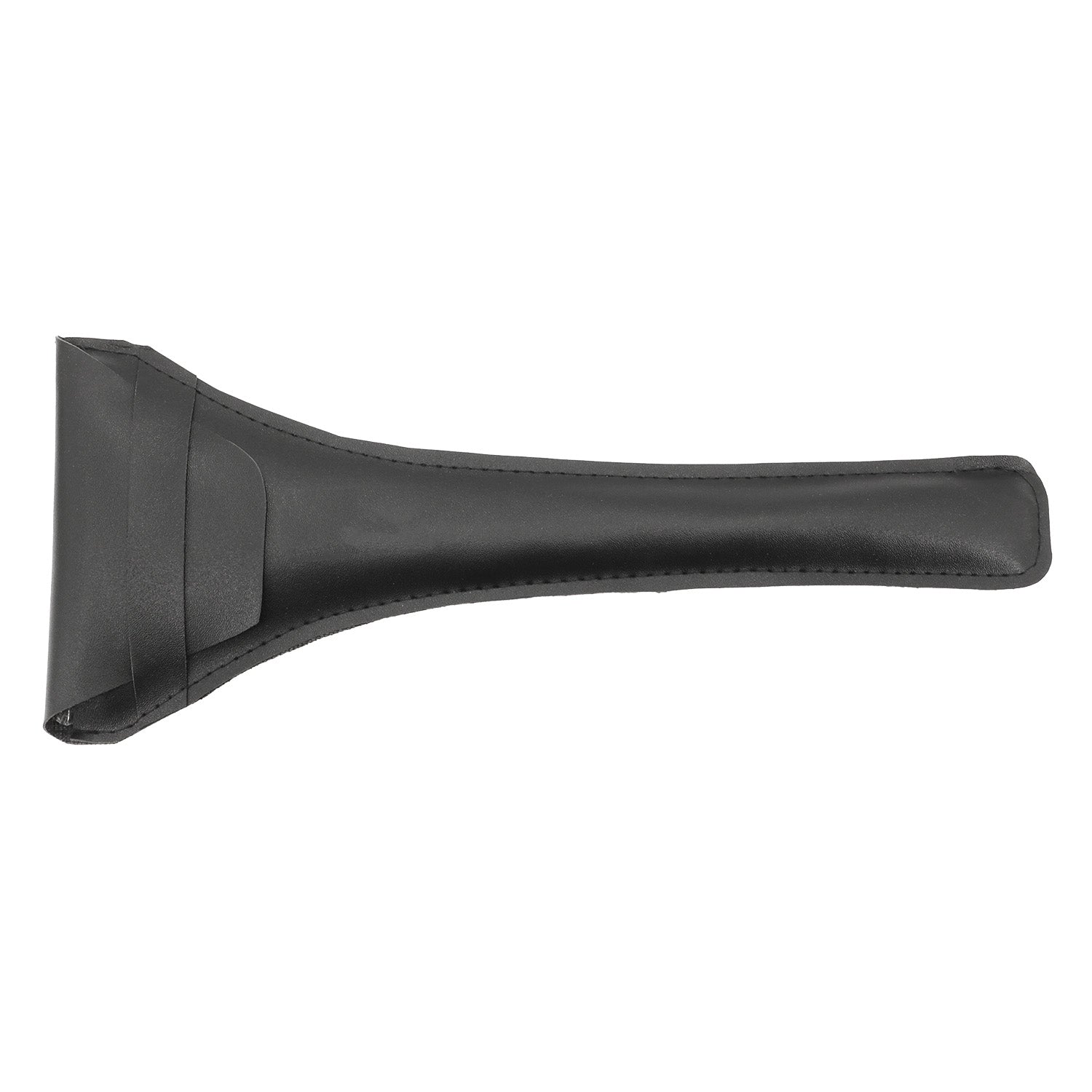

- incl. case
| Measuring range (mm) | Reading (mm) | Length of measuring bridge (mm) | Cross-section of measuring rail (mm) | Hook length (mm) | Hook width (mm) |
| 150 | 0.05 | 100 | 10 x 3.5 | 15 | 10 |
| 200 | 0.05 | 100 | 10 x 3.5 | 20 | 10 |
| 300 | 0.05 | 150 | 12 x 3.5 | 20 | 10 |
| 500 | 0.05 | 150 | 12 x 3.5 | 20 | 10 |
| 200 | 0.02 | 100 | 10 x 3.5 | 20 | 10 |
| 300 | 0.02 | 150 | 12 x 3.5 | 20 | 10 |
