Description
- Resolution 0.01 mm
- Switching mm/inch
- Absolute or incremental measurement

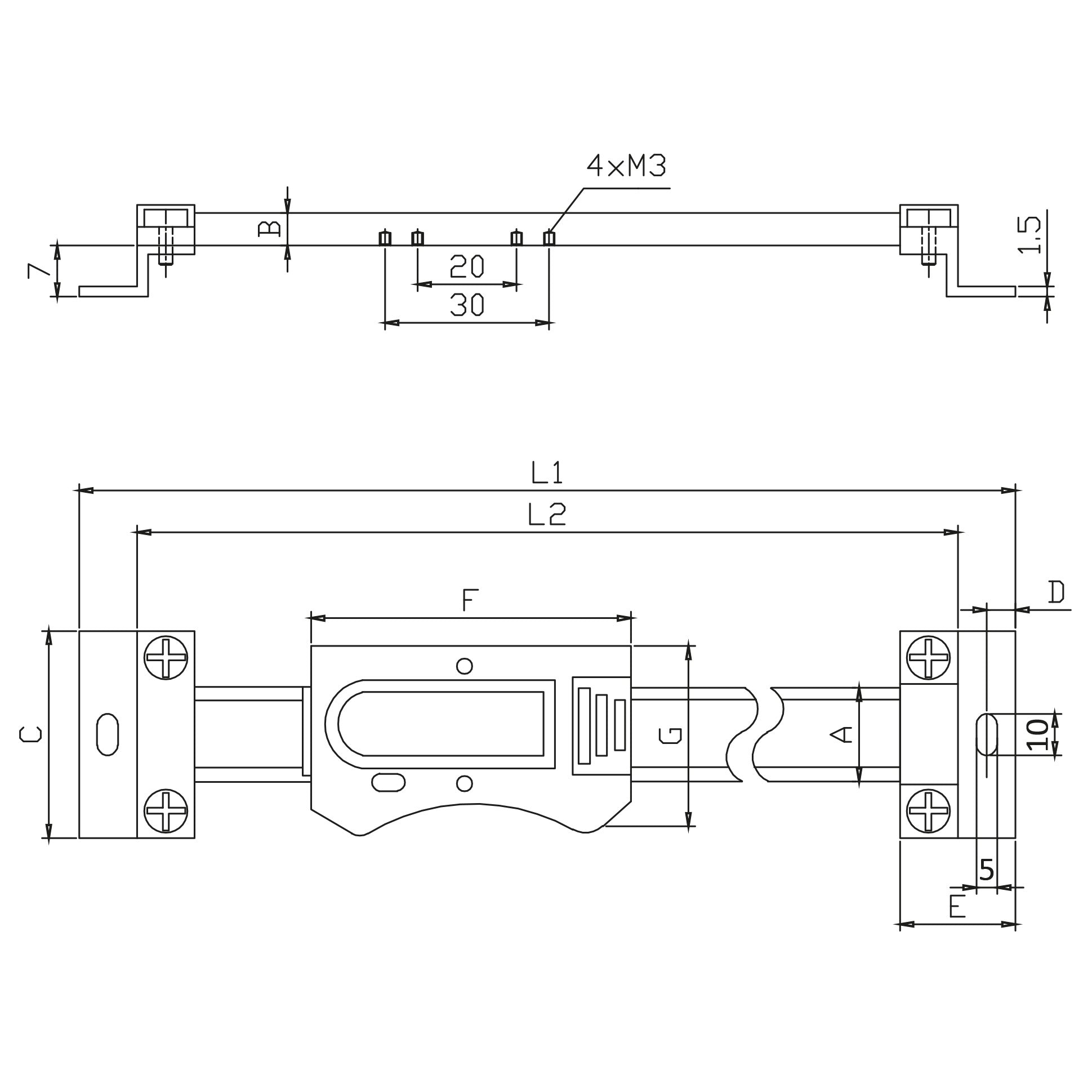

| Measuring range (mm) | A (mm) | Width (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L1 (mm) | L2 (mm) |
| 100 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 209 | 185 |
| 150 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 259 | 235 |
| 200 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 310 | 286 |
| 300 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 444 | 420 |
| 450 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | - | - |
