Description

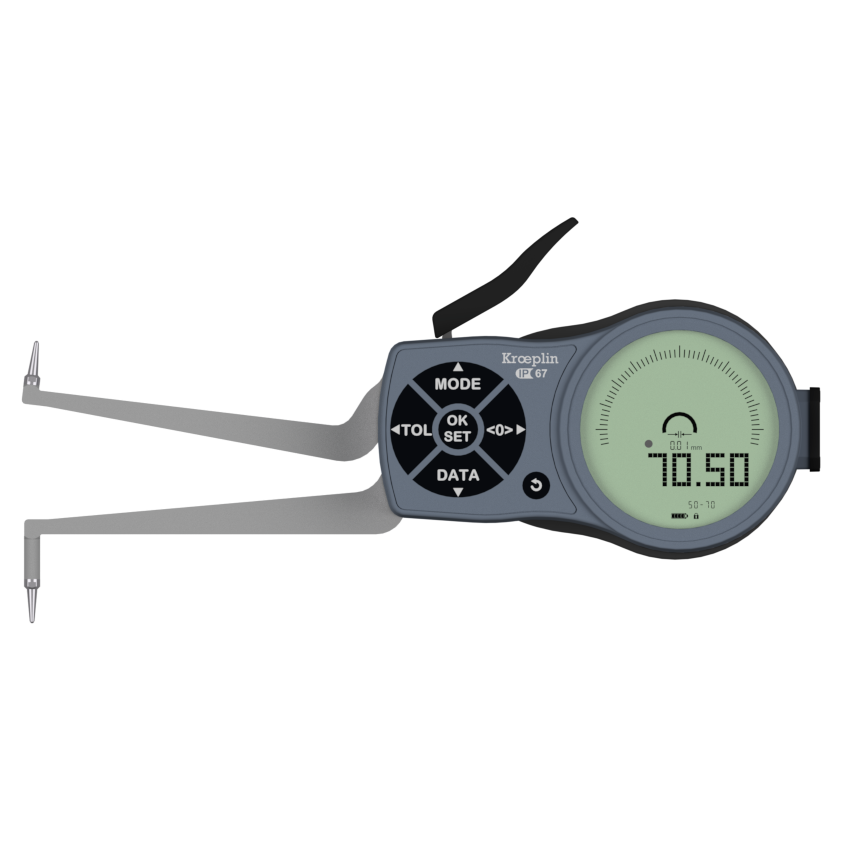

Digital internal measuring device for determining internal dimensions, especially groove diameters.
- Digital step value switchable: 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm
- Protection class IP67
- Power supply: 2x LR03 (AAA)
- Delivery in a wooden box
| Measuring range (Meb) | Item No. Kroeplin | Reading | L (mm) | Measuring contact form | Hf/Hb (mm) |
|---|---|---|---|---|---|

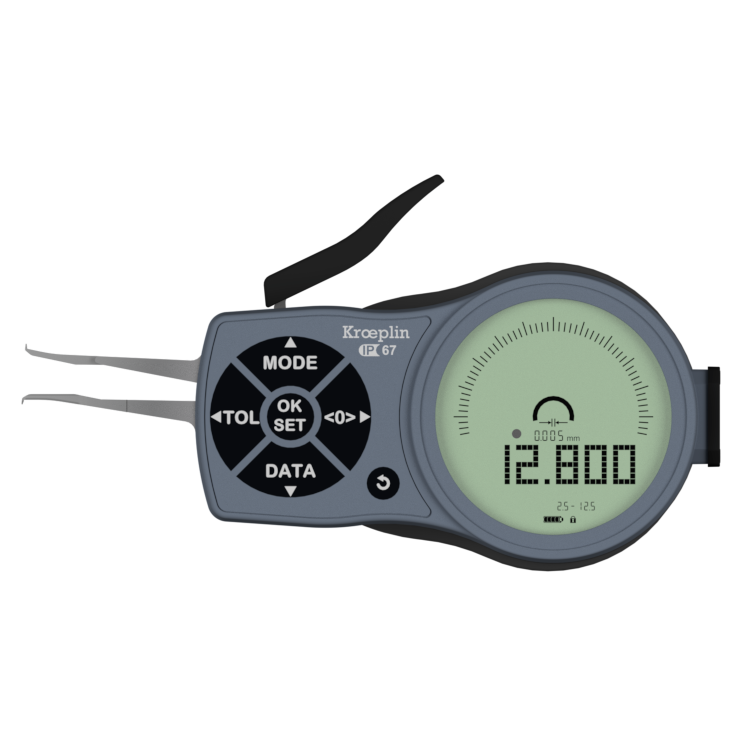

| 2.5-12.5 mm | L102 | 0.001 mm | 12 | Cutting edge R 0.1 mm | 0.9 |
| 5-15 mm | L105 | 0.001 mm | 35 | HM ball Ø 0.6 mm | 2.5 |

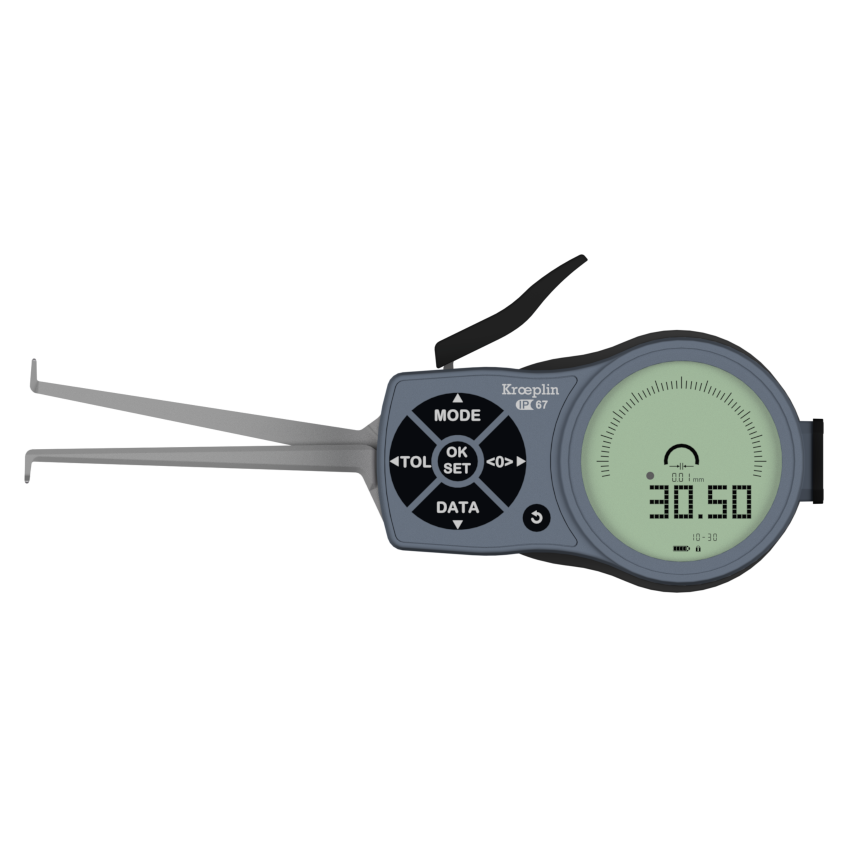

| 10-30 mm | L210 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 5.3 |

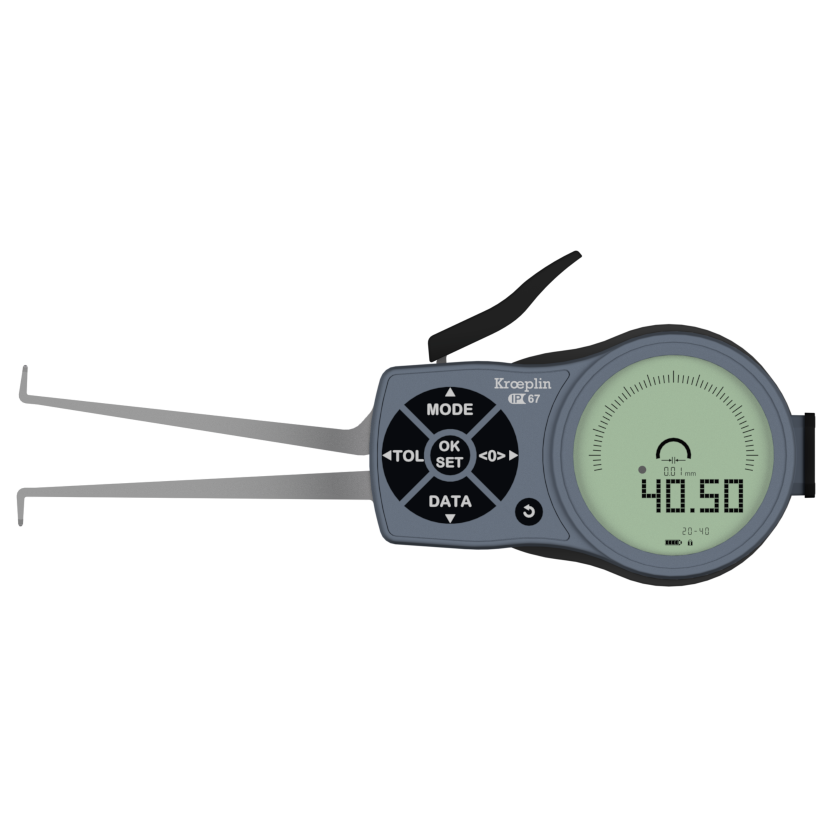

| 20-40 mm | L220 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 7.3 |

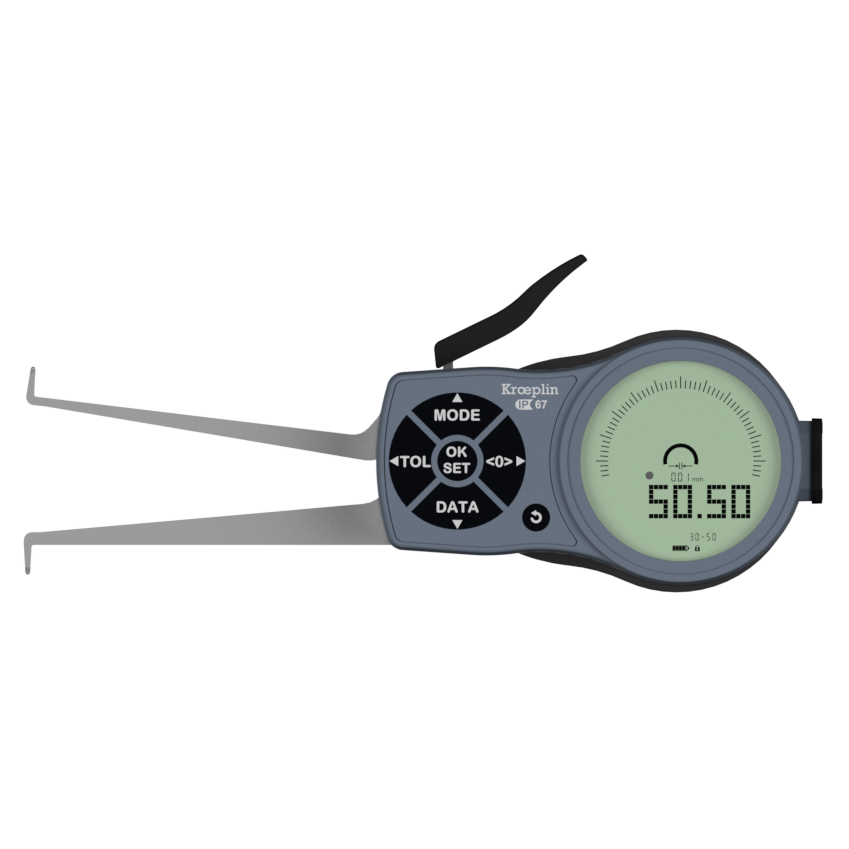

| 30-50 mm | L230 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 7.3 |

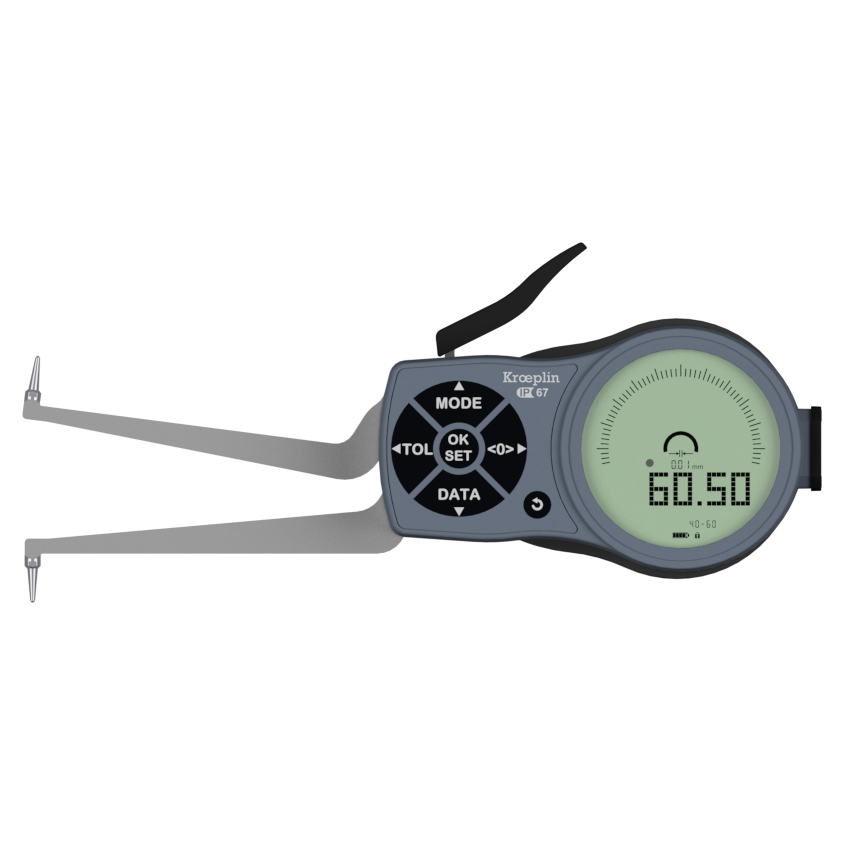

| 40-60 mm | L240 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 8.5 |
| 50-70 mm | L250 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 8.5 |

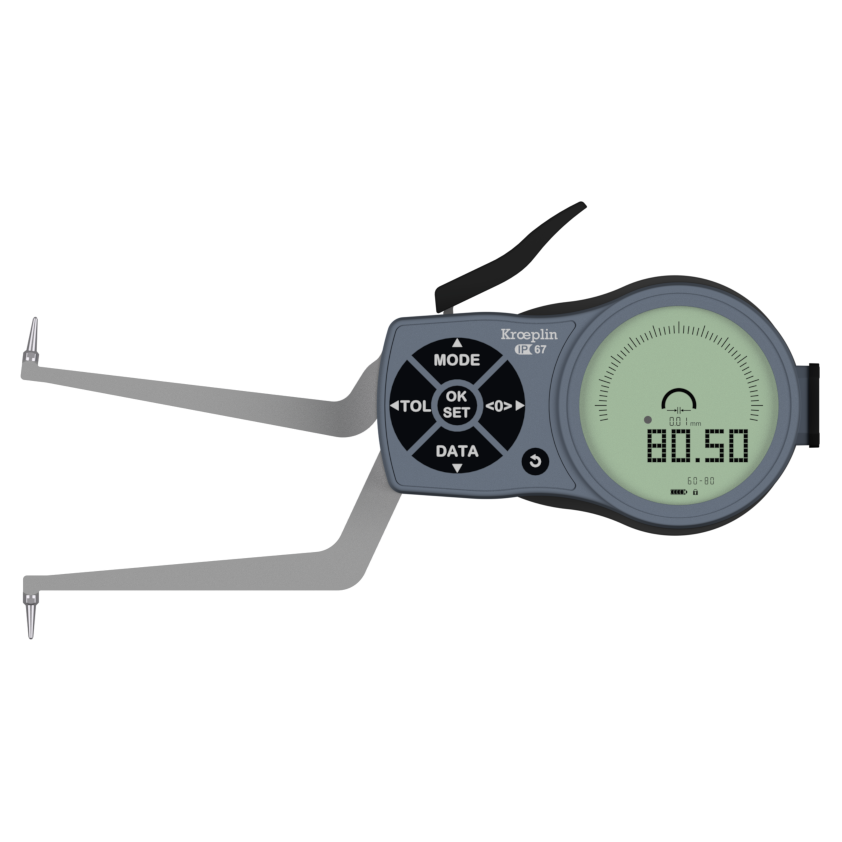

| 60-80 mm | L260 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 8.5 |

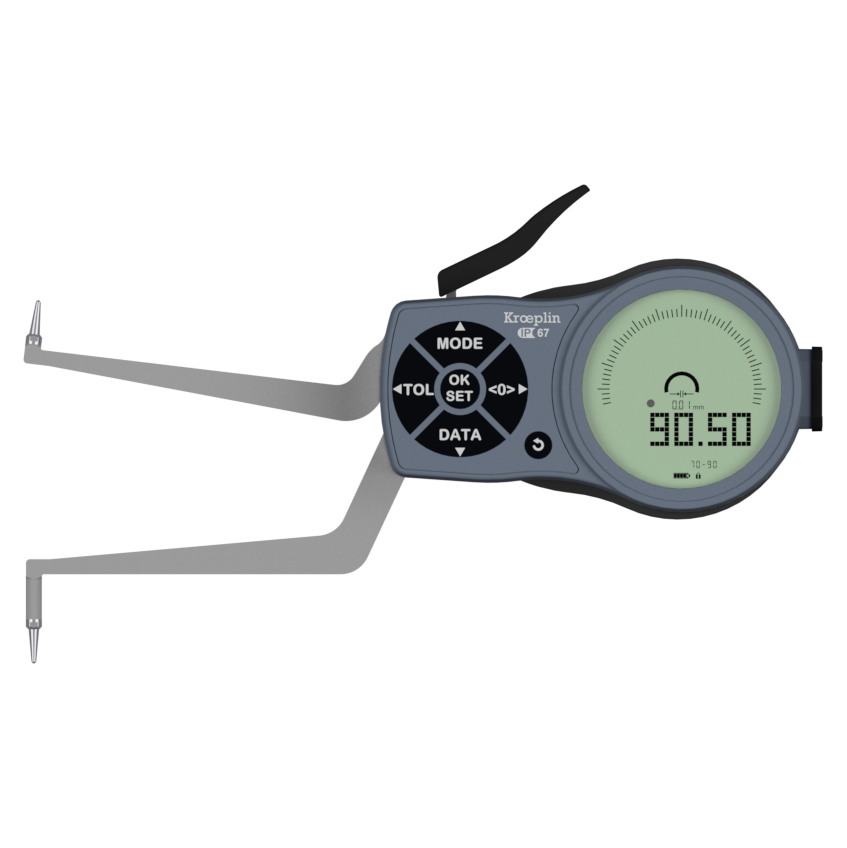

| 70-90 mm | L270 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 8.5 |

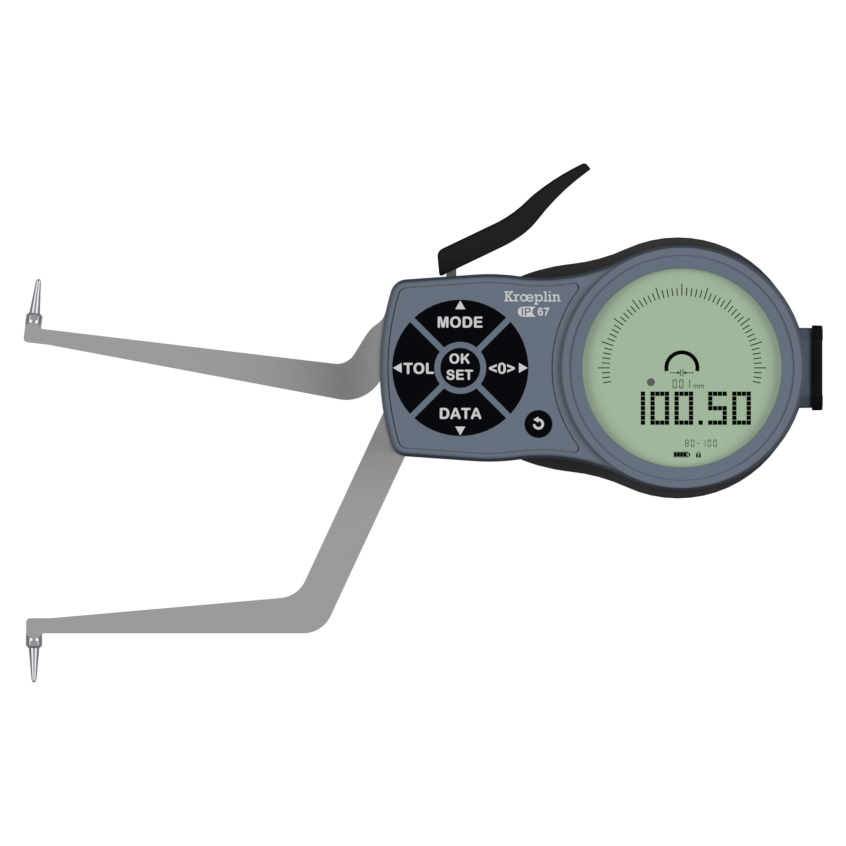

| 80-100 mm | L280 | 0.001 mm | 85 | HM ball Ø 1.0 mm | 8.5 |
Kroeplin measuring instruments stand for the highest quality and reliability. These quick-action gauges impress with their robust construction, ergonomic design, and optimized measuring force. They are ideal for use in quality assurance, production, and workshops.
