Description
Mechanical internal measuring device for determining internal dimensions, especially groove diameters.
- Protection class IP65
- Delivery in a wooden box

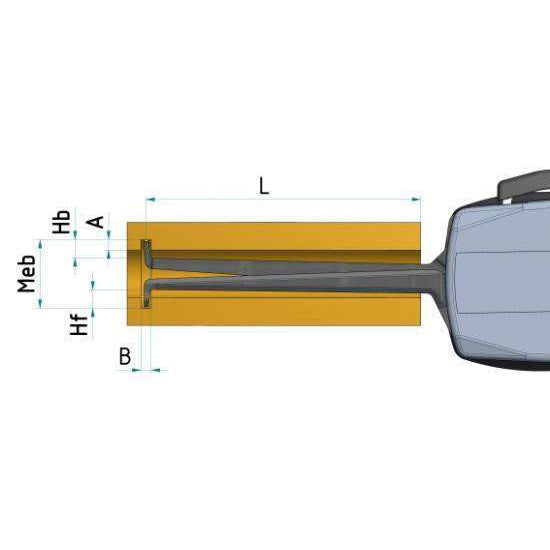

| Measuring range (Meb) | Item No. Kroeplin | Reading | L (mm) | Measuring contact form | Hf/Hb (mm) |
|---|---|---|---|---|---|

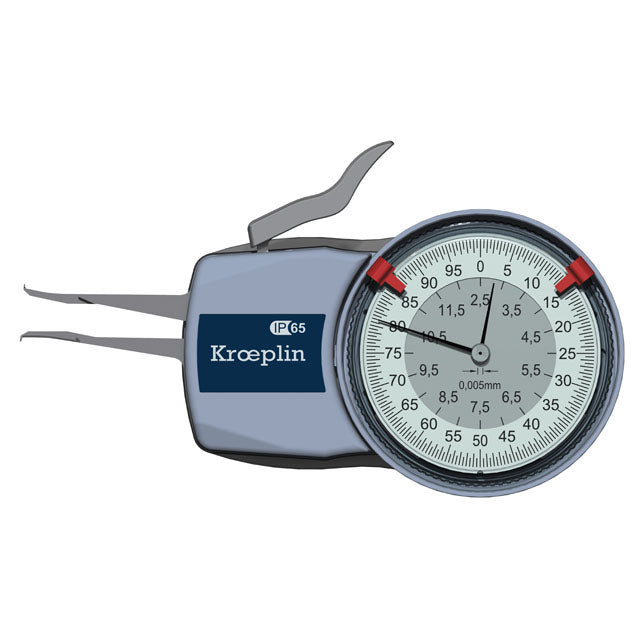

| 2.5-12.5 mm | H102 | 0.005 mm | 12 | Cutting edge R 0.1 mm | 0.9 |

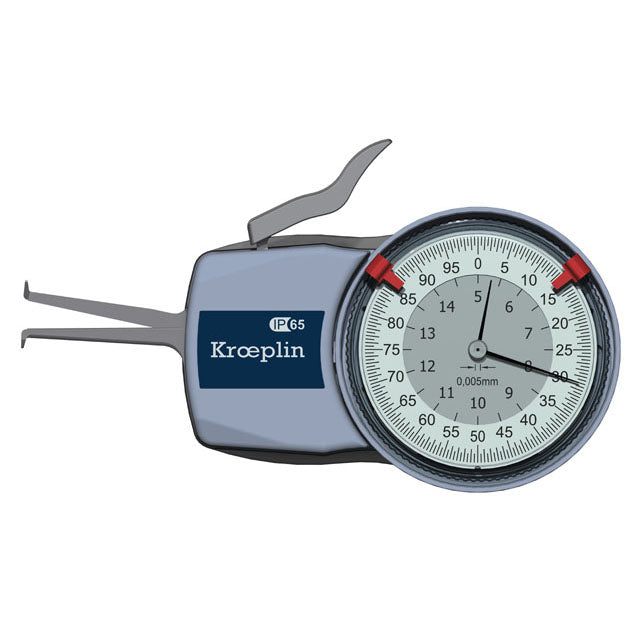

| 5-15 mm | H105 | 0.005 mm | 35 | HM ball Ø 0.6 mm | 2.5 |

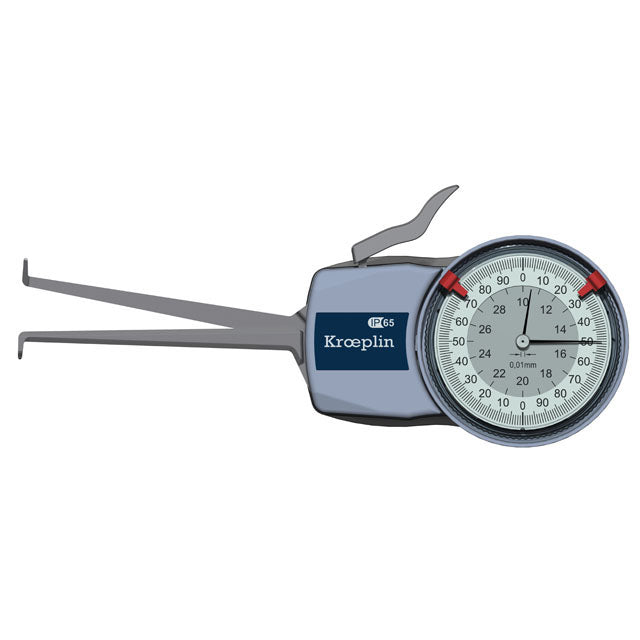

| 10-30 mm | H210 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 5.3 |

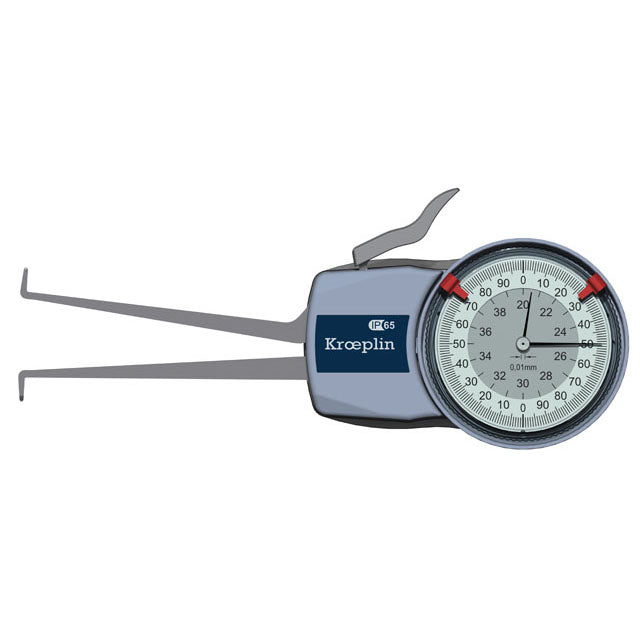

| 20-40 mm | H220 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 7.3 |

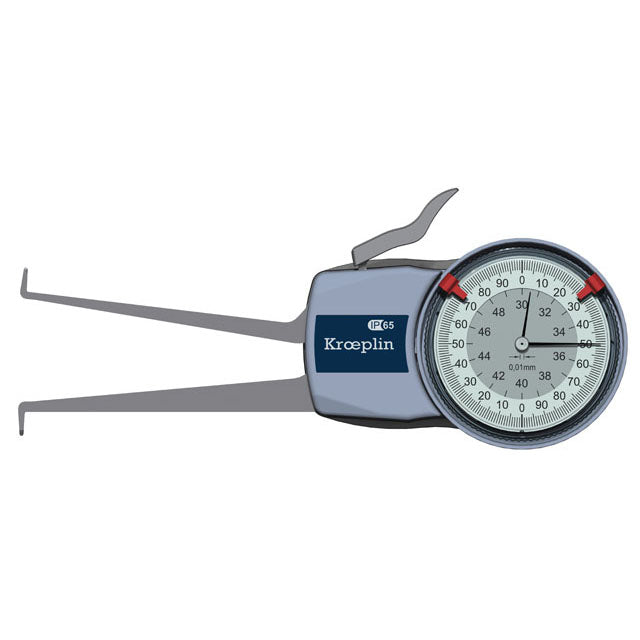

| 30-50 mm | H230 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 7.3 |

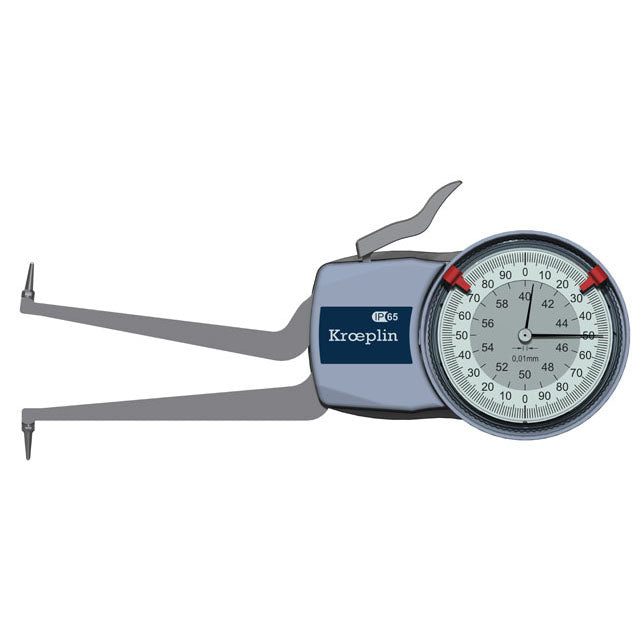

| 40-60 mm | H240 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 8.5 |

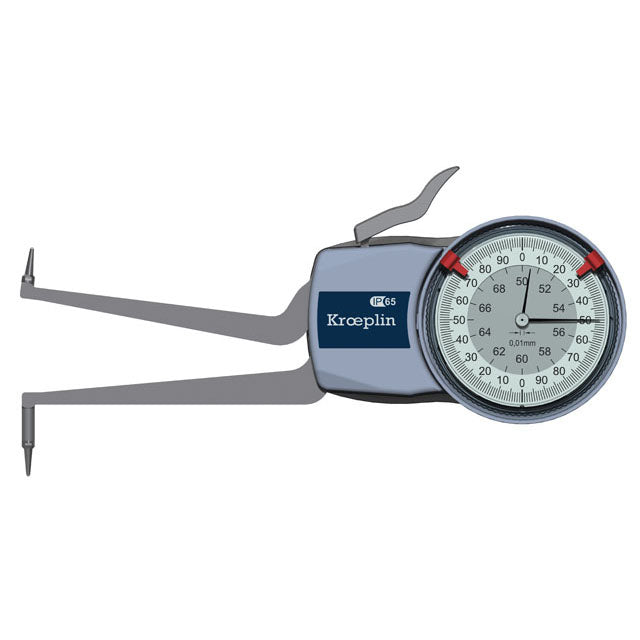

| 50-70 mm | H250 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 8.5 |

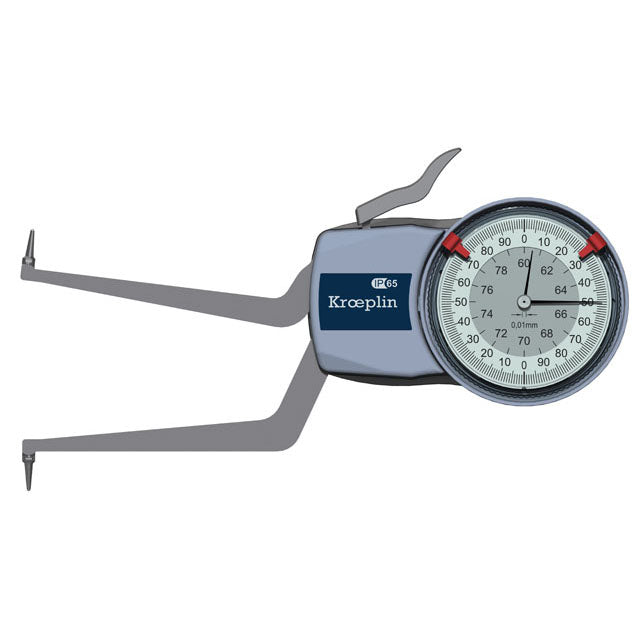

| 60-80 mm | H260 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 8.5 |

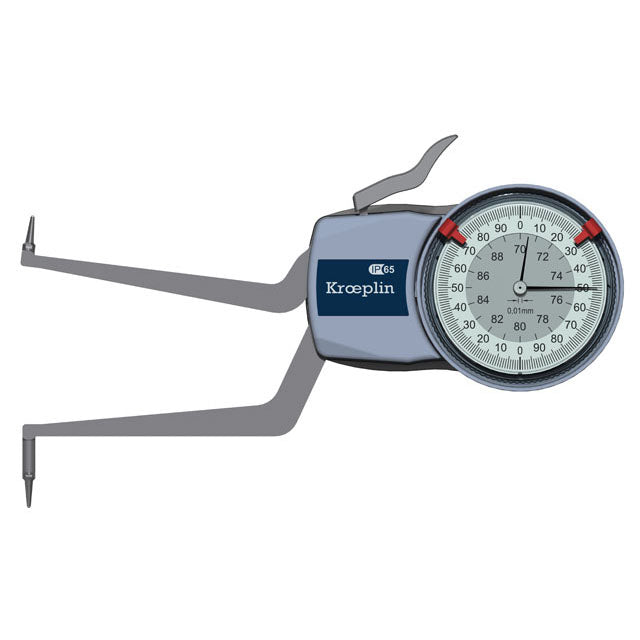

| 70-90 mm | H270 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 8.5 |

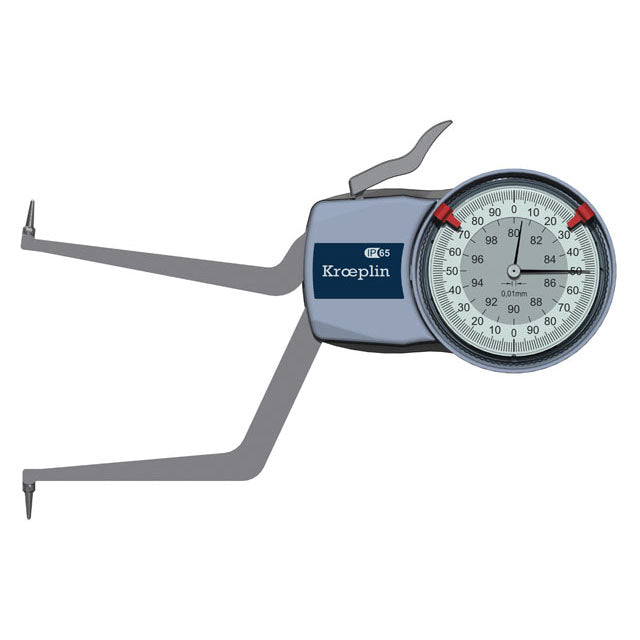

| 80-100 mm | H280 | 0.01 mm | 85 | HM ball Ø 1.0 mm | 8.5 |
Kroeplin measuring instruments stand for the highest quality and reliability. These quick-action gauges impress with their robust construction, ergonomic design, and optimized measuring force. They are ideal for use in quality assurance, production, and workshops.
